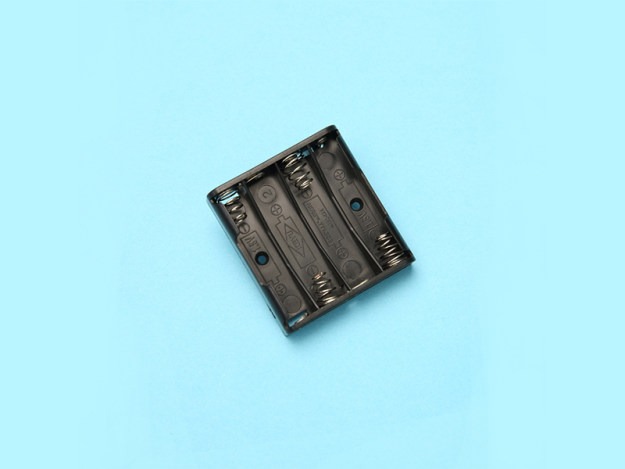

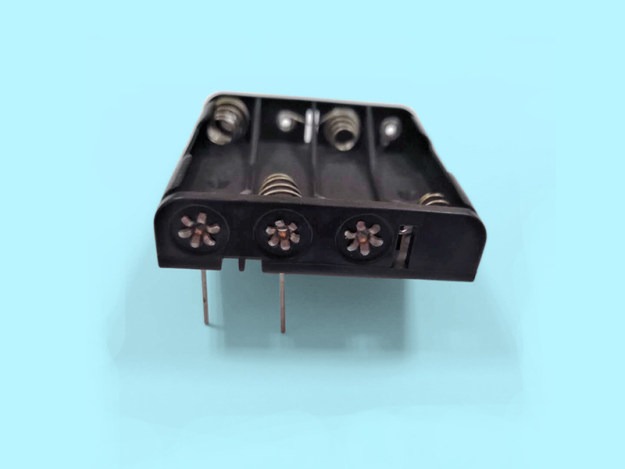

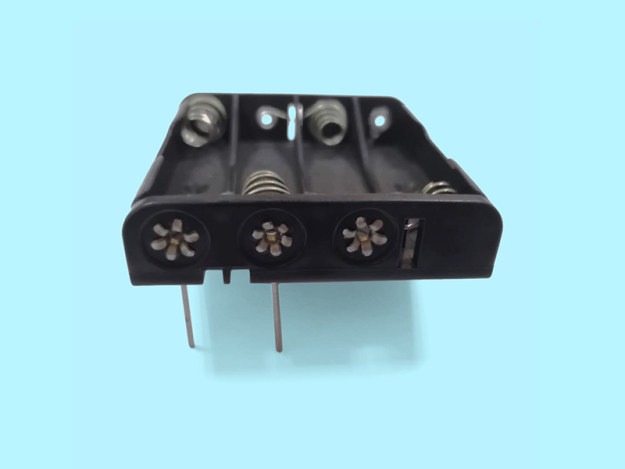

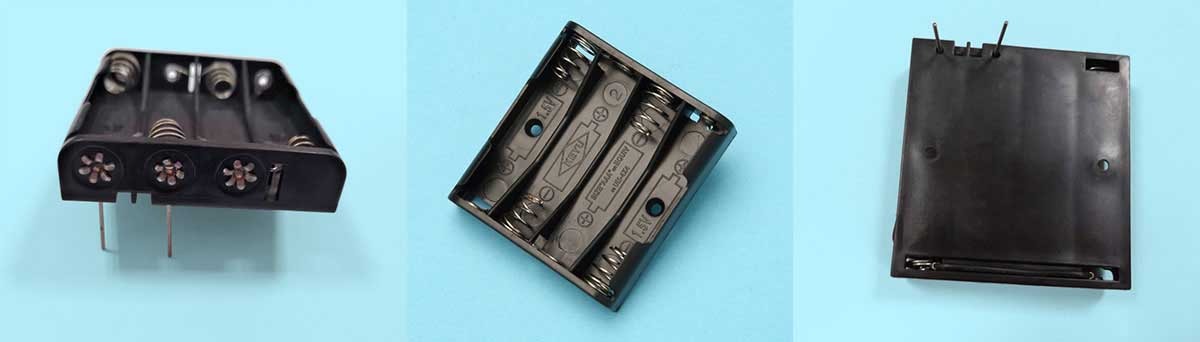

4 AAA battery holder with PC pin
The Pin Battery Holder can keep your batteries organized and protected. It is designed with pin for easy to connect. This 4 AAA battery holder with PC pin is perfect for the devices need a 6V external battery.
For product pricing, customization, or other inquiries:
This Pin Battery Holder can hold four AAA ordinary batteries or rechargeable batteries. This batteries can output 6V voltage, which can be used as power supply for MP4 player, radio, toys, alarm clock remote control, portable flashlight, etc. Keyu brand Pin Battery Holder is made of high quality materials, combined with advanced production equipment and strict quality control, for you to produce 100% good products.
Product Parameter (Specification)
|Product name||4 AAA battery holder with PC pin|
|Type||Rectangle battery holder|
|Material||PP Resin + Spring Steel Nickel plated|
|Number of cells||4 cells|
|Cell Arrangement||Side by side|
|Port||Shenzhen , Guangzhou|
Product Feature And Application
- This Pin Battery Holdercan be made to 6v battery output

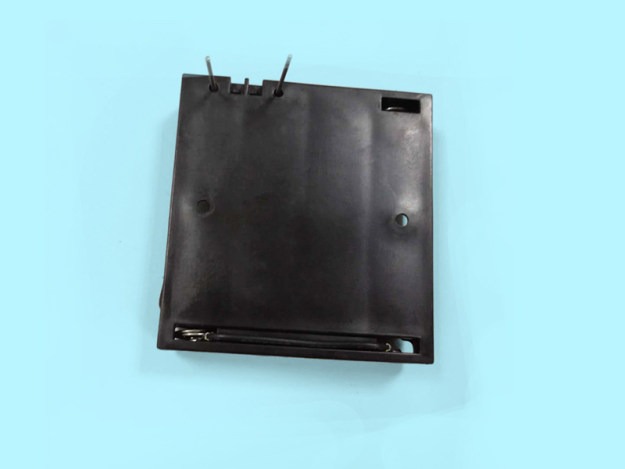

- The opposite side is the same as the picture shown.
- The perfect external power source for electronic DIY.
- Holdsfour AAA batteries.
- Easy install, convenient to use.
- High-quality plastic material.
- The perfect external power source for MP4 player, radio, toys, alarm clock remote control, portable flashlight, etc.
4 AAA Battery holder with PCB pin detail:
Battery Type: Cylindrical Pin Battery Holder
Brand Name: Keyu
Model Number: KY-31008-2-1
Place of Origin: Dongguan, China
Material: PP Resin + Music wire nickle plated Spring
Product name: 4 AAA battery holder with PC pin
Mounting Type: Custom
Operating Temperature: -10-100℃
Size: 53.5*50*12.5mm，PC pin length=14.9mm
Termination Style: pin
Nominal Voltage: 6V
All of our Pin Battery Holder with ISO9001, ROHS, Dun & Bradstreet certifications.
