Heavy Flat Washer

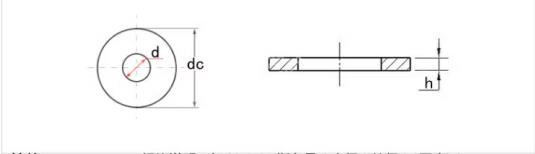

Specifications of Heavy Flat Washer
| Specification | d | dc | h |
| M3 | 3.2mm | 9mm | 1mm |
| M4 | 3.3mm | 12mm | 1.6mm |
| M5 | 5.3mm | 15mm | 2mm |
| M6 | 6.4mm | 17mm | 3mm |
| M8 | 8.4mm | 21mm | 4mm |
| M10 | 10.5mm | 25mm | 4mm |
| M12 | 13mm | 30mm | 6mm |
| M14 | 15mm | 36mm | 6mm |
| M16 | 17mm | 40mm | 6mm |
| M18 | 19mm | 44mm | 8mm |
| M20 | 21mm | 44mm | 8mm |
| M24 | 25mm | 50mm | 10mm |
Why Choose KENENG Heavy Flat Washer
KENENG has complete lathes, punches and thread rolling machines. Production and testing of parts can be carried out. We have excellent quality inspection capability: we can provide salt spray, film thickness and various inspection reports.
We have specialized designers and production personnel and complete production lines.
We produce a wide range of products at reasonable prices, and ensure product quality.
