Precision-machined tapered slope to match angled contact faces
Uniform hardness, stable load-bearing, reduces bolt bending stress
CNC machined, tight tolerance
Custom angles, dimensions and materials supported

Are You an OEM Manufacturer?

Yes

Description

Project Overview of Tapered Bevel Washers

Tapered bevel washers are designed for uneven, angled mounting surfaces, correcting angular misalignment for bolted joints. Widely used in machinery, construction, automotive and equipment assembly to prevent bolt bending and distribute load evenly.

Materials

Carbon Steel (C45 / 1045)
Stainless Steel 304 / 316
Aluminum Alloy
Alloy Steel (upon request)

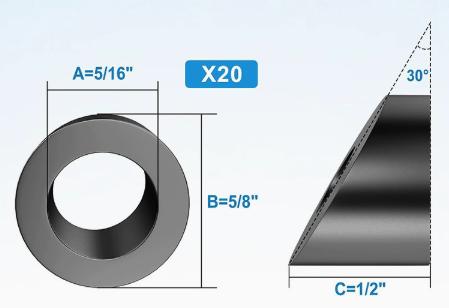

Size Range

Inner diameter: 3mm ~ 30mm
Outer diameter: 8mm ~ 50mm
Thickness & bevel angle: Customized according to drawings (common angle: 4°, 5°, 8°, 10°)
Standard & custom non-standard sizes available

Surface Finishes

Carbon steel: Black oxide / Zinc plating / Hot-dip galvanized / Phosphating
Stainless steel: Passivation, polishing
Aluminum: Anodizing (natural/black)
Custom coating on request

Packing

Inner plastic bag + export carton, pallet packaging for bulk orders.

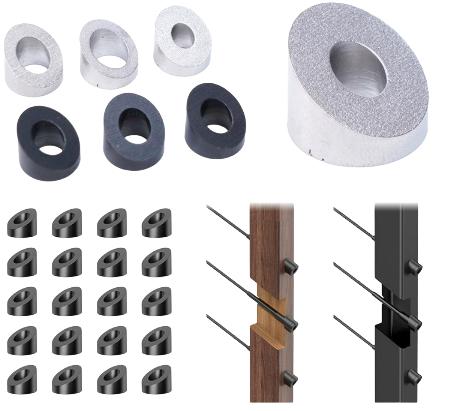

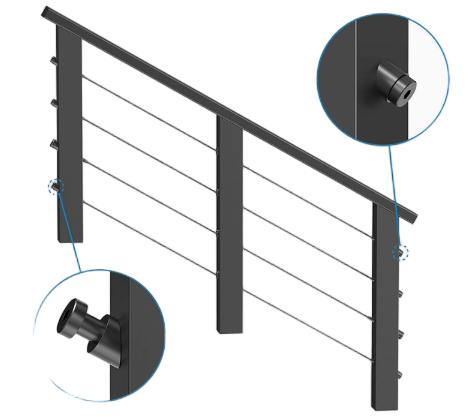

Applications of Tapered Bevel Washers

The tapered bevel washer is widely used in heavy machinery, construction steel connection, truck chassis, agricultural equipment, rail fittings, industrial fixture assembly.
