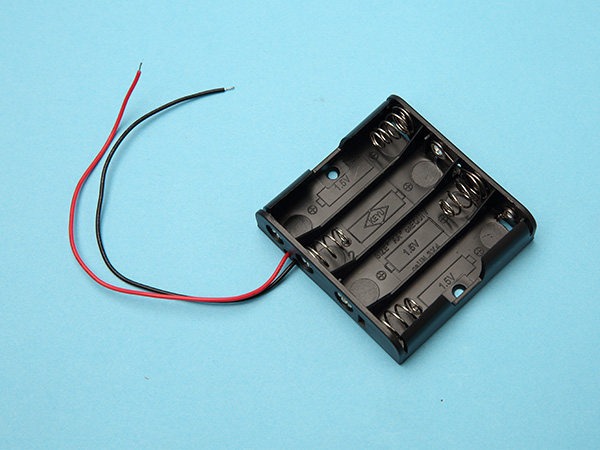

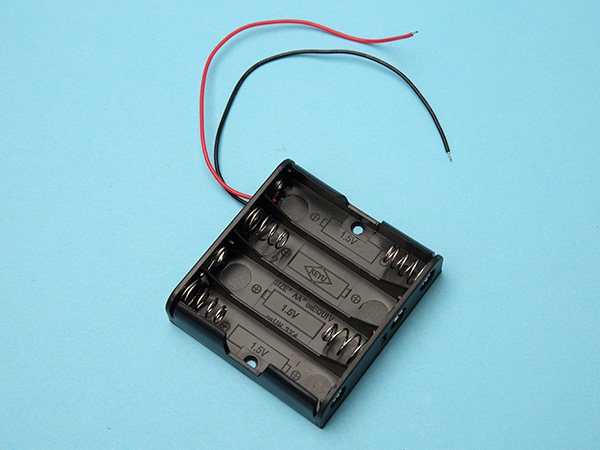

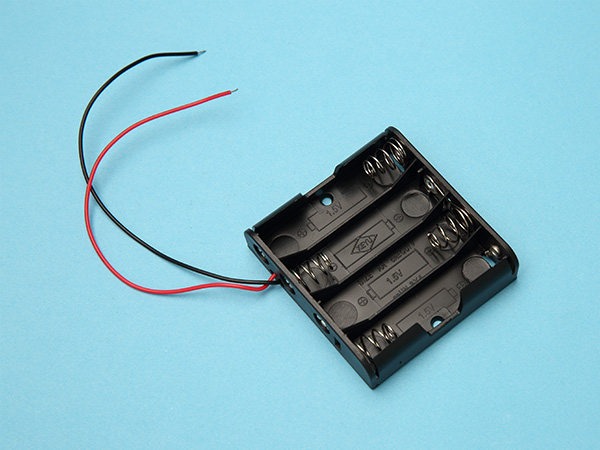

4xAA battery holder  (with wire)

  • 4xAA battery holder (with wire) can hold four AA ordinary batteries or rechargeable batteries. Ordinary batteries can output 6.0V voltage, while rechargeable batteries can output 4.8V voltage, which can be used as power supply for SCM system, Arduino system, other intelligent cars, tracking cars, etc.
  • Keyu brand 4xAA battery holder is made of high quality materials, combined with advanced production equipment and strict quality control, for you to produce 100% good products.

Contact US

For product pricing, customization, or other inquiries:

Product Parameter (Specification)

Product name4xAA battery holder  (with wire)
TypeRectangle battery holder
Model No.KY-32006-1-1
MaterialPP + Spring Steel Nickel plated
Number of cells4 cells
Cell ArrangementSide by side
PortShenzhen , Guangzhou

Product Feature And Application

  1. This 4XAA battery holdercan be make to 6.0v battery output.

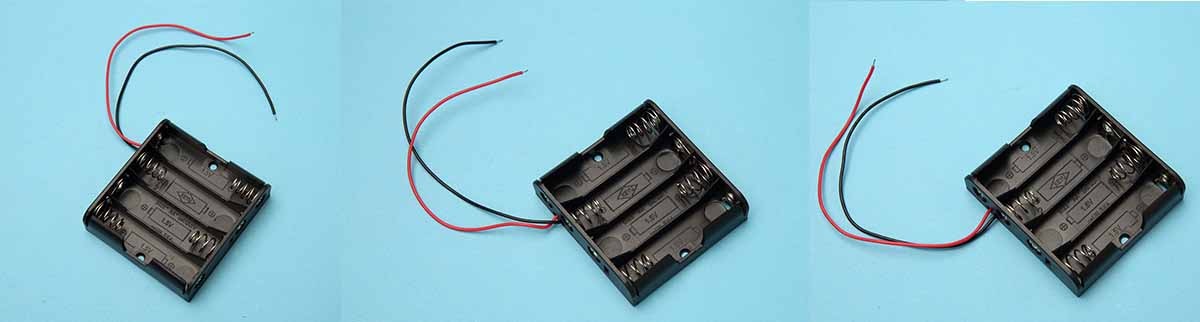

  2. The opposite side is the same as the picture shown.
  3. The perfect external power source for electronic DIY.
  4. Holds four AA batteries.
  5. Easy install, convenient to use.
  6. High-quality plastic material.
  7. The perfect external power source for single-chip microcomputer system, Arduino system, 2WD mobile robot, track-seeking car, RP5 tracked vehicle.

Product Details

4XAA battery holder (with wire) detail:

Battery Type: Rectangle battery holder

Place of Origin: Dongguan, China

Color: Black


Holder: Polypropylene Resin; Wire: 26 AWG 1007 UL/CSA Approved; Spring:0.7MM music wire nickel plated

Product name: 4XAA battery holder with wire , inclined hole

Style: Holder (open)

Mounting Type: Custom

Operating Temperature: -10-100℃

Size: 58*62.9*15.4mm, wire length=150mm

Termination Style: Wire (black and red)

Nominal Voltage: 6.0V

Product Qualification

All of our 6xAA battery holder with rivet with ISO9001, ROHS, Dun & Bradstreet certifications.
