5 Axis CNC Machining Services: Everything You Need to Know Before Ordering

In the realm of modern high-precision manufacturing, balancing tight tolerances, complex geometries, and production costs remains a core challenge for project managers and procurement engineers.

Traditional 3-axis or 4-axis machining often requires multiple setups when handling polyhedrons, deep cavities, or freeform surfaces. This not only prolongs lead times but also introduces micron-level cumulative errors due to manual repositioning. To break through these manufacturing bottlenecks, 5-Axis CNC Machining Services have become the gold standard for aerospace, medical devices, and high-end industrial component manufacturing.

In this post, we will provide a deep dive into the core technical advantages of 5-axis CNC machining, how it can help you reduce costs and increase efficiency, and the key elements to consider when designing 5-axis machined parts.

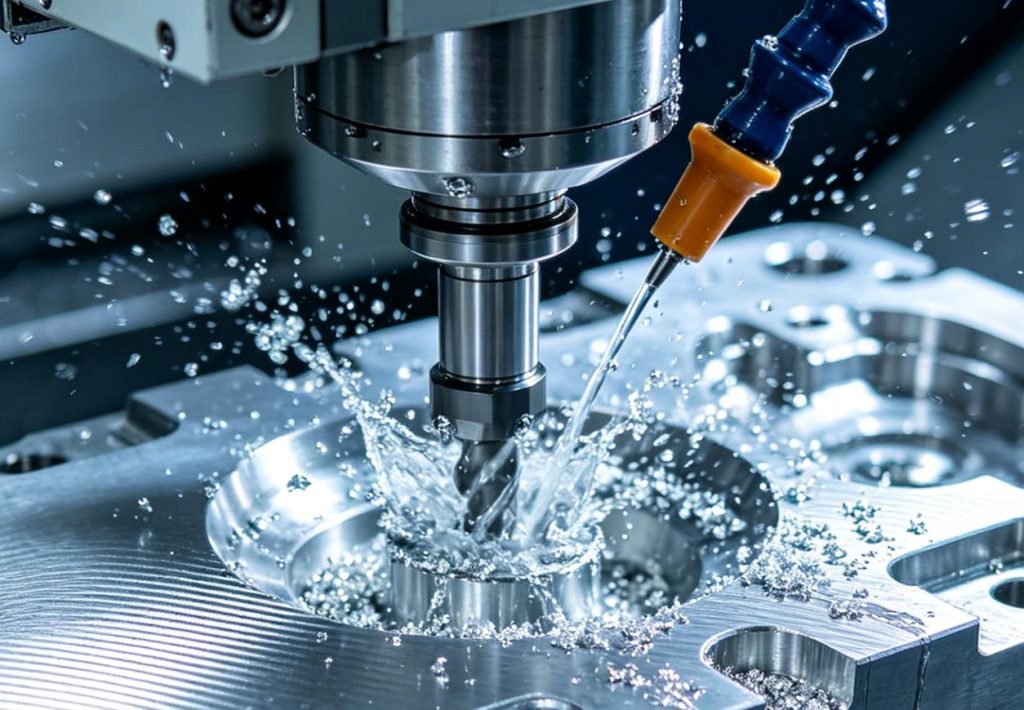

What is 5-Axis CNC Machining and How Does It Work?

3-Axis CNC machining involves moving along three axes, which are linear: X, Y, and Z. In contrast, 5-Axis CNC machining involves the use of two additional axes of movement, which are rotational, selected from the A, B, and C rotational axes. The two additional rotational axes can be either located at the worktable or the spindle head.

The advantage of this machining process is that it allows the cutting tool to move around the workpiece freely from all sides and angles, making it possible to finish 5-sided machining in one setup only.

Difference Between 3+2 Axis (Positioning) and Simultaneous 5-Axis

It is essential to know the difference between these two kinds of machining when choosing a 5-axis CNC machining service because of the following reasons:

3+2 Axis Machining (Positioning 5-Axis): Also known as positional 5-axis. The machine utilizes the 4th and 5th rotational axes to lock the workpiece at a specific angle, and then the X, Y, and Z linear axes perform the cutting while the rotational axes remain stationary. This is ideal for parts with features on multiple sides but without complex, freeform surfaces.

Simultaneous 5-Axis Machining: During the machining process, the X, Y, and Z axes, along with the two rotational axes, move simultaneously. This keeps the cutting edge of the tool at the optimal cutting angle relative to the workpiece surface at all times. This is the only viable solution for machining impellers, turbine blades, and medical bionic joints.

Why are More Companies Choosing 5-Axis CNC Machining Services?

When faced with complex, high-precision manufacturing tasks, traditional 3-axis/4-axis machining increasingly shows its limitations. Modern enterprises are turning to 5-axis CNC machining services primarily due to the following five benefits:

1. Superior Machining Accuracy

5-axis CNC machining minimizes the need for repeated setups and repositioning, effectively eliminating cumulative alignment errors. Because the tool consistently maintains the optimal cutting angle, stable machining accuracy is maintained even for intricate parts. For sectors like aerospace, medical devices, and precision instrumentation, 5-axis machining routinely achieves tolerances of ±0.005 mm or tighter, meeting the most stringent high-precision demands.

2. Complex Machining in a Single Setup

The conventional 3-axis machining process usually involves rotating the component and changing its position several times. In comparison, 5-axis machining allows performing multi-faceted operations in one setup which leads to reduced setup time and human errors. Such advantages make 5-axis machining more efficient and ensure consistency in dimensions of the machined parts.

3. Exceptional Surface Quality

In 5-axis machining, the tool position changes dynamically according to the profile of the workpiece. Therefore, the tool is maintained at its optimal position during the cutting process, and hence there is minimal formation of tool marks and vibration. The surface quality of the part is greatly improved because of this, thus making further polishing and deburring unnecessary.

4. Shorter Lead Time

Through reduction in setup time, checking of alignment, and manual interventions, 5-axis machining greatly increases the level of efficiency in the process. Whether the process is meant for rapid prototyping or small batch productions, it will minimize lead time.

5. Lower Overall Cost of Manufacturing

Although the hour cost of 5-axis machine is greater compared to 3-axis machine, the cost of manufacturing is normally lower due to low fixture costs, reduced labor costs, reduced scrap rate, and increased efficiency in machining. When it comes to complex and precise products, 5-axis machining offers great cost advantage along with guarantee of quality.

5-Axis vs. Traditional Machining: Why is the Overall Cost Lower?

Many procurement managers hesitate when seeing the higher hourly machine rate of 5-axis machining. However, when looking at the total project cost and lead time, 5-axis machining is often the more cost-effective choice.

The table below illustrates the data-driven comparison between 5-axis and traditional machining, such as 3 axis 4 axis vs 5 axis CNC:

Evaluation Dimension	Traditional 3-Axis / 4-Axis Machining	Simultaneous 5-Axis CNC Machining
Fixtures Required	Multiple custom fixtures must be designed and built for different stages.	A single standard fixture can often handle all-around machining.
Setups	Requires 3–5 or more manual flips and repositioning steps.	Completed in a Single Setup for the vast majority of operations.
Machining Tolerances	±0.05 mm (stackup errors caused by multiple setups).	Consistently maintained at the ±0.005 mm level.
Surface Finish	Fixed tool angle; prone to chatter in deep cavities, requiring post-polishing.	Excellent tool rigidity and constant cutting speed yield a premium surface finish.
Lead Time	More operations and longer queue times result in extended lead times.	Consolidated operations drastically shorten the total delivery cycle.

Core Application Industries and Materials of 5 Axis CNC Machining

Due to its ability to handle high precision and complex curved surfaces, simultaneous 5-axis machining is widely utilized in industries with extreme requirements for safety and precision:

1. Aerospace

Parts that fall under aerospace (engine blades, blisks, and aircraft structures), generally have highly complex and aerodynamic surfaces. The 5-axis machining process makes sure that these parts are perfectly geometrically shaped to bear high loads.

2. Medical Devices

Orthopedic implants, titanium bone screws, surgical tools, and many more are all within the scope of the medical device industry. It requires very precise machining because of the high hardness of medical-grade materials.

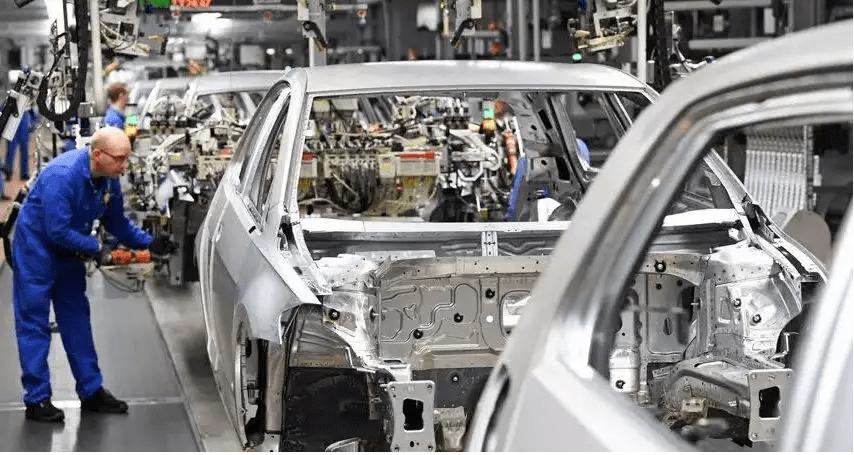

3. High-Performance Automotive & EV

Machining 5-axis is suitable for manufacturing electric vehicle motor housing, structural components, high performance automotive tuning parts, and turbochargers among other applications due to the efficiency and low consumption rate.

Common Materials Suitable for 5-Axis Machining

An experienced machine shop should have extensive experience cutting a wide variety of engineering materials, including but not limited to:

Aluminum Alloys: Aluminum 7075-T6, 6061-T6 (ideal for high-speed cutting and lightweight applications)

Titanium Alloys: Titanium Grade 5 (Ti-6Al-4V) (high hardness, difficult to machine; preferred for medical and aerospace)

Stainless Steel: SS316L, SS304, 17-4 PH (excellent corrosion resistance and strength)

Superalloys: Inconel, Nickel-based alloys, etc. (for extreme high-temperature environments)

Common Precision Components Made via 5-Axis CNC Machining

The following high-end components in aerospace, medical devices, and advanced industrial sectors rely heavily on 5-axis CNC machining.

Fluid & Power Core Components

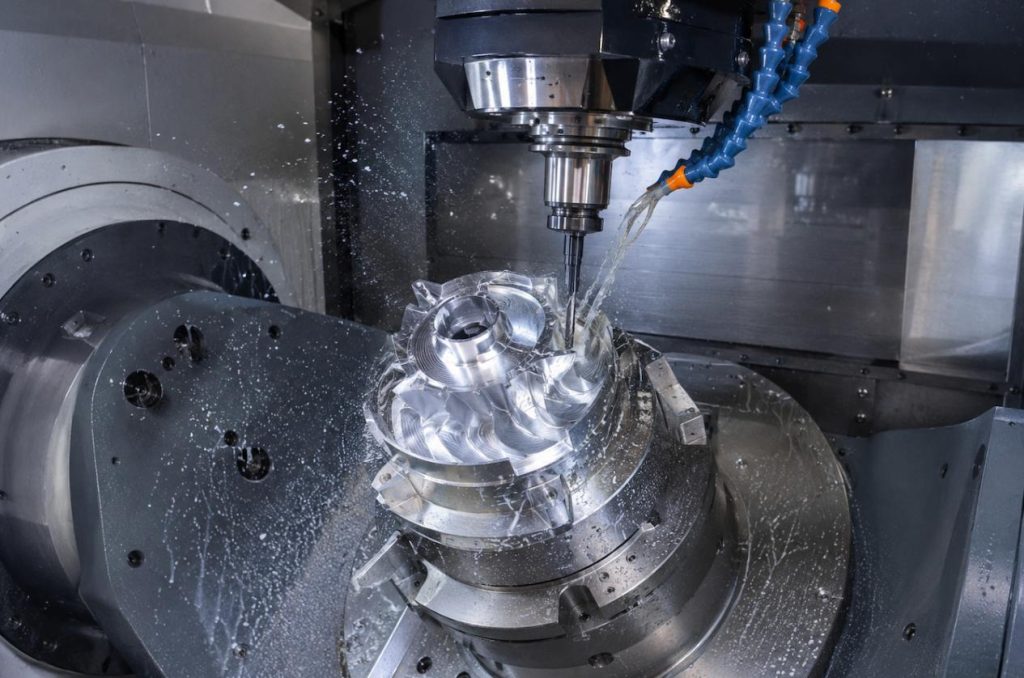

5-axis machining is the only viable method for manufacturing Impellers and Turbine Blades, flawlessly cutting complex, streamlined freeform surfaces. At the same time, high-strength Engine Components, intricate Pump Components, and high-pressure Valve Bodies rely heavily on 5-axis machining to guarantee strict coaxiality.

High-Precision Structural Parts & Molds

In the medical field, 5-axis machining is used to sculpt highly ergonomic Medical Implants (such as titanium joints). In electronics and industrial manufacturing, it efficiently processes Heat Sinks with deep cavities, complex Mold Inserts, Precision Housings, and various challenging Custom Mechanical Parts.

Precision Tolerances Achievable via 5-Axis CNC Machining

For high-precision manufacturing projects, tolerance control capability is a core indicator of a machine shop’s technical prowess:

Commercial/Industrial Grade Tolerances

For general mechanical structures and standard mating parts, 5-axis CNC machining can easily and consistently hold tolerances within ±0.02 mm, ensuring excellent dimensional consistency across production batches.

Ultra-High Precision Tolerances

For ultra-strict applications in aerospace and medical devices, by utilizing imported high-end simultaneous 5-axis equipment under strict temperature-controlled shop environments, our machining tolerances can reach the micron-level limit of ±0.005 mm.

Stringent Quality Assurance System

To guarantee 100% compliance with tolerance specifications, we utilize Coordinate Measuring Machines (CMM inspection) for spatial geometric dimension validation. All outbound products are accompanied by a detailed Quality Report, and the entire manufacturing workflow strictly adheres to the ISO quality management system to ensure premium-quality delivery.

Best 5-Axis CNC Machining Service: KENENG

As a leading global custom manufacturing partner, KENENG operates a modern 3,000-square-meter precision CNC machining facility. We bring together over 60 highly skilled professionals and deploy 16 high-performance CNC machining centers. We specialize in providing one-stop manufacturing solutions, including multi-axis milling, turning, EDM, and surface finishing for global clients.

With our robust factory capacity, we smoothly run over 300 machining projects a month, pushing monthly component output beyond 200,000 pieces. Whether you need rapid prototyping for a single piece or high-volume production of precision 5-axis parts, KENENG delivers high-quality, high-efficiency capacity support.

200+ Materials & Full Surface Finishing Options:

We have years of experience in machining more than 200 materials, such as aerospace grade aluminum, stainless steel, titanium alloys, PEEK, and many other types of metals and plastics. Our post-processing capabilities include sandblasting, anodizing, and electroplating for guaranteed assembly-readiness of your parts.

±0.0127 mm (±0.0005 inches) Ultra-Precision Tolerances:

Using high-tech equipment, our tolerances on critical features are always controlled at ±0.0127 mm. Our manufacturing process is fully equipped with coordinate measuring machines.

Free DFM Evaluation & Design Optimization:

Our experienced engineering team conducts a complimentary Design for Manufacturability (DFM) analysis for all of our 5-axis work. We assist you in optimizing toolpaths and avoiding design problems prior to manufacturing, greatly reducing your manufacturing expenses.

Lead Times as Fast as 3 Days & 24/7 Response:

Rapid Lead Times of Just 3 Days and 24/7 Customer Support: KENENG has a highly-efficient scheduling process which enables us to deliver high precision 5-axis components within as little as 3 business days. Additionally, we have 24/7 technical support available online at all times to answer your queries immediately.

Conclusion

With increasing levels of sophistication and complexity in the industry, there has been a rising need for higher precision and efficiency in manufacturing. In this regard, 5-axis CNC machining services are now a common manufacturing process within several industries due to the many advantages offered by this technology over conventional processes, including accuracy and cost-effectiveness.

If you are searching for an advanced 5-axis CNC machining service supplier, please get in touch with KENENG at once. Our engineering staff is available to offer professional technical consultation, competitive quotations, and one-stop machining services according to your drawings and requirements.
