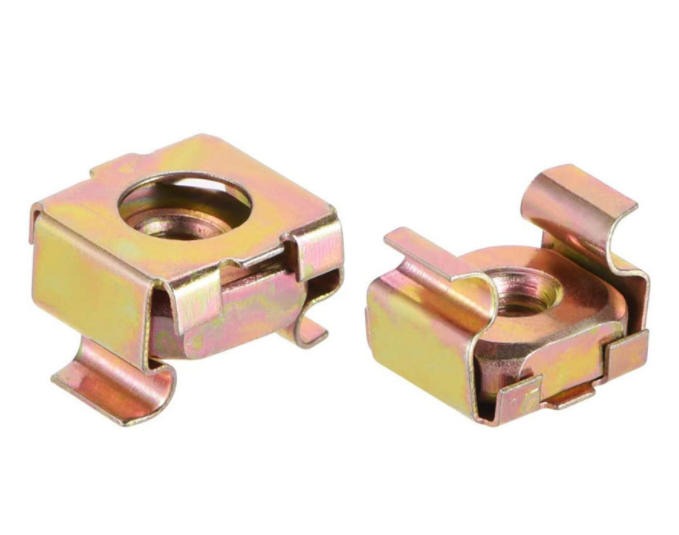

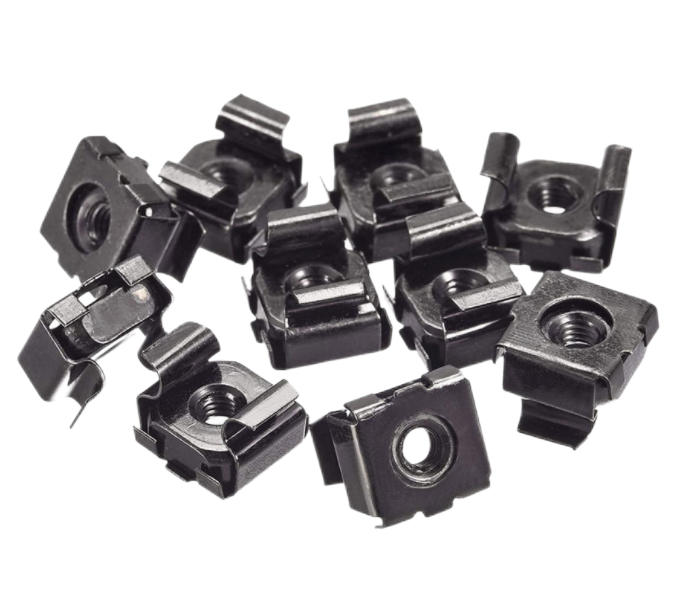

Custom Cage Nut
Specification of Cage Nut
| Unit: mm | ||||||||||
| Thread specification | Pitch | Nut opposite side | Nut thickness | The thickness of the iron sheet | Applicable plate thickness | Steel size | Shell material | Nut material | Surface treatment | |
| M5 | 0.8 | 11 | 4 | 0.35 | 7.3 | 0.8-2.8 | 9.5×9.5 | 65Mn | carbon steel | Galvanized |
| M6 | 1 | 11 | 4 | 0.35 | 6.8 | 0.8-2.8 | 9.5×9.5 | 65Mn | carbon steel | Galvanized |
| M4 | 0.7 | 11 | 4.5 | 0.4 | 8.2 | 0.8-2.8 | 9.5×9.5 | 65Mn | carbon steel | Galvanized |
| M5 | 0.8 | 11 | 4.5 | 0.4 | 8 | 0.8-2.8 | 9.5×9.5 | 65Mn | carbon steel | Galvanized |
| M6 | 1 | 11 | 4.5 | 0.4 | 7.6 | 0.8-2.8 | 9.5×9.5 | 65Mn | carbon steel | Galvanized |
| M8 | 1.25 | 14 | 5.5 | 0.5 | 15.2 | 1-3.5 | 12.5×12.5 | 65Mn | carbon steel | Galvanized |
| M10 | 1.5 | 14 | 5.5 | 0.5 | 13 | 1-3.5 | 12.5×12.5 | 65Mn | carbon steel | Galvanized |
| M12 | 1.75 | 17 | 8 | 0.6 | 27.6 | 1.5-4 | 15.5×15.5 | 65Mn | carbon steel | Galvanized |

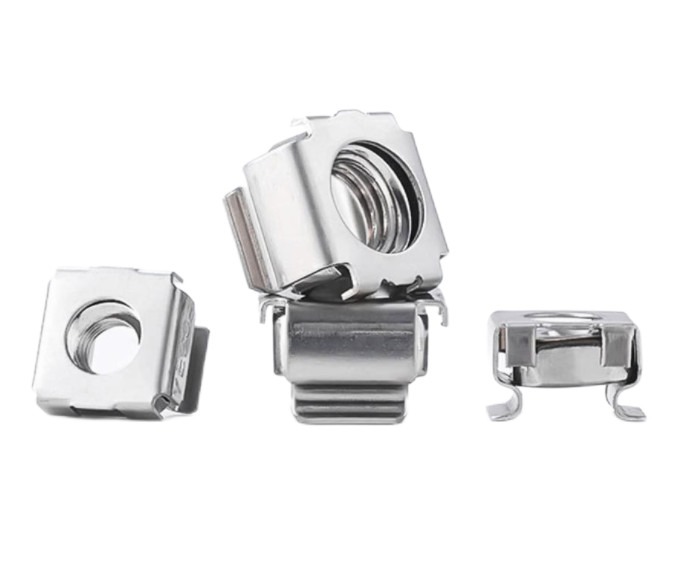

| M4 | 0.7 | 11 | 4.5 | 0.4 | 8.6 | 0.8-2.8 | 9.5×9.5 | sus304 | suS304 | natural color |
| M5 | 0.8 | 11 | 4.5 | 0.4 | 8.4 | 0.8-2.8 | 9.5×9.5 | sus304 | suS304 | natural color |
| M6 | 1 | 11 | 4.5 | 0.4 | 8 | 0.8-2.8 | 9.5×9.5 | sus304 | sus304 | natural color |
| M8 | 1.25 | 14 | 5.5 | 0.5 | 15.6 | 1-3.5 | 12.5×12.5 | sus304 | suS304 | natural color |
| M10 | 1.5 | 14 | 5.5 | 0.5 | 13.4 | 1-3.5 | 12.5×12.5 | sus304 | suS304 | natural color |
| M12 | 1.75 | 17 | 8 | 0.6 | 27.6 | 1.5-4 | 12.5×12.5 | sus304 | suS304 | natural color |
Advantages of KENENG Custom Cage Nut
KENENG has complete lathes, punches and thread rolling machines. Production and testing of parts can be carried out. We have excellent quality inspection capability: we can provide salt spray, film thickness and various inspection reports.
We have specialized designers and production personnel and complete production lines.
We produce a wide range of products at reasonable prices, and ensure product quality.
Materials we can use on Custom Cage Nut
