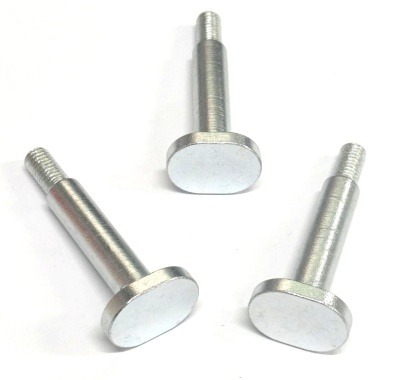

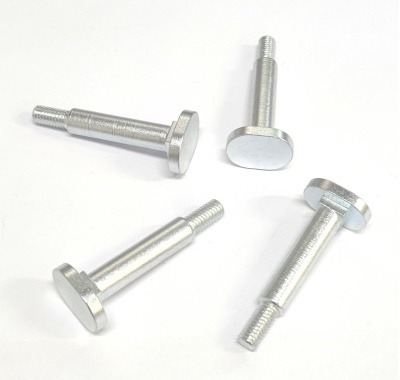

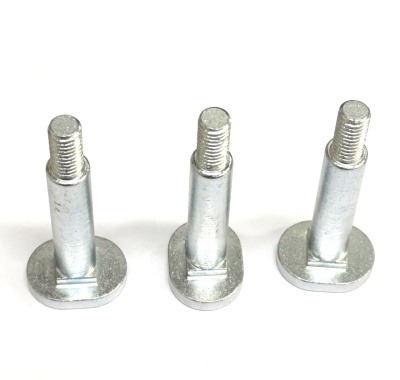

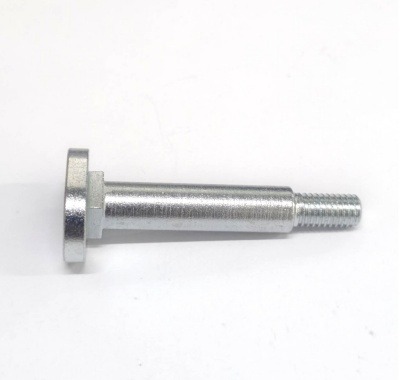

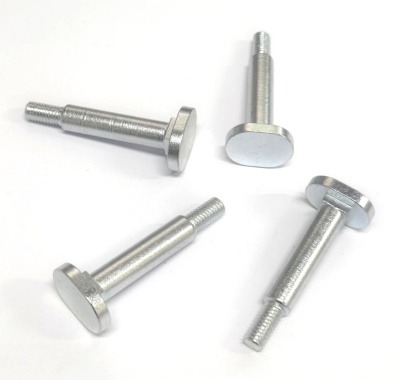

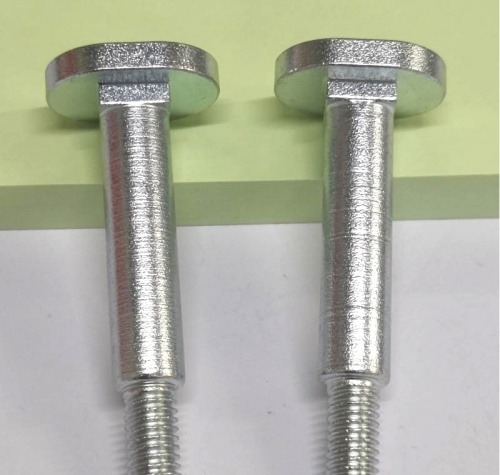

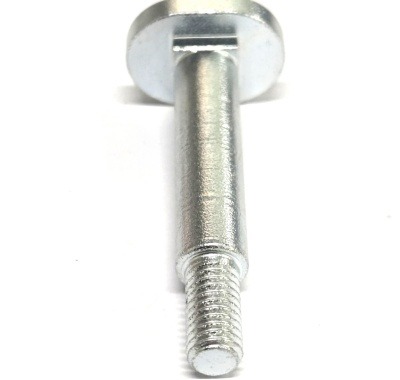

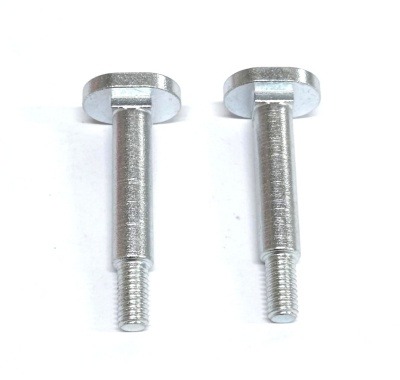

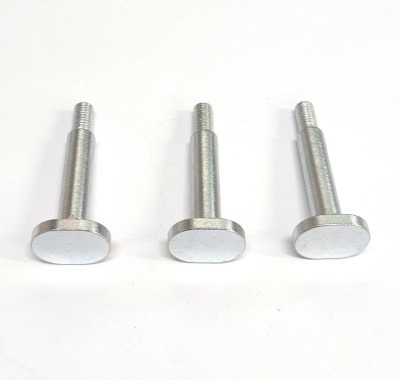

Custom CNC Turned Oval Head Shoulder Screws
- Product Name: Custom CNC Turned Oval Head Shoulder Screw
- Thread Size: M6
- Overall Length: 50 mm
- Head Style: Oval Head
- Manufacturing Process: CNC Turning
- Shoulder Design: Precision Machined Shoulder
- Material: Carbon Steel (Custom materials available)
- Surface Finish: Zinc Plated
- Tolerance: According to customer drawings
- Standard: Custom OEM Part
Product Overview of Custom CNC Turned Oval Head Shoulder Screws
This custom CNC turned shoulder screw is manufactured from high-quality steel using precision CNC lathes to ensure outstanding dimensional accuracy and consistent quality. Featuring a large oval head, an integrated precision shoulder, and an M6 threaded end, the fastener is designed for applications requiring accurate positioning, smooth rotation, and reliable clamping.
Unlike standard catalog screws, this custom component is produced according to customer drawings, making it ideal for OEM equipment, machinery assembly, automation systems, and specialized industrial applications.
Superior Characteristics of Custom CNC Turned Oval Head Shoulder Screws
Precision CNC Machining
Each screw is produced on advanced CNC turning centers, providing excellent concentricity, accurate shoulder dimensions, and stable thread quality for demanding mechanical assemblies.
Integrated Shoulder Design
The precision shoulder functions as a locating surface or bearing shaft, reducing assembly errors while improving alignment and repeatability.
Large Oval Head
The oversized oval head provides a larger bearing surface for improved load distribution while delivering an attractive, clean appearance for visible assemblies.
Smooth Surface Finish
After machining, the screw receives a zinc-plated finish that offers corrosion resistance while maintaining a bright metallic appearance suitable for indoor and general industrial environments.
Custom Manufacturing
Every dimension—including head diameter, shoulder length, shoulder diameter, thread length, tolerances, material, and surface treatment—can be fully customized based on customer requirements.
Common Applications of Custom CNC Turned Oval Head Shoulder Screws
This custom shoulder screw is widely used in:
- Industrial automation equipment
- Mechanical positioning mechanisms
- Conveyor systems
- Fixture and jig assemblies
- Robotics equipment
- Precision machinery
- Agricultural machinery
- Medical equipment
- Electronic devices
- OEM mechanical assemblies
Our Manufacturing Advantages for Custom CNC Turned Oval Head Shoulder Screws
Our factory specializes in custom CNC machining for precision fasteners and mechanical components.
We provide:
- Export-ready packaging
- CNC turning with tight dimensional tolerances
- Custom head and shoulder configurations
- Metric and inch thread production
- Small to high-volume manufacturing
- Material traceability
- Strict in-process quality inspection
- OEM and ODM manufacturing services
Available Customization Options for Shoulder Screws
We can manufacture according to your drawings or samples, with options including:
- Carbon Steel
- Alloy Steel
- Stainless Steel (304 / 316)
- Brass
- Aluminum
Surface treatments available include:
- Zinc Plating
- Black Zinc
- Nickel Plating
- Chrome Plating
- Black Oxide
- Dacromet
- Geomet
- Phosphate Coating
- Custom coatings upon request
Why Choose Our Custom CNC Fasteners
With extensive experience in manufacturing precision fasteners and turned components, we combine advanced CNC equipment with rigorous quality control to deliver reliable custom solutions for global OEM customers. Whether you require prototypes or mass production, our engineering team works closely with you to ensure every component meets your exact specifications.
Looking for a custom shoulder screw manufacturer?
Send us your drawings or samples today, and our engineering team will provide a competitive quotation with professional manufacturing support for your project.
