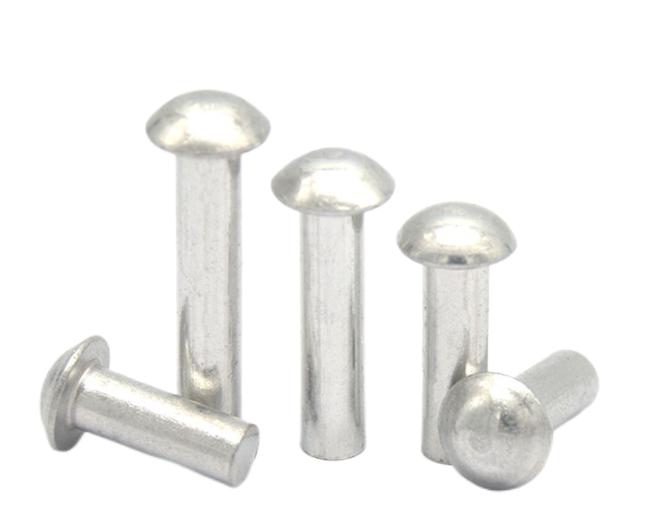

Half Round Head Solid Aluminum Rivet

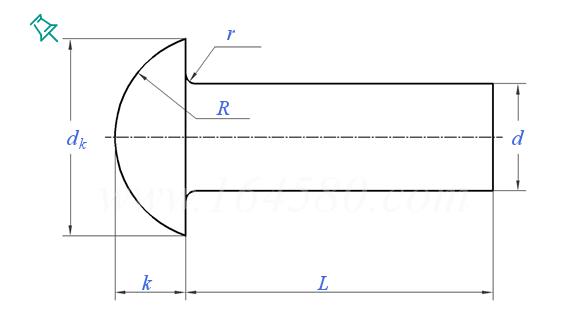

Specification of Half Round Head Solid Aluminum Rivet
| Unit: mm | d | dk | k | R | r | |||
| Nominal diameter | max | min | max | min | max | min | 0.58 | max |
| Φ0.6 | 0.64 | 0.56 | 1.3 | 0.9 | 0.5 | 0.3 | 0.74 | 0.05 |
| Φ0.8 | 0.84 | 0.76 | 1.6 | 1.2 | 0.6 | 0.4 | 1 | 0.1 |
| Φ1 | 1.06 | 0.94 | 2 | 1.6 | 0.7 | 0.5 | 1 | 0.1 |
| (Φ1.2) | 1.26 | 1.14 | 2.3 | 1.9 | 0.8 | 0.6 | 1.2 | 0.1 |
| Φ1.4 | 1.46 | 1.34 | 2.7 | 2.3 | 0.9 | 0.7 | 1.4 | 0.1 |
| Φ1.6 | 1.66 | 1.54 | 3.2 | 2.8 | 1.2 | 0.8 | 1.6 | 0.1 |
| Φ2 | 2.06 | 1.94 | 3.74 | 3.26 | 1.4 | 1 | 1.9 | 0.1 |
| Φ2.5 | 2.56 | 2.44 | 4.84 | 4.36 | 1.8 | 1.4 | 2.5 | 0.1 |
| Φ3.5 | 3.06 | 2.94 | 5.54 | 5.06 | 2 | 1.6 | 2.9 | 0.1 |
| Φ3.5 | 3.56 | 3.42 | 6.59 | 6.01 | 2.3 | 1.9 | 3.4 | 0.3 |
| Φ4 | 4.08 | 3.92 | 7.39 | 6.81 | 2.6 | 2.2 | 3.8 | 0.3 |
| Φ5 | 5.06 | 4.92 | 9.09 | 8.51 | 3.2 | 2.8 | 4.7 | 0.3 |
| Φ6 | 6.08 | 5.92 | 11.35 | 10.65 | 3.84 | 3.36 | 6 | 0.3 |
| Φ8 | 8.1 | 7.9 | 14.35 | 13.65 | 5.04 | 4.56 | 8 | 0.3 |
| Φ10 | 10.1 | 9.9 | 17.35 | 16.65 | 6.24 | 5.76 | 9 | 0.3 |
| Φ12 | 12.12 | 11.88 | 21.42 | 20.56 | 8.29 | 7.71 | 11 | 0.4 |
| (Φ14) | 14.12 | 13.88 | 24.42 | 23.56 | 9.29 | 8.71 | 12.5 | 0.4 |
| Φ16 | 16.12 | 15.88 | 29.42 | 28.58 | 10.29 | 9.71 | 15.5 | 0.4 |
Application of Half Round Head Solid Aluminum Rivet
Solid rivets can be widely used in cutting tools, stationery books, locks, helmets, auto hardware bags, buggies, auto clutch steel pieces, motorcycle accessories and household appliances.
Advantage of Half Round Head Solid Aluminum Rivet
1, Easy to use, good appearance, light.
2, Small space occupied for installation
