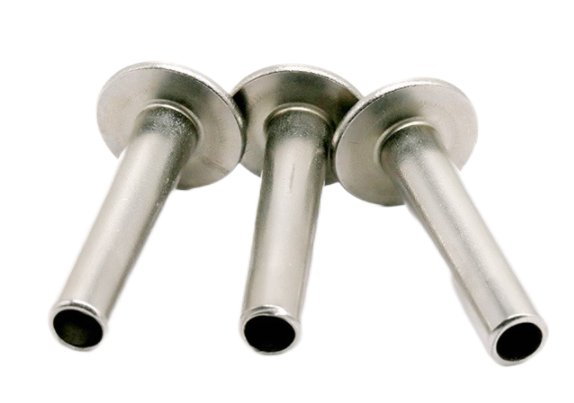

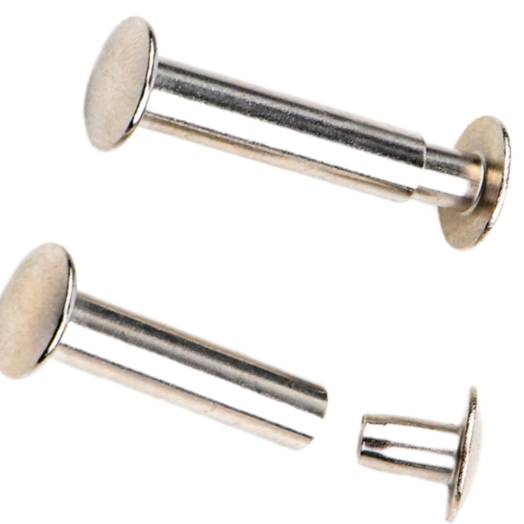

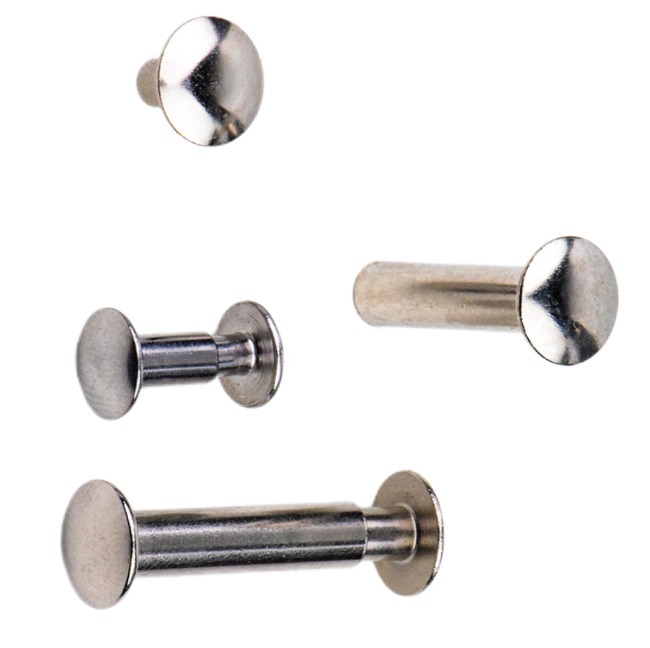

Custom Male Female Rivet

Material: Stainless steel, Carbon steel, Iron, Aluminum, Brass
Finish: Passivated, Zinc plated, Nickel plated, Silver plated, Copper plated
Size: Diameter 0.8~10mm, length 2~120mm, head diameter 2~35mm

Are You an OEM Manufacturer?

Yes

Description

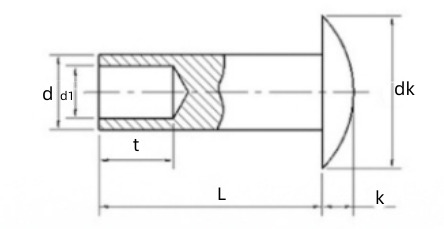

Specification of Male Female Rivet

Unit: mm	d		dk		k		d1		t
Nominal diameter	max	min	max	min	max	min	max	min	max	min
1.2	1.26	1.14	2.6	2.2	0.6	0.4	0.66	0.56	1.44	0.96
1.4	1.46	1.34	3	2.6	0.7	0.5	0.77	0.65	1.64	1.16
1.6	1.66	1.54	3.44	2.96	0.8	0.6	0.87	0.75	1.84	1.36
2	2.06	1.94	4.24	3.76	0.9	0.7	1.12	0.94	2.24	1.76
2.5	2.56	2.44	5.24	4.76	0.9	0.7	1.62	1.44	2.74	2.26
3	3.06	2.94	6.24	5.76	1.2	0.8	2.12	1.94	3.24	2.76
3.5	3.58	3.42	7.29	6.71	1.4	1	2.32	2.14	3.79	3.21
4	4.08	3.92	8.29	7.71	1.5	1.1	2.52	2.34	4.29	3.71
5	5.08	4.92	10.3	9.71	1.9	1.1	3.46	3.22	5.29	4.71
6	6.08	5.92	12.4	11.7	2.4	2	4.16	3.92	6.29	5.71
8	8.1	7.9	16.4	15.7	3.2	2.8	4.66	4.42	8.36	7.65
10	10.1	9.3	20.4	19.6	4.24	3.76	7.7	7.4	10.4	9.65

Advantages of KENENG Custom Male Female Rivet

KENENG has complete lathes, punches and thread rolling machines. Production and testing of parts can be carried out. We have excellent quality inspection capability: we can provide salt spray, film thickness and various inspection reports.

KENENG’s monthly production capacity exceeds 10 million pieces.

We have specialized designers and production personnel and complete production lines.
