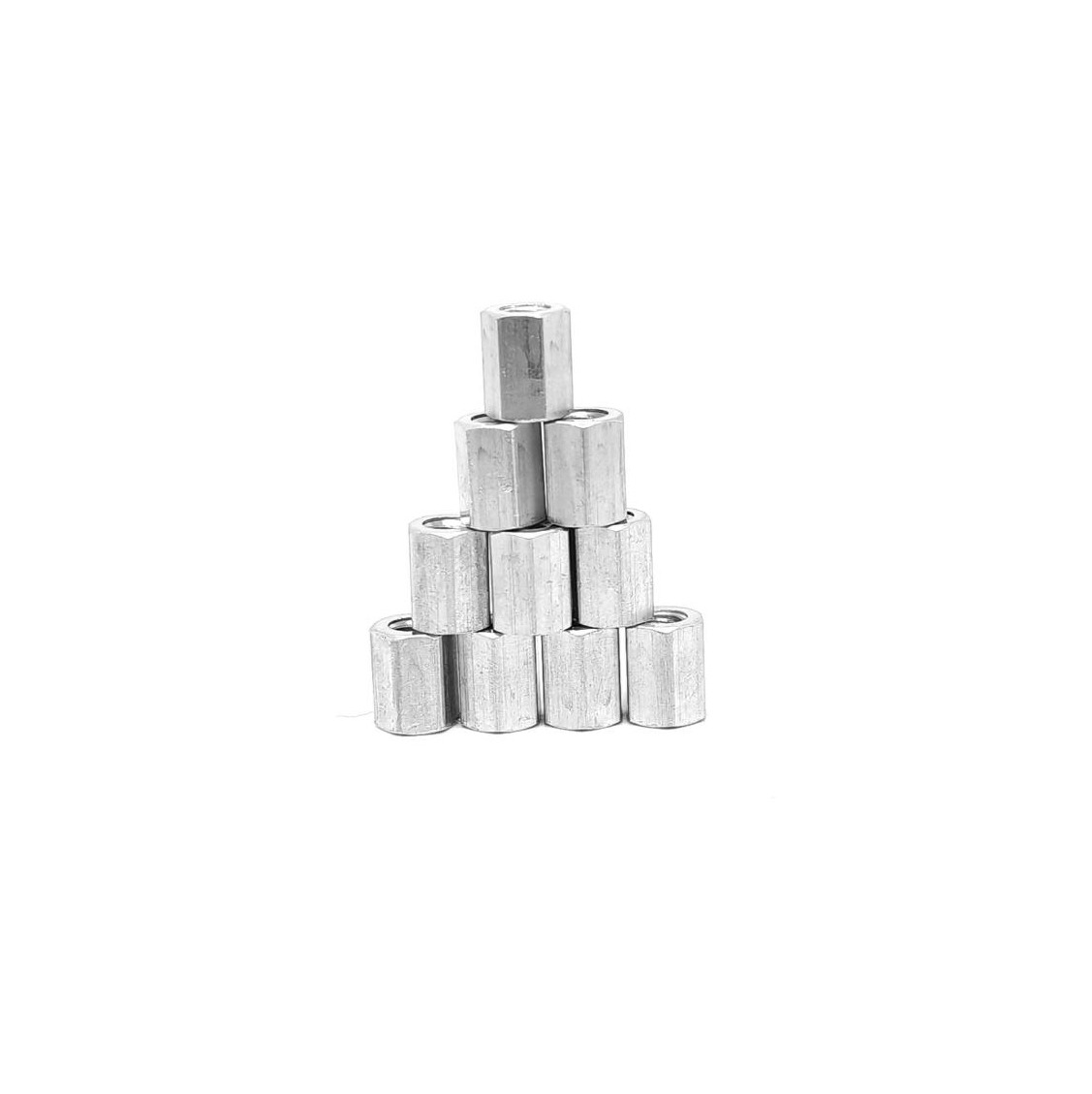

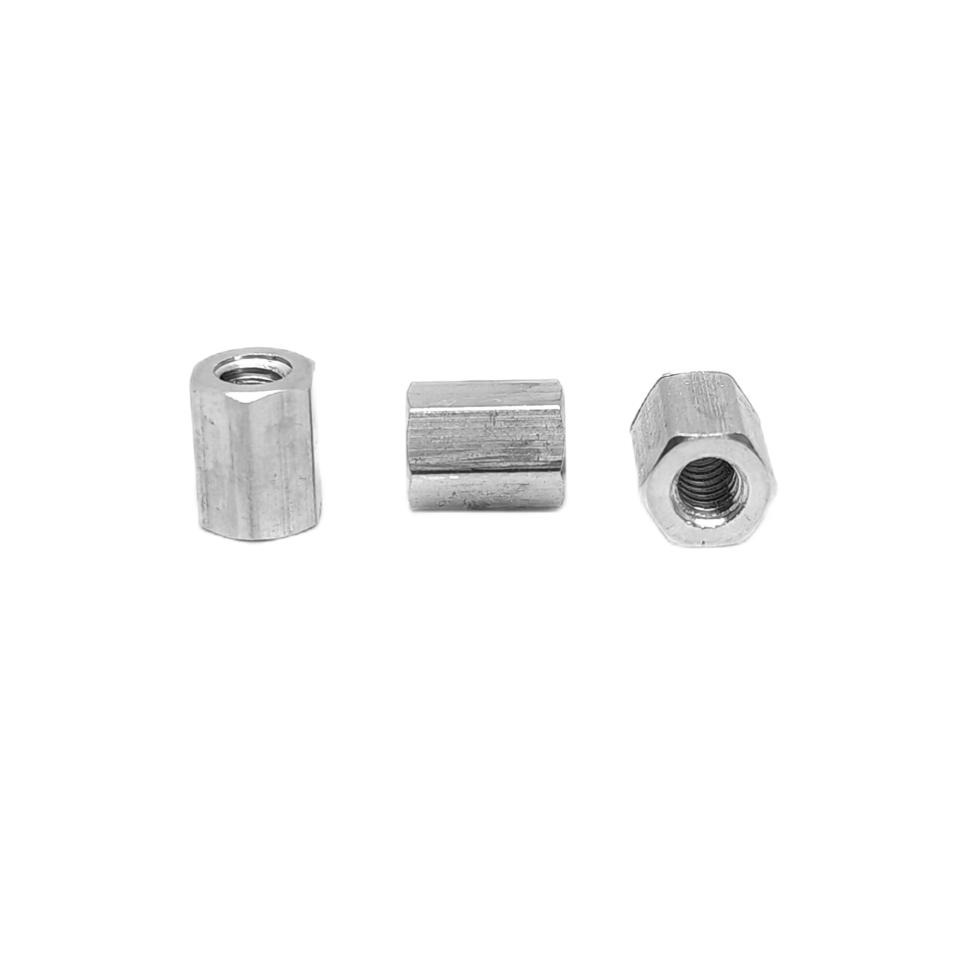

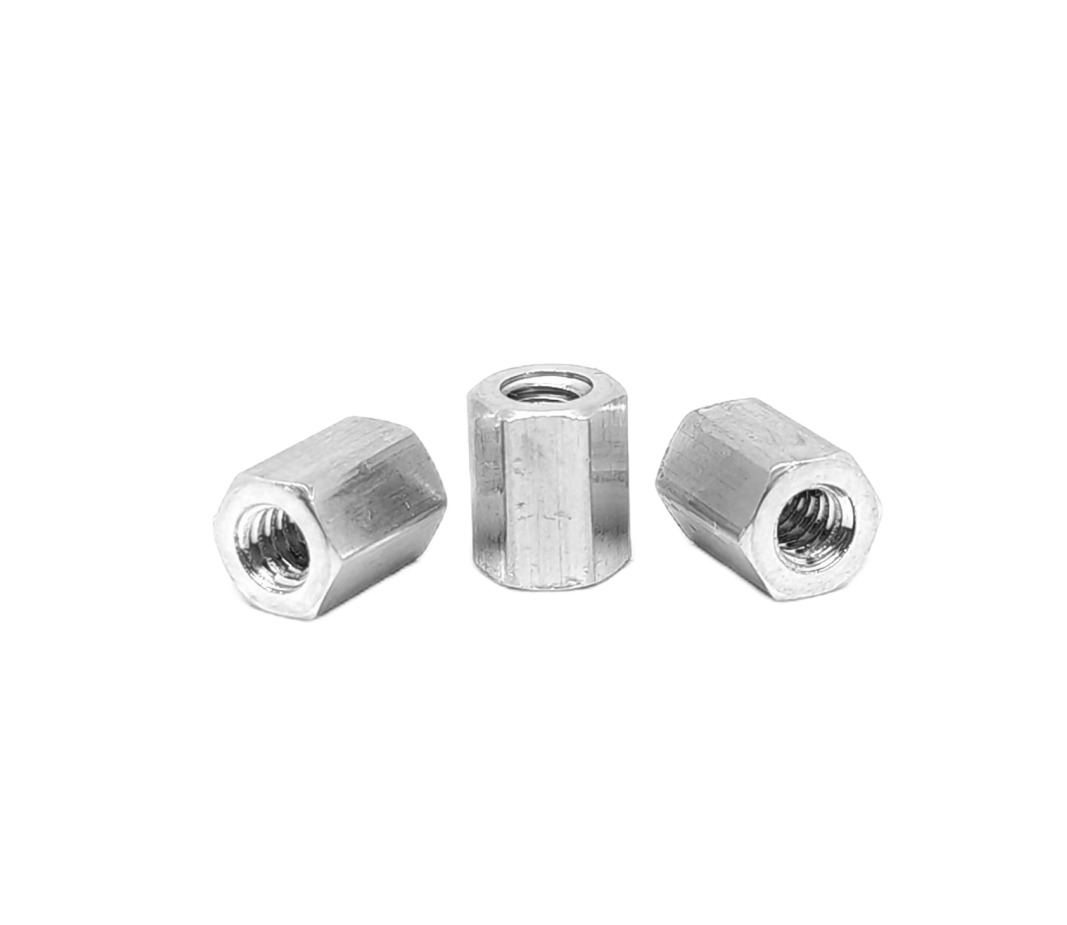

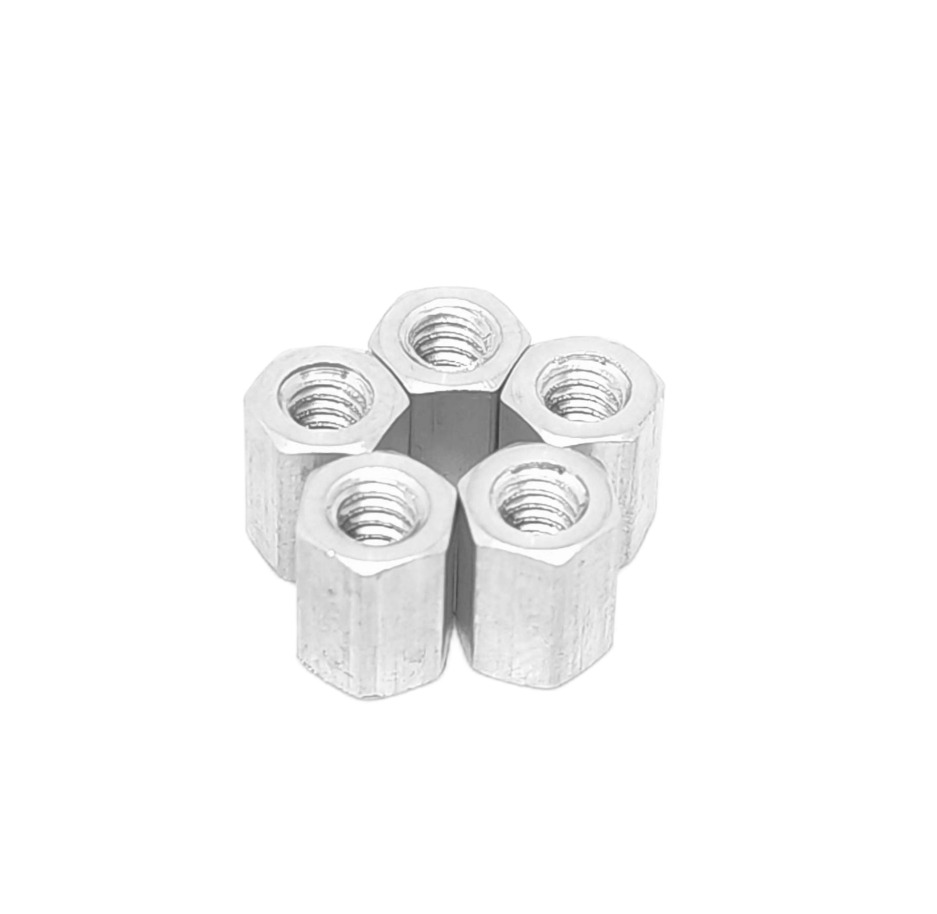

Hex Threaded CNC Female Standoffs

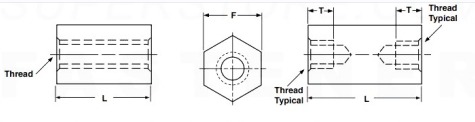

Specifications of Hex Threaded CNC Female Standoffs
| HEXAGON STANDOFFS | ||||||
| F | Thread Size | T | F | Thread Size | T | |
|
Width Across the Flats (±1/64) |
Thread Depth |
Width Across the Flats (*1/64) |
Thread Depth | |||
| Min | Min | |||||
| 1/8 | 2-56 | 3/16 | 3/8 | 6-32 | 3/8 | |
| 3/16 | 2-56 | 3/16 | 3/8 | 8-32 | 7/16 | |
| 3/16 | 4-40 | 1/4 | 3/8 | 10-32 | 1/2 | |
| 1/4 | 2-56 | 3/16 | 1/2 | 6-32 | 3/8 | |
| 1/4 | 4-40 | 1/4 | 1/2 | 8-32 | 7/16 | |
| 1/4 | 6-32 | 38 | 1/2 | 10-32 | 1/2 | |
| 114 | 8-32 | 7/16 | 1/2 | 1/4-20 | 5/8 | |
| 1/4 | 10-32 | 1/2 | 5/8 | 8-32 | 7/16 | |
| 5/16 | 4-40 | 1/4 | 5/B | 10-32 | 1/2 | |
| 5/16 | 6-32 | 38 | 5/8 | 1/4-20 | 5/8 | |
| 5/16 | 8-32 | 7/16 | 5/B | 5/16-18 | 5/8 | |
| 5/16 | 10-32 | 1/2 | 5/B | 3/8-16 | 5/8 | |
| Tolerance on Length(up to 4 in.) | Nyion parts:±.015 | All other materials:±.005 | ||||
Why Choose KENENG Hex Threaded CNC Female Standoffs
1. Multi-process processing to ensure accuracy.
2. Strict selection of raw materials, sources to ensure quality.
3. Complete specifications, and drawings can be customized.
4. More than 15 years of production experience, fully equipped.
