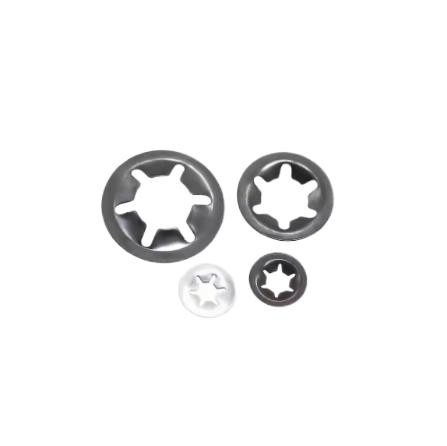

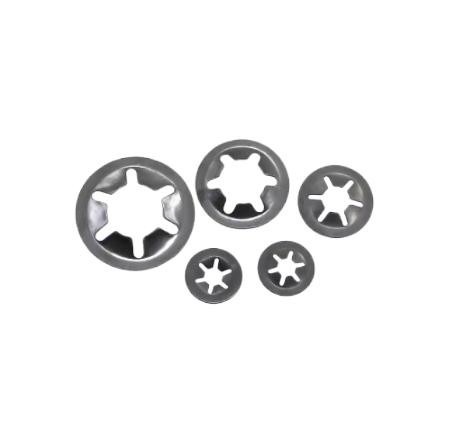

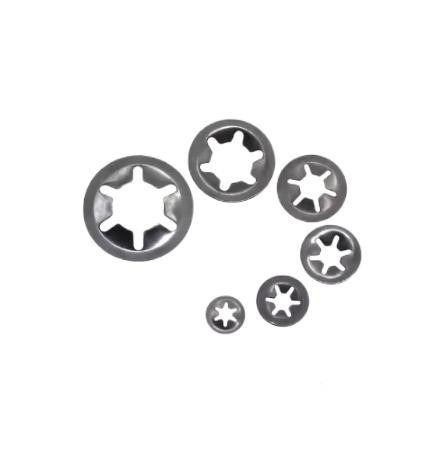

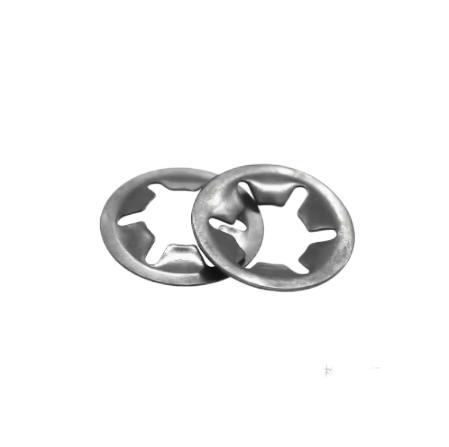

Push-on Washers for Metric Round Shaft

  • Size: 1.5~25
  • Material: Stainless steel, 65Mn
  • Application: It is a common mechanical part, which plays the role of fixing the bearing in the mechanical equipment so that the bearing can run steadily.
  • Finishing: Plain, black oxide, Zinc plated
  • Standard: YJT 6012, YJT6014

Are You an OEM Manufacturer?

Yes

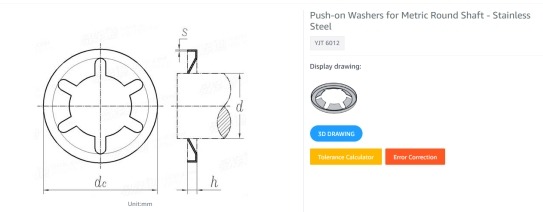

Specifications of Push-on Washers

Specifications of Push-on Washers

Nominal Diameter
d 		1.5 2 3 4 5 6 7 8 9 10 11 12 13
dc Nominal Size 9.7 9.7 9.7 11.5 11.5 15.3 15.3 15.3 18.4 18.4 18.4 25.1 25.1
max 9.9 9.9 9.9 11.7 11.7 15.5 15.5 15.5 18.6 18.6 18.6 25.3 25.3
min 9.5 9.5 9.5 11.3 11.3 15.1 15.1 15.1 18.2 18.2 18.2 24.9 24.9
h Nominal Size 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.3 1.9 1.9 1.9 2.3 2.3
max 1.5 1.5 1.5 1.5 1.5 1.5 1.5 1.5 2.1 2.1 2.1 2.5 2.5
min 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.1 1.7 1.7 1.7 2.1 2.1
S 0.20 0.20 0.20 0.20 0.20 0.25 0.25 0.25 0.30 0.30 0.30 0.40 0.40
Number of Teeth 4 4 4 5 6 6 6 6 6 6 6 6 6
Nominal Diameter
d 		14 15 16 17 18 19 20 21 22 23 24 25
dc Nominal Size 28.2 28.2 28.2 28.2 36.6 36.6 36.6 36.6 36.6 38.1 41.3 41.5
max 28.4 28.4 28.4 28.4 36.8 36.8 36.8 36.8 36.8 38.3 41.5 41.7
min 28.0 28.0 28.0 28.0 36.4 36.4 36.4 36.4 36.4 37.9 41.1 41.3
h Nominal Size 2.3 2.3 2.3 2.3 3.0 3.0 3.0 3.0 3.0 2.9 3.2 3.2
max 2.5 2.5 2.5 2.5 3.2 3.2 3.2 3.2 3.2 3.1 3.4 3.4
min 2.1 2.1 2.1 2.1 2.8 2.8 2.8 2.8 2.8 2.7 3.0 3.0
S 0.40 0.40 0.40 0.40 0.40 0.40 0.40 0.40 0.40 0.45 0.50 0.50
Number of Teeth 6 6 6 6 9 9 9 9 9 9 9 9


Why Choose KENENG Push-on Washers

1. Simple structure, easy installation, can quickly fix the bearing;

2. It has good compressive resistance and wear resistance, and can withstand large axial forces;

3. The clamp structure can effectively prevent the bearing from sliding or loosening during operation ;

4. It has good reuse performance and can be installed and disassembled many times.

Materials we can use on Push-on Washers
