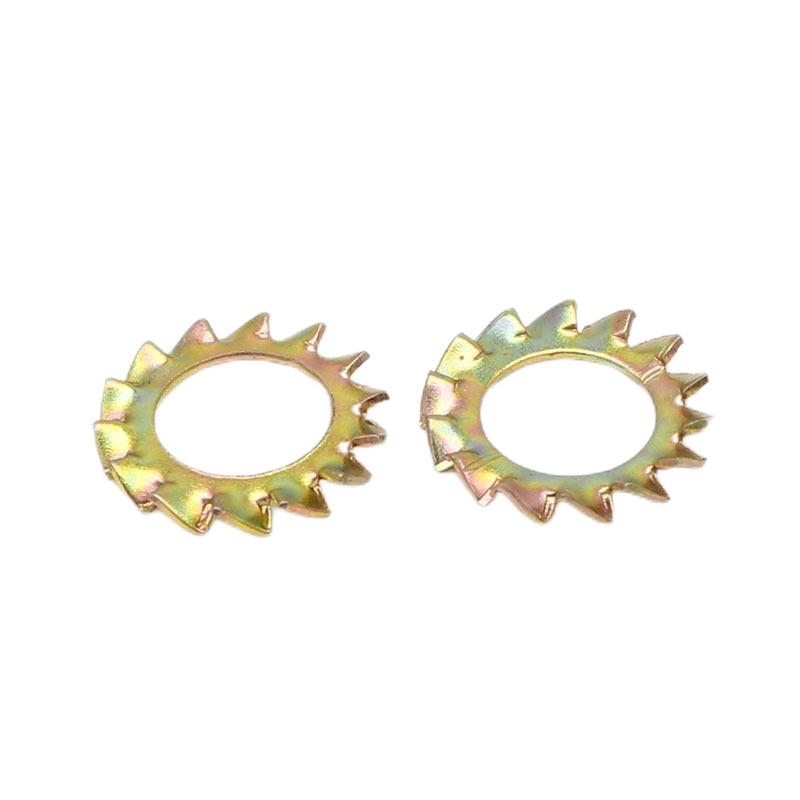

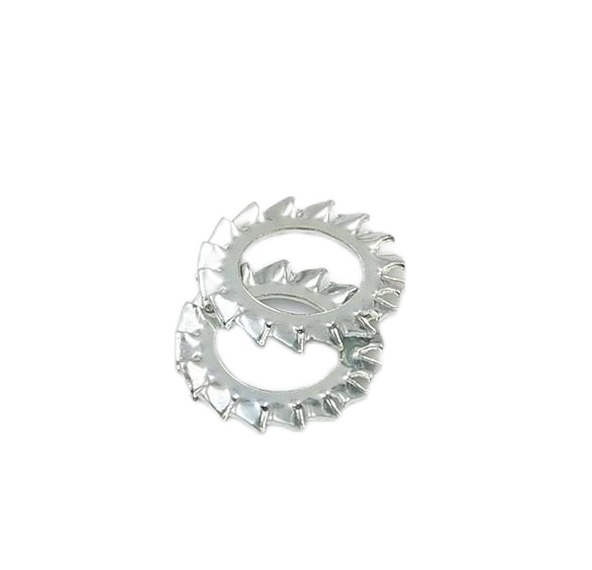

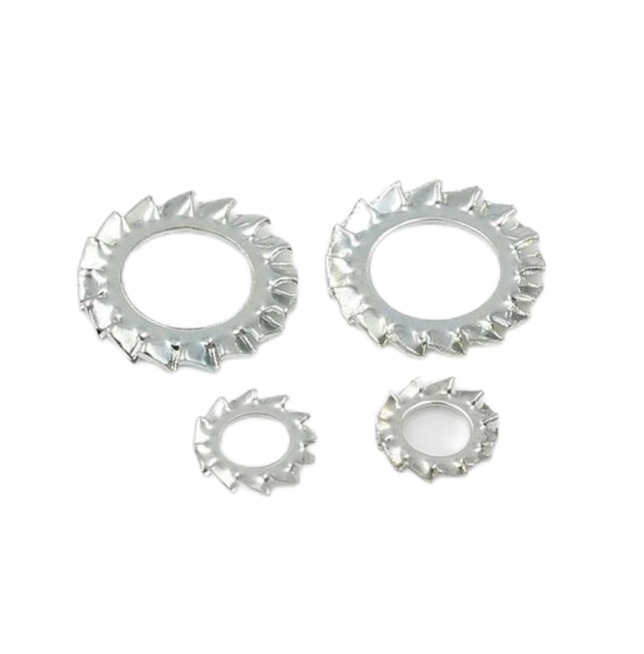

Serrated Lock Washers With External Teeth

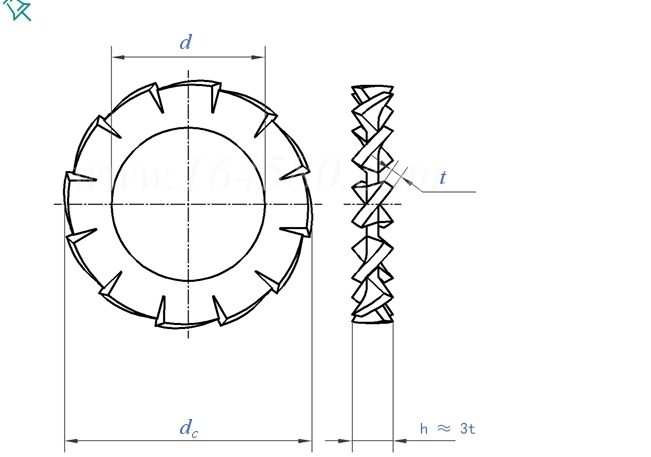

Specifications of Serrated Lock Washers With External Teeth
| For thread diameter | M2.5 | M3 | M3.5 | M4 | M5 | M6 | (M7) | M8 | M10 | |
| d | min=nominal size | 2.25 | 2.7 | 3.2 | 3.6 | 4.55 | 5.5 | 6.5 | 7.4 | 9.3 |
| max | 2.35 | 2.8 | 3.32 | 3.72 | 4.67 | 5.62 | 6.65 | 7.55 | 9.45 | |
| dc | max-nominal size | 5.5 | 6 | 7 | 8 | 9 | 11 | 12.5 | 14 | 18 |
| min | 5.32 | 5.82 | 6.78 | 7.78 | 8.78 | 10.73 | 12.230 | 13.73 | 17.73 | |
| t | Nominal Size | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 | 0.7 | 0.8 | 0.8 | 0.9 |
| max | 0.44 | 0.44 | 0.54 | 0.54 | 0.65 | 0.75 | 0.85 | 0.85 | 0.95 | |
| min | 0.36 | 0.36 | 0.46 | 0.46 | 0.55 | 0.65 | 0.75 | 0.75 | 0.85 | |
| Number of Teeth | min | 9 | 9 | 10 | 11 | 11 | 12 | 14 | 14 | 16 |
| per 1000 units≈kg | 0.06 | 0.07 | 0.12 | 0.16 | 0.22 | 0.39 | 0.5 | 0.70 | 1.32 | |
Why Choose KENENG Serrated Lock Washers With External Teeth
KENENG has complete lathes, punches and thread rolling machines. Production and testing of parts can be carried out. We have excellent quality inspection capability: we can provide salt spray, film thickness and various inspection reports.
We have specialized designers and production personnel and complete production lines.
We produce a wide range of products at reasonable prices and ensure product quality.
