1AA battery holder (with wire)

  • 1 AA battery holder can hold one AA ordinary battery or rechargeable battery. Ordinary batteries can output 1.5V voltage, while rechargeable batteries can output 1.2V voltage, which can be used as power supply for SCM system, Arduino system, other intelligent cars, tracking cars, etc.
  • Keyu brand one AA battery holder is made of high quality materials, combined with advanced production equipment and strict quality control, for you to produce 100% good products.

Contact US

For product pricing, customization, or other inquiries:


Product Parameter (Specification)

Product name1AA battery holder(with wire)
TypeCylindrial battery holder
Model No.KY-32001-1-1
MaterialPP Resin + Spring Steel Nickel plated
Size57.5*17*14mm
Rating1.5V
ColorBlack
Number of cells1 cell
Cell ArrangementSingle
PortShenzhen , Guangzhou
MOQ2000pcs

Product Feature And Application

  1. This 1 AA battery holdercan be make to 1.5v battery output.
  2. The opposite side is the same as the picture shown.
  3. The perfect external power source for electronic DIY.
  4. Holds one AA battery.
  5. Easy install, convenient to use.
  6. High-quality plastic material.
  7. The perfect external power source for single-chip microcomputer system, Arduino system, 2WD mobile robot, track-seeking car, RP5 tracked vehicle.

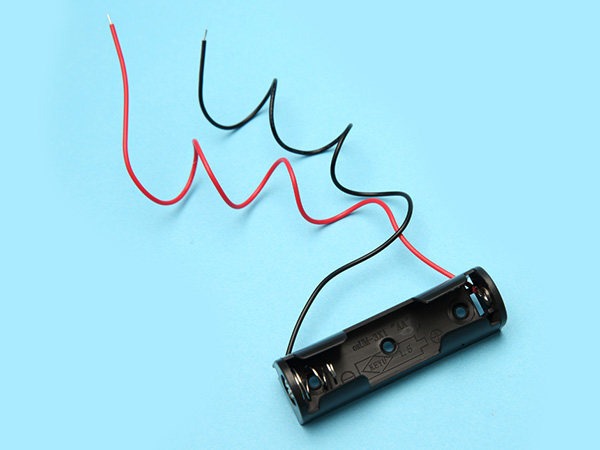

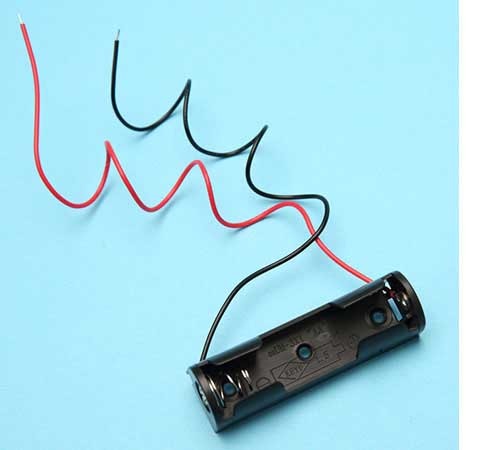

1AA battery holder (with wire)

Product Details

1 AA Battery holder detail:

  • Battery Type: Cylindrical battery holder
  • Place of Origin: Dongguan, China
  • Color: Black
  • Material:
  • Holder: PP Resin, black color 94HB; Spring: 0.6mm 65C spring steel nickel plated ;
  • Wire: UL1007 AGW#26 black&red wire
  • Product name: 1 AA battery holder
  • Style: Holder(open)
  • Mounting Type: Custom
  • Operating Temperature: -10-100℃
  • Size: 57.5mm x 17mm x 14mm ,wire length=150mm
  • Termination Style: Wire
  • Nominal Voltage: 1.5V

Product Qualification

All of our 1 AA battery holder with ISO9001, ROHS, Dun & Bradstreet certifications.
