AA battery holder (with wire)

The Battery Pack Holders can keep your batteries organized and protected. It is designed with pin for easy to connect. This AA Battery Holder is perfect for the devices need a 12V external battery.

Contact US

For product pricing, customization, or other inquiries:

Product Introduction

This Battery Pack Holders can hold 8 AA ordinary batteries or rechargeable batteries. Ordinary batteries can output 12V voltage, while rechargeable batteries can output 12V voltage, which can be used as power supply for SCM system, Arduino system, other intelligent cars, tracking cars, etc. Keyu brand 8 AA battery holder is made of high quality materials, combined with advanced production equipment and strict quality control, for you to produce 100% good products.

Product Parameter (Specification)

Product nameAA battery holder (with wire)
TypeCylinder battery holder
Model No.KY-32019-2-2
MaterialPP Resin + Spring Steel Nickel plated
Size62.8mm x 58.2mm x 31.1mm
Number of cells8 cells
Cell ArrangementSide by side
PortShenzhen , Guangzhou

Product Feature And Application

  1. This Battery Pack Holderscan be made to 12V battery output

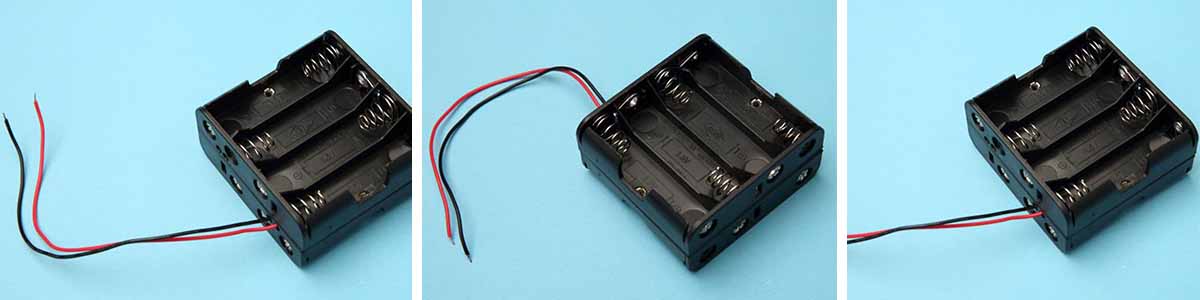

  2. The opposite side is the same as the picture shown.
  3. The perfect external power source for electronic DIY.
  4. Holds 8 AA batteries.
  5. Easy install, convenient to use.
  6. High-quality plastic material.
  7. The perfect external power source for single-chip microcomputer system, Arduino system, 2WD mobile robot, track-seeking car, RP5 tracked vehicle.

Product Details

Battery Pack Holders detail:

Battery Type: Cylindrical battery holder

Place of Origin: Dongguan, China

Color: Black

Material: PP Resin + Music wire nickle plated Spring+26AWG1007 UL/CSA approved wire

Product name: AA battery holder

Style: Holder(open)

Mounting Type: Custom

Operating Temperature: -10-100℃

Size: 62.8mm x 58.2mm x 31.1mm,Wire length=150mm

Termination Style: Wire

Nominal Voltage: 12V

Product Qualification

All of our Battery Pack Holders with ISO9001, ROHS, Dun & Bradstreet certifications.
