3 AA battery case holder(with cover and Toggle switch)

  • 3 AA battery case holder (with cover and toggle switch) can hold three AA ordinary batteries or rechargeable batteries. Ordinary batteries can output 4.5V voltage, while rechargeable batteries can output 3.6V voltage, which can be used as power supply for SCM system, Arduino system, other intelligent cars, tracking cars, etc.
  • Keyu brand 3 AA battery case holder is made of high quality materials, combined with advanced production equipment and strict quality control, for you to produce 100% good products.

Contact US

For product pricing, customization, or other inquiries:

Product Parameter (Specification)

Product name3 AA battery case holder(with cover and Toggle switch)
TypeRectangle battery holder
Model No.:KY-32005-1-9
Material:ABS + Spring Steel Nickel plated
Number of cells3 cells
Cell ArrangementSide by side
PortShenzhen , Guangzhou

Product Feature And Application

  1. This3 AAbatterycase holder can be make to 4.5v battery output
  2. The opposite side is the same as the picture shown.
  3. The perfect external power source for electronic DIY.
  4. Holds three AA batteries.
  5. Easy install, convenient to use.
  6. High-quality plastic material.
  7. The perfect external power source for single-chip microcomputer system, Arduino system, 2WD mobile robot, track-seeking car, RP5 tracked vehicle.

Product Details

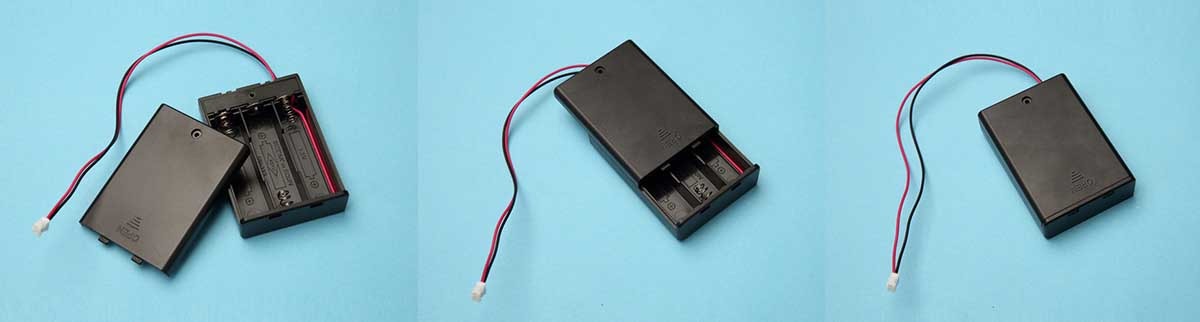

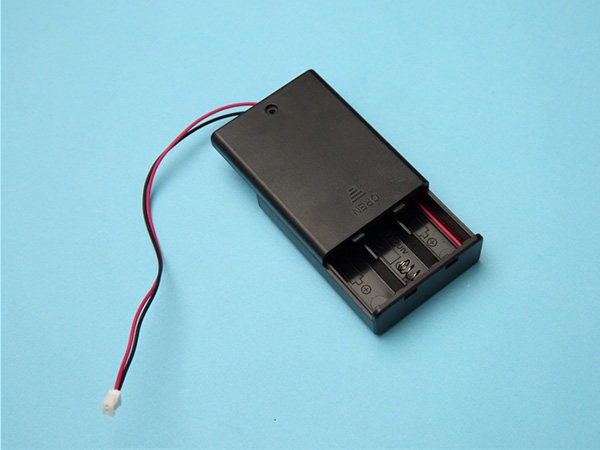

3 AA battery case holder detail:

Battery Type: Rectangle battery holder

Place of Origin: Dongguan, China

Color: Black


Holder: ABS Resin,Black color ROHS; Wire: 26 AWG.1007 UL/CSA Approved; Contact:   Tin plate Nickle plated; Spring:0.5MM 65C Spring steel nickel plated

Product name: 3 AA battery case holder with cover and switch

Style: Holder (cover)

Mounting Type: Custom

Operating Temperature: -10-100℃

Size: 69.4*48.8*18.5mm, wire length=150mm

Termination Style: Wire(black and red) with PH2.0-2P connector

Nominal Voltage: 4.5V

Product Qualification

All of our 6xAA battery holder with rivet with ISO9001, ROHS, Dun & Bradstreet certifications.
