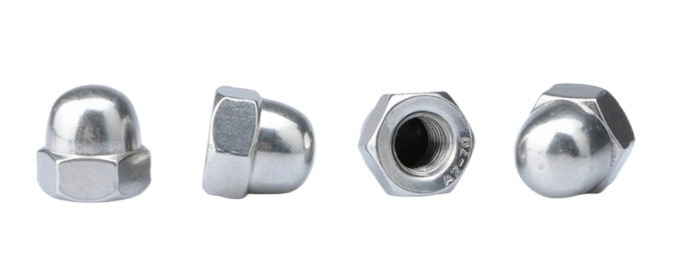

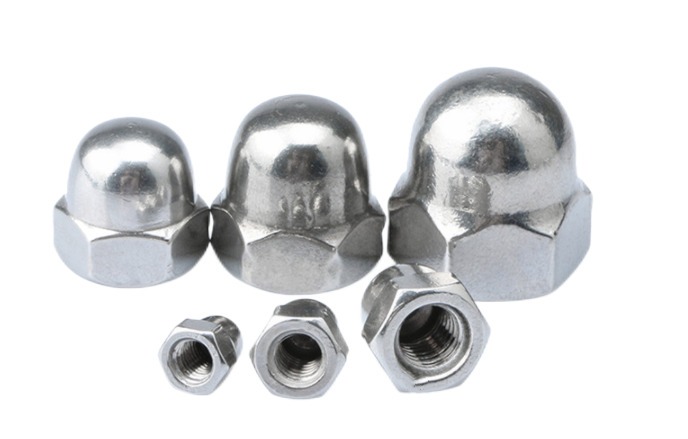

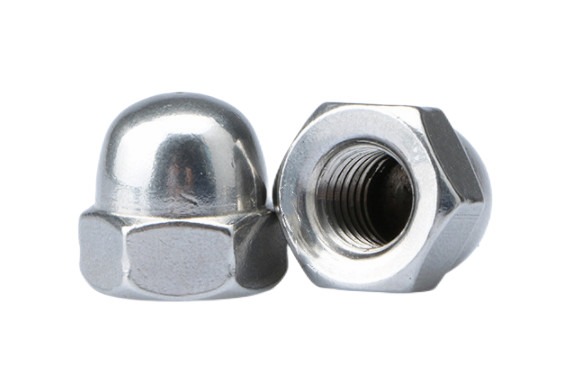

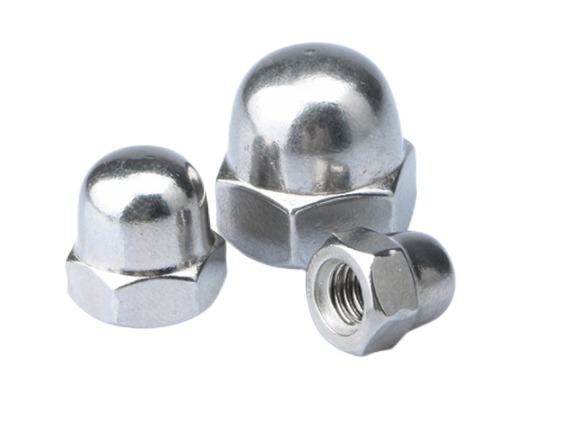

Custom Acorn Nut

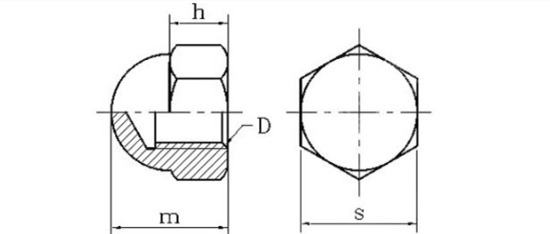

Specification of Acorn Nut
| Unit: mm | |||||
| D | P | h | m | max | min |
| M3 | 0.5 | 2.5 | 6 | 5.5 | 5.32 |
| M4 | 0.7 | 3 | 7 | 7 | 6.78 |
| M5 | 0.8 | 4 | 9 | 8 | 7.78 |
| M6 | 1 | 5 | 11 | 10 | 9.78 |
| M8 | 1/1.25 | 6 | 15 | 13 | 12.73 |
| M10 | 1/1.25/1.75 | 8 | 18 | 17 | 16.73 |
| M12 | 1.25/1.5/1.75 | 10 | 22 | 19 | 18.7 |
| M14 | 1.5/2 | 11 | 24 | 22 | 21.67 |
| M16 | 1.5/2 | 13 | 26 | 24 | 23.67 |
| M18 | 1.5/2/2.5 | 14 | 29 | 27 | 26.16 |
| M20 | 1.5/2/2.5 | 16 | 32 | 30 | 29.16 |
| M22 | 1.5/2/2.5 | 18 | 35 | 34 | 33 |
Advantages of KENENG Custom Acorn Nut
Order process of Stamping part: Receive CAD or 3D design → Quotation → Signing Pi → Receive dispose → Make product → Open molding → Trial production → Mass production → Receive Balance → Delivery
Ordering process of Lathe parts (non standard parts): Receive CAD or 3D design → Quotation → Signing Pi → Receive deposit → Make sample, approval by customer → Mass production → Receive Balance → Delivery
The order process of Injection Molding: Receive CAD or 3D design → Quotation → Signing Pi → Receive deposit → Make 3D or Prototype sample → Analyse Molding → Design → Open Molding → Make sample, approval by customer → Mass production → Receive Balance → Delivery

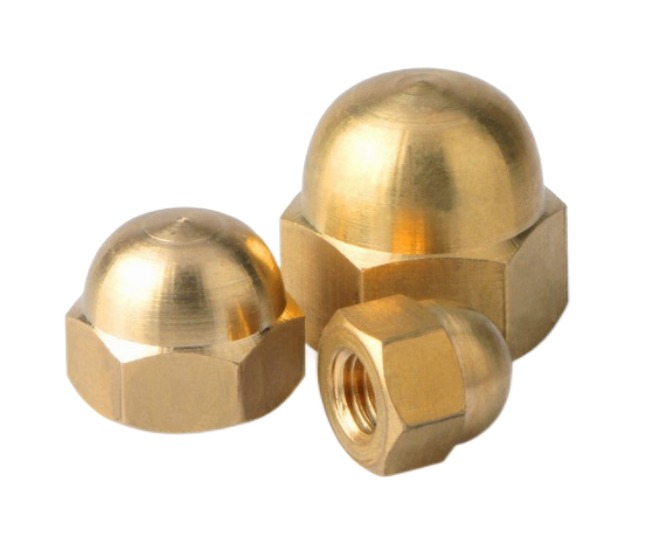

Materials we can use on Custom Acorn Nut
