Conical Nuts

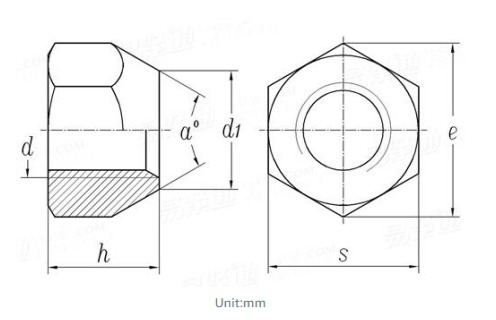

Specifications of Conical Nuts
|
Screw Thread d |
M12 | M12 | |
| P | Pitch | 1.5 | 1.5 |
| d1 | max | 15 | 15 |
| min | 14.5 | 14.5 | |
| h | Nominal Size(±0.25) | 14 | 14 |
| α | ±1° | 60° | 90° |
| S | max-nominal size(h13) | 19 | 19 |
| min | 18.67 | 18.67 | |
| e | min | 21.1 | 21.1 |
| per 1000 units≈kg | 19.8 | 20.1 | |
|
①,Material: Steel,Strength class or material: 8 or 10 according to DIN EN ISO 898-6 |
|||
Basics of Conical Nuts

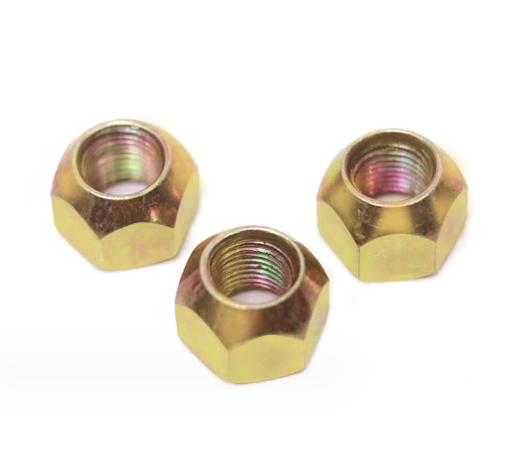

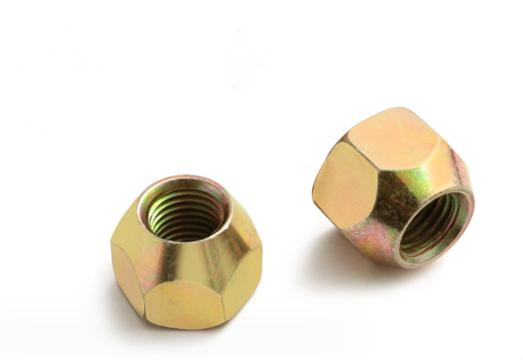

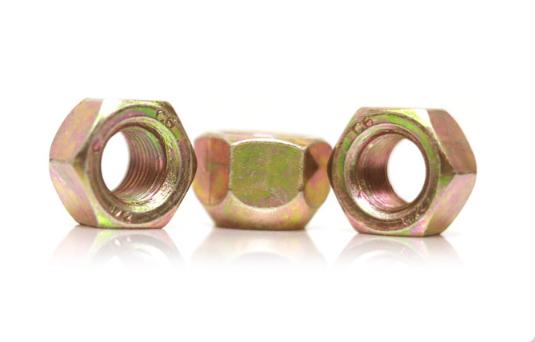

Compared with ordinary hexagonal nuts, conical nuts are generally thicker than hexagonal national standard nuts of the same specifications, and they are generally fine-threaded. The thread pitch is roughly 1.5 mm and 2.0 mm. The appearance is the same as that of hexagonal nuts, but there will be a taper at one end of the conical nut
