Neodymium Rod Magnet


Custom Neodymium Magnet Rod Supplier and Manufacturer

Rod magnets are made from high power magnets and stainless tubes by well welding and polishing, zero leakage and waterproof. After 4 times of polishing processes, the roughness can meet Ra0.6, widely used in food and pharma- ceuticals industry.

Dongguan KENENG International Trading Co., Ltd is located in rare earth raw material processing center of China. KENENG has 15 years experience in magnet rod design, manufacturing, coating and export. we have won a good reputation in this industry for our excellent and stable quality, prompt delivery and fast response.

KENENG is a professional magnet rod manufacturer. We can manufacturer neodymium magnet, single-sided magnet, rubber magnet, ferrite black magnet, circular strong magnet, ring strong magnet, countersunk strong magnet, etc., and has a complete and scientific quality management system. KENENG has always been recognized by the industry for its integrity, strength, and high product quality.

We have MSDS /ROHS/REACH/ISO 9001 certificates.

Are You an OEM Manufacturer?

Yes

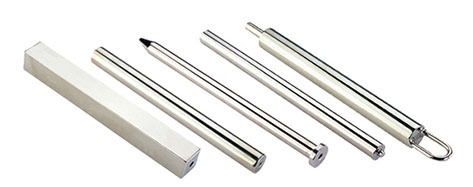

Neodymium Rod Magnet Display

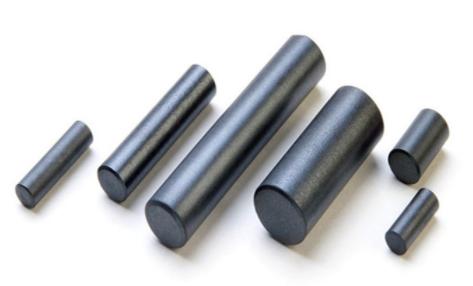

Custom Neodymium Rod Magnet

Cylindrical magnets have a circular cross-section and straight parallel sides, while it also has a hollow central portion with straight parallel sides. Magnetic bar is mainly used to remove ferromagnetic impurities in powder, granular and liquid or slurry, widely used in ceramics, electric power, mining, plastic, chemical, rubber, pharmaceutical, food, environmental protection, pigment, dye, electronics, metallurgy and other industries.

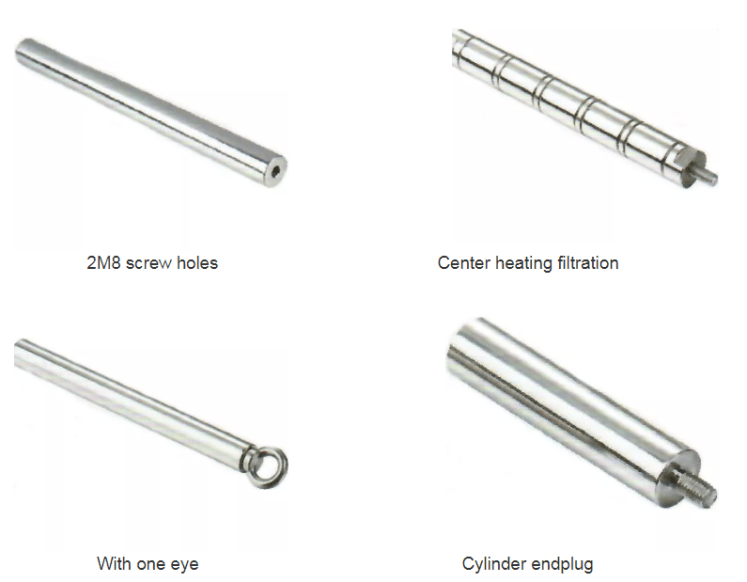

We are able to provide magnets in different shapes and sizes, and can customize the magnets according to customer requirements. We can support magnet bars with internal thread, external thread, external handle, external rings and other customized styles.

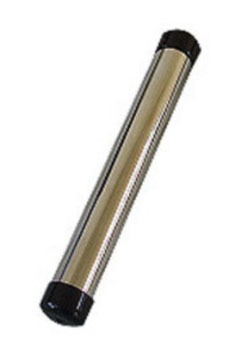

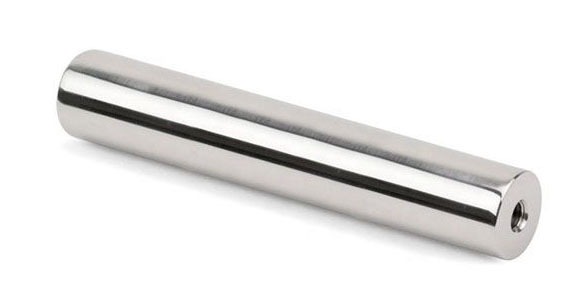

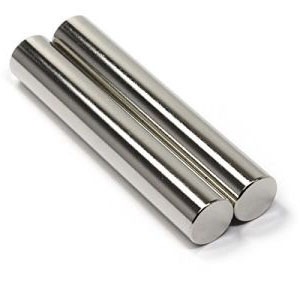

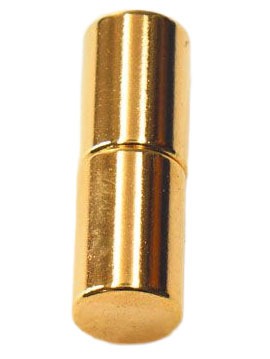

Neodymium Rod magnet

If you have any needs, please contact KENENG, we will provide you with the best quality service.

Types of customization you can choose from

Neodymium magnet, also known as NdFeB magnet, is a tetetic crystal system made of Neodymium, iron and boron (Nd2Fe14B). In 1982, Sumitomo Special Metals’ Misaki Sagawa discovered neodymium magnets. The magnetic energy product (BHmax) of this magnet was greater than that of a samarium cobalt magnet, making it the largest material in the world at the time. Later, Sumitomo Special Metals successfully developed the powder metallurgy process and general motors successfully developed a melt-spinning process to make Ndfeb magnets. The magnet is now the second most magnetic permanent holmium zero magnets and the most commonly used rare earth magnet. Ndfeb magnets are widely used in electronic products, such as mobile phones, hard disks, earphones and battery-powered tools.

Materials

  • NdFeB: N35 up to the strongest N52 magnet grade available.
  • Ferrite
  • Alnico

Type of Magnet, Shape And Application

Tolerance And Working Temperature

  • ±1%
  • 80-350℃

Finishing

  • Plating(Zinc, Nickle, Gold)

Advantage

  • * Zero leakage and waterproof

Surface GaussComposites And Size

  • Up to 14000Gs
  • SUS304/316/316L
  • Outer Diameter:1~ 100mm
  • Length: As per customers’ requirement

Materials we can use on Neodymium Rod Magnet

The relationship between the diameter and max gauss value is as below:

6000
GS
7000
GS
8000
GS
10000
GS
11000
GS
13000
GS
Ø16
Ø19
Ø22
Ø25
Ø28
Ø32
Ø38
Ø50
Ø63
Ø100

Related Products

Neodymium Magnet Rod Manufacturer in China

Our neodymium magnet bar is made of high quality 304 ~ 316 stainless steel tube and rare earth neodymium iron boron magnetic, and adopts a special production method.  It can be combined on a fixed frame to form a magnetic filter.  When the material containing iron passes through, it is attracted by the magnetic bar, and the material containing iron is firmly adsorbed on the wall of the magnetic bar, so as to ensure the integrity of the equipment and the safety of the product.

KENENG is a magnet, strong magnetic, single magnetic, hook magnet, fishing magnet, ferrite, bread magnet, polishing magnetic ball, magnetic frame, magnetic bar, samarium cobalt magnetic, rubber magnetic, teaching magnet, magnetic tile and other products professional production and processing company, has a complete scientific quality control system.

We can also customize the neodymium rod magnets according to your specific specifications, send us special requirements or contact us, and we will help you determine the most cost-effective solution for your project.

FAQ

1) The diameter of the standard cylindrical magnetic rod is 25mm (1 inch), and the length can be processed according to customer requirements, and the longest can reach 2500mm. Square or other magnetic rods of different shapes and sizes are also available.

2) 304 or 316L seamless stainless steel pipes are used, and the surface can be polished to meet the special requirements in food, pharmaceutical and other fields.

3)The standard working temperature is ≤ 80 ℃, and the maximum working temperature can reach 350 ℃ under special requirements.

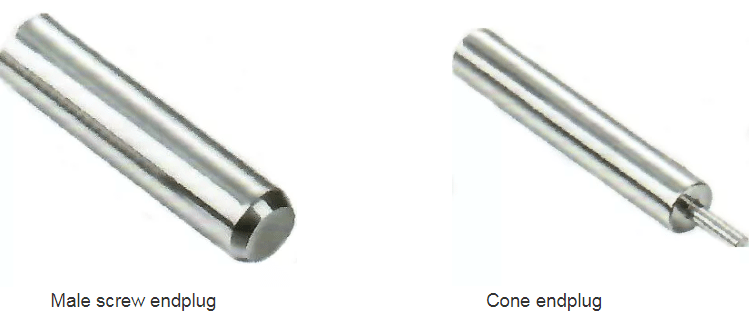

4) Diversified design of both ends – tips, threaded holes, studs, etc.

5)Ferrite permanent magnets and rare earth permanent magnets of different brands can be used to produce magnetic rods with different surface magnetism to meet the needs of customers. The maximum surface magnetism of d25mm magnetic rod can reach 13000gs.

Magnetic rods are mainly used in magnetic separators composed of magnetic frames, which can effectively absorb iron impurities and small metal particles in loose or flowing raw materials.

Application industries of Neodymium Rod Magnet

For example:

Neodymium rod and cylinder magnets are suitable for a variety of applications. From process and metalworking applications to exhibitions, audio equipment, sensors, motors, generators, medical devices, magnetically coupled pumps, hard drives, OEM equipment and more.

applications of Neodymium Rod magnet
