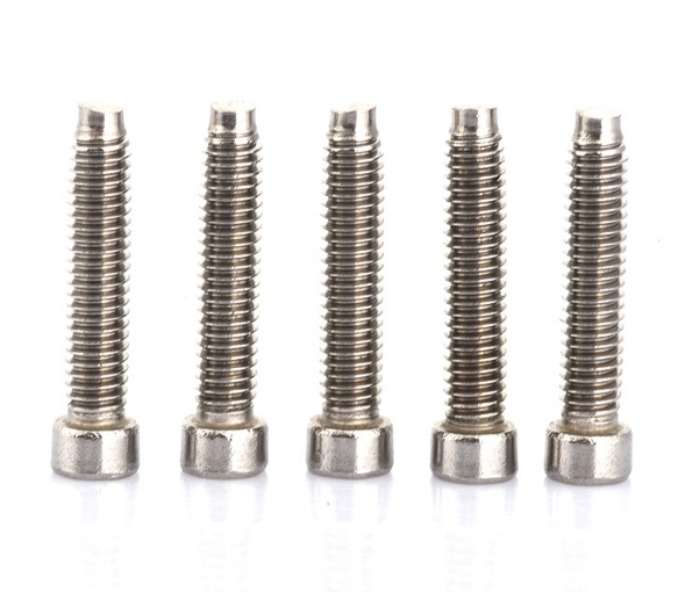

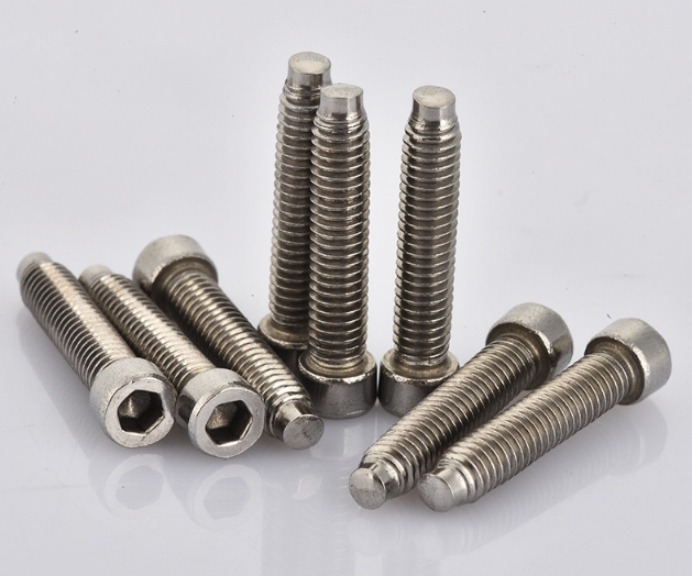

Cap Socket Head Machine Screws

  • Size: M2~M20
  • Material: Stainless steel
  • Finishing: plain
  • Processing: Cold heading

Are You an OEM Manufacturer?

Yes

Specifications of Cap Socket Head Machine Screws

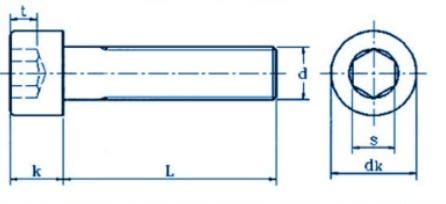

specifications of cap socket head machine screw

Nominal diameter(d) Pitch(P) Head diameter(dk) Head thickness(k) Internal hexagonal opposite side(S) Slot depth(t)
max min max min max min min
M1.4 0.3 2.74 2.46 1.4 1.26 1.36 1.32 0.6
M1.6 0.35 3.14 2.86 1.6 1.46 1.56 1.52 0.7
M2 0.4 3.98 3.62 2 1.86 1.56 1.52 1
M2.5 0.45 4.68 4.32 2.5 2.36 2.06 2.02 1.1
M3 0.5 5.68 5.32 3 2.86 2.58 2.52 1.3
M4 0.7 7.22 6.78 4 3.82 3.08 3.02 2
M5 0.8 8.72 8.28 5 4.82 4.095 4.02 2.5
M6 1 10.22 9.78 6 5.7 5.14 5.02 3
M8 1.25 13.27 12.73 8 7.64 6.14 6.02 4
M10 1.5 16.27 15.73 10 9.64 8.175 8.025 5
M12 1.75 18.27 17.73 12 11.57 10.18 10.025 6
M14 2 21.33 20.67 14 12.57 12.21 12.032 7
M16 2 24.33 23.67 16 15.57 14.21 14.032 8
M18 2.5 27.33 26.67 18 17.57 14.21 14.032 9
M20 2.5 30.33 19.67 20 19.48 17.23 17.05 10

Advantages of KENENG Cap Socket Head Machine Screws

  1. High quality material
  2. Complete specifications, a variety of options
  3. No fracture, crack, rust, etc

Applications of Cap Socket Head Machine Screws

The cap socket head screws are widely used in musical instruments, audio, machinery, electrical appliances, electronics, etc.
