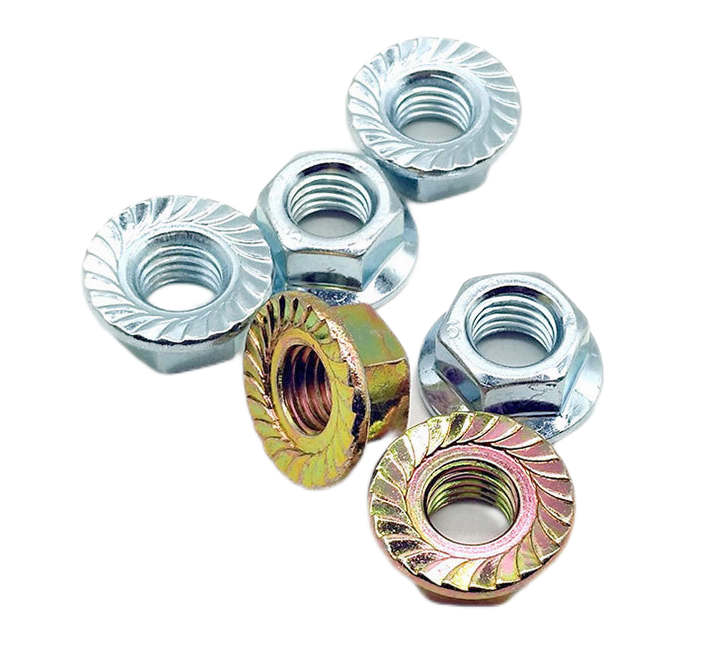

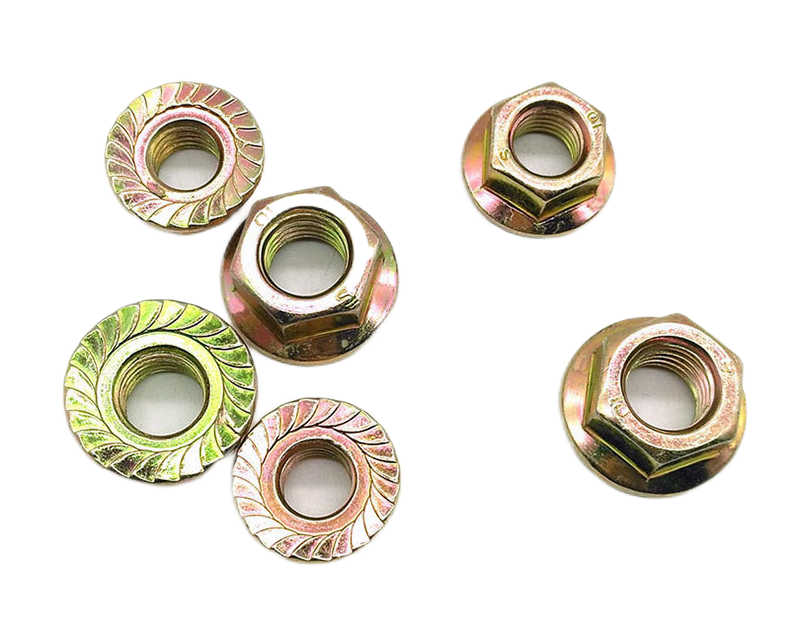

Custom Flange Nut
- Size: M4, M6, M8, M10, M12, M14, M16, M20
- Material: ML08 SWRCH35K 10B21
- Grade: 6, 8, 10
- Hardness: 26-36 HRC
- Finishing: Plating (Zinc, Nickel, etc.), black
- Standard: GB6177.1 GB6177.2 (Fine thread)
- Application: Lifting machines, pressure machines, and vibrations are generally used, and the car’s front and rear wheel shaft screws are also used.

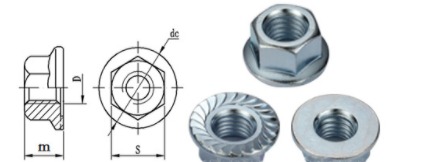

Specifications of Flange Nut
| Model | Specification | Tooth spacing | S | Thickness | dc | Effective force distance/(N.m) level 8 | Effective force distance/(N.m) level 10 | ||||||||
| D | P | max | min | max | min | max | min | Level 8 Level 10 min | First screw in Max | First unscrew Min | The fifth unscrew Min | First screw in Max | First unscrew Min | The fifth unscrew Min | |
| GB6187.1 | M5 | 0.8 | 8 | 7.78 | 6.2 | 5.7 | 11.8 | 9.8 | 11.3 | 1.6 | 0.29 | 0.08 | 2.1 | 0.35 | 0.24 |
| GB6187.1 | M6 | 1 | 10 | 9.78 | 7.3 | 6.8 | 14.2 | 12.2 | 13.6 | 3 | 0.45 | 0.3 | 4 | 0.55 | 0.4 |
| GB6187.1 | M8 | 1.25 | 13 | 12.73 | 9.4 | 8.74 | 17.9 | 15.8 | 17.2 | 6 | 0.85 | 0.6 | 8 | 1.15 | 0.8 |
| GB6187.2 | M8 | 1 | 13 | 12.73 | 9.4 | 8.74 | 17.9 | 15.8 | 17.2 | 6 | 0.85 | 0.6 | 8 | 1.15 | 0.8 |
| GB6187.1 | M10 | 1.5 | 15 | 14.73 | 11.4 | 10.34 | 21.8 | 19.6 | 21.1 | 10.5 | 1.5 | 1 | 14 | 2 | 1.4 |
| GB6187.2 | M10 | 1.25 | 15 | 14.73 | 11.4 | 10.34 | 21.8 | 19.6 | 21.1 | 10.5 | 1.5 | 1 | 14 | 2 | 1.4 |
| GB6187.2 | M10 | 1 | 15 | 14.73 | 11.4 | 10.34 | 21.8 | 19.6 | 21.1 | 10.5 | 1.5 | 1 | 14 | 2 | 1.4 |
| GB6187.1 | M12 | 1.75 | 18 | 17.73 | 13.8 | 12.57 | 26 | 23.8 | 25.3 | 15.5 | 2.3 | 1.6 | 21 | 3.1 | 2.1 |
| GB6187.2 | M12 | 1.5 | 18 | 17.73 | 13.8 | 12.57 | 26 | 23.8 | 25.3 | 15.5 | 2.3 | 1.6 | 21 | 3.1 | 2.1 |
| GB6187.2 | M12 | 1.25 | 18 | 17.73 | 13.8 | 12.57 | 26 | 23.8 | 25.3 | 15.5 | 2.3 | 1.6 | 21 | 3.1 | 2.1 |
| GB6187.1 | M14 | 2 | 21 | 20.67 | 15.9 | 14.8 | 29.9 | 27.6 | 29.1 | 24 | 3.3 | 2.3 | 31 | 4.4 | 3 |
| GB6187.2 | M14 | 1.5 | 21 | 20.67 | 15.9 | 14.8 | 29.9 | 27.6 | 29.1 | 24 | 3.3 | 2.3 | 31 | 4.4 | 3 |
| GB6187.1 | M16 | 2 | 24 | 23.67 | 18.3 | 17.2 | 34.5 | 31.9 | 33.5 | 32 | 4.5 | 3 | 42 | 6 | 4.2 |
| GB6187.2 | M16 | 1.5 | 24 | 23.67 | 18.3 | 17.2 | 34.5 | 31.9 | 33.5 | 32 | 4.5 | 3 | 42 | 6 | 4.2 |
| GB6187.1 | M18 | 2.5 | 27 | 26.16 | 19.6 | 18.6 | 38 | 37.2 | 37.2 | 42 | 6 | 4.2 | 56 | 8 | 5.5 |
| GB6187.2 | M18 | 1.5 | 27 | 26.16 | 19.6 | 18.6 | 38 | 37.2 | 37.2 | 42 | 6 | 4.2 | 56 | 8 | 5.5 |
| GB6187.1 | M20 | 2.5 | 30 | 29.16 | 22.4 | 20.3 | 42.8 | 39.9 | 41.5 | 54 | 7.5 | 5.3 | 72 | 10.5 | 7 |
| GB6187.2 | M20 | 1.5 | 30 | 29.16 | 22.4 | 20.3 | 42.8 | 39.9 | 41.5 | 54 | 7.5 | 5.3 | 72 | 10.5 | 7 |
Advantages of our Custom Flange Nut:
- Various specifications, a large number of stock, meet customers’ requirements, and samples can be provided for different industries.
- We focus on every detail, in strict accordance with industry-standard production and qualified products.
- High hardness and strength, not easy sliding tooth, craft exquisite.
Why Choose KENENG Custom Flange Nut
KENENG’s monthly production capacity exceeds 10 million pieces.
We produce a wide range of products at reasonable prices, and ensure product quality.
Order process of Stamping part: Receive CAD or 3D design → Quotation → Signing Pi → Receive dispose → Make product → Open molding → Trial production → Mass production → Receive Balance → Delivery
