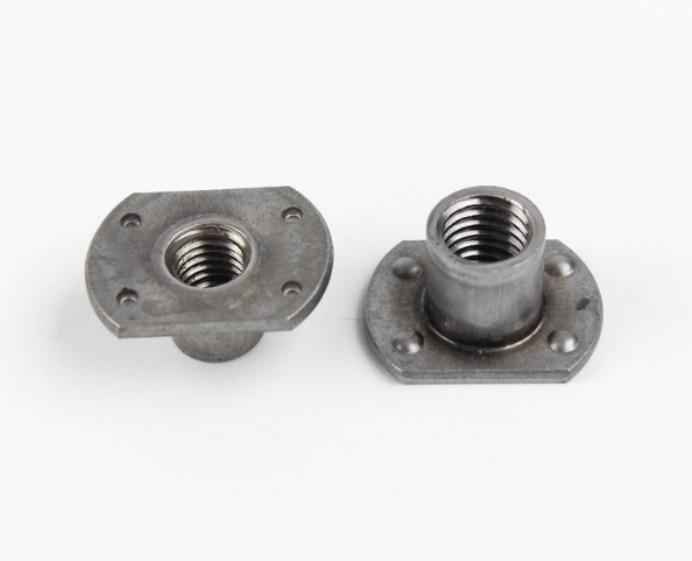

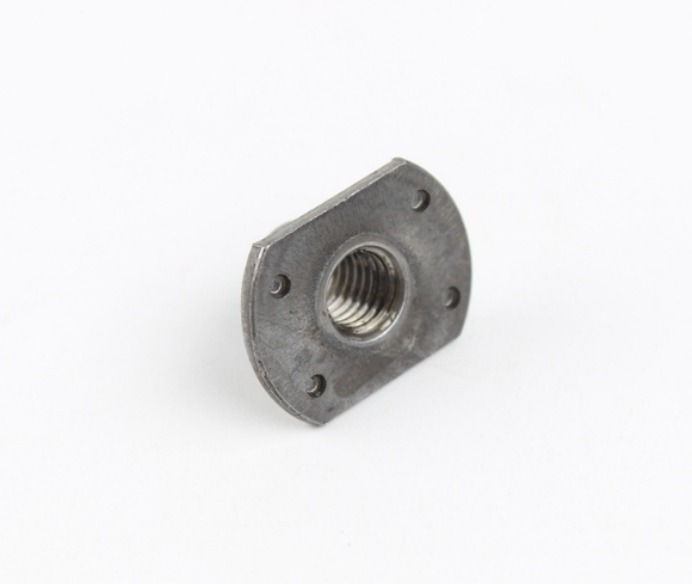

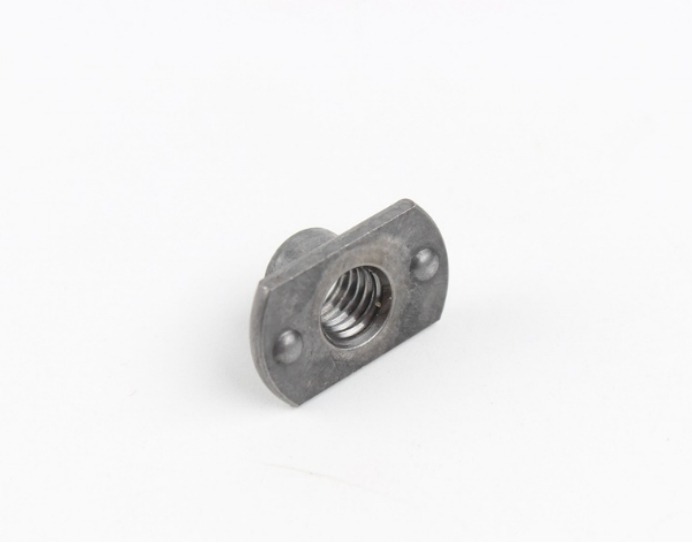

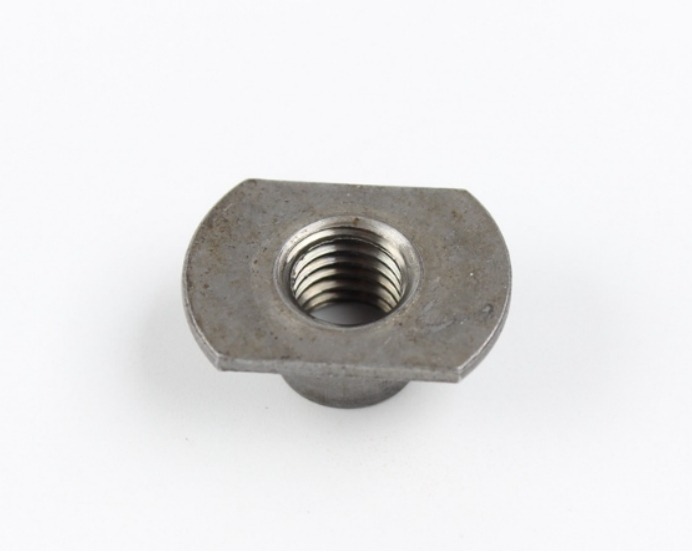

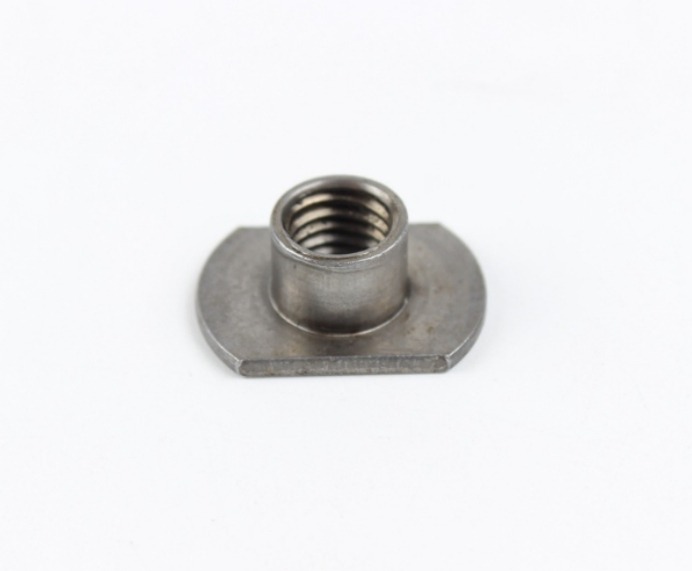

T-slot Nuts
Functions of T-slot Nuts
T-slot nuts, also known as T nuts, are used to secure workpieces or fixtures to the T-slot bed of a machine tool. The T-shaped design allows them to be inserted into the T-slot and tightened down using a bolt or screw, providing a secure hold for the workpiece or fixture. They are commonly used for milling machines, drill presses, and other types of machine tools.
Specifications of T-slot Nuts
|
Nominal Diameter (d) |
Pitch | A | B | D | H | t |
| M4 | 0.7 | 23 | 12 | 5.4 | 6 | 1.2 |
| M5 | 0.8 | 24 | 12 | 6.2 | 7 | 1.2 |
| M6 | 1 | 26 | 14 | 7.8 | 8 | 1.6 |
| M8 | 1.25 | 28 | 14 | 9.5 | 10 | 1.6 |
| M10 | 1.5 | 32 | 19 | 12.5 | 11.5 | 2 |
Why Choose KENENG As Your T-slot Nuts Supplier
KENENG produces a wide range of products at reasonable prices, and ensures product quality.
KENENG can produce fasteners including screws, studs, nuts, flat washers and rivets of various specifications. Various non-standard CNC parts, stamping parts, injection molding parts, nylon screws, nylon nuts, nylon studs, etc.
Order process of Stamping part: Receive CAD or 3D design → Quotation → Signing Pi → Receive dispose → Make product → Open molding → Trial production → Mass production → Receive Balance → Delivery
