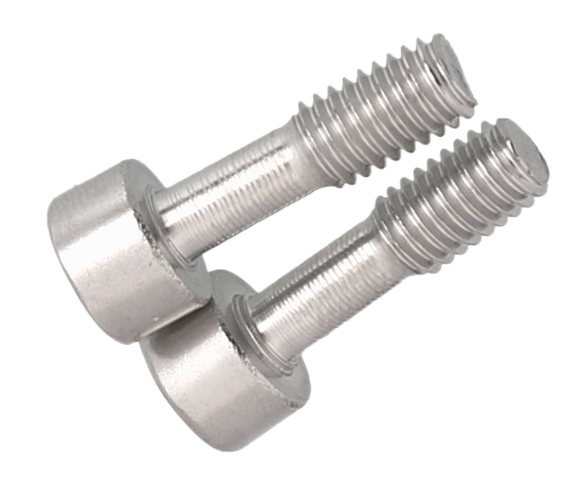

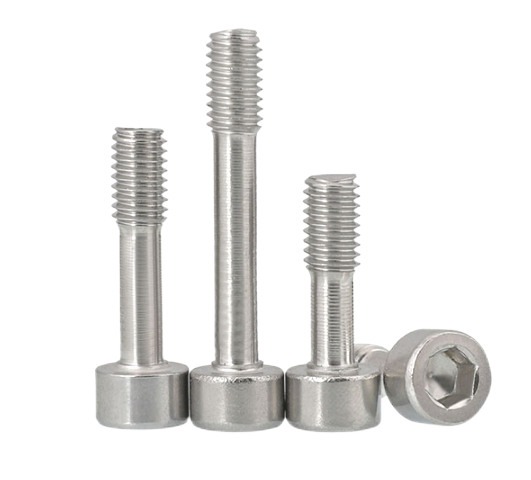

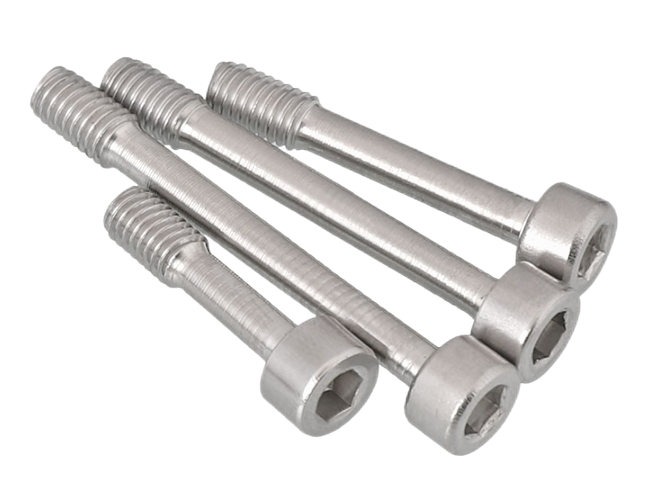

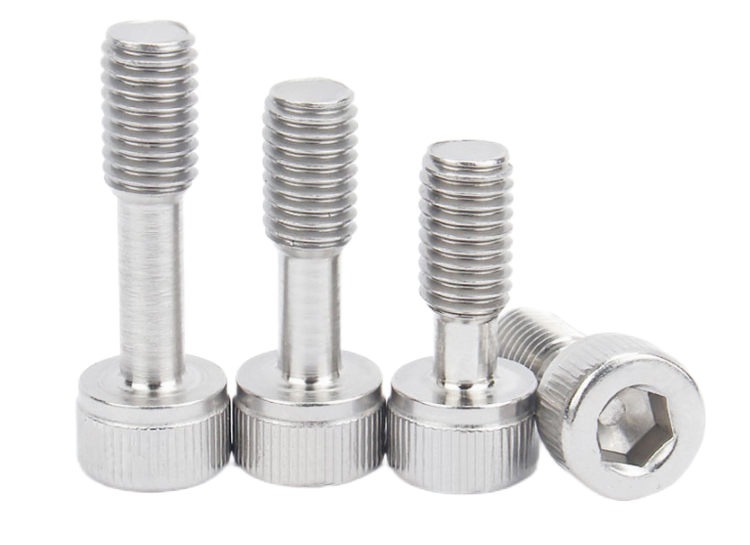

Custom Hex Socket Captive Screw

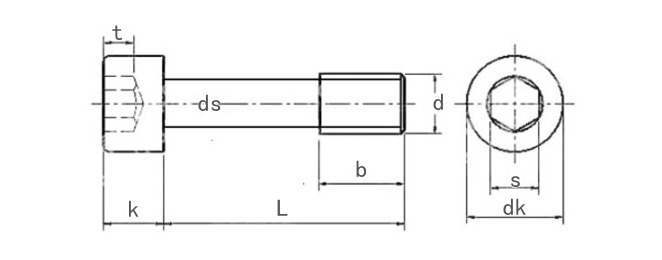

Specifications of Hex Socket Captive Screw
| Thread specification | pitch | ds | dk | k | t | b | ||
| max | min | max | min | |||||
| M3 | 0.5mm | 2mm | 1.86mm | 5.5mm | 2.92mm | 1.3mm | 4.6mm | 4mm |
| M4 | 0.7mm | 2.8mm | 2.66mm | 7mm | 3.91mm | 2mm | 6mm | 5.6mm |
| M5 | 0.8mm | 3.5mm | 3.32mm | 8.5mm | 4.91mm | 2.5mm | 8mm | 7.5mm |
| M6 | 1mm | 4.5mm | 4.32mm | 10mm | 5.85mm | 3mm | 10mm | 9.65mm |
| M8 | 1.25mm | 5.5mm | 5.32mm | 12mm | 7.82mm | 4mm | 12mm | 11.65mm |
| M10 | 1.5mm | 7mm | 6.78mm | 16mm | 9.82mm | 5mm | 15mm | 14.65mm |
Advantages of Custom Hex Socket Captive Screw
- Material: the use of high-quality stainless steel wire, corrosion-resistant, and durable.
- Advanced automation equipment production technology, screw section smooth, deep thread, uniform force, thread more solid.
Why Select KENENG Custom Hex Socket Captive Screw
KENENG has complete lathes, punches and thread rolling machines. Production and testing of parts can be carried out. We have excellent quality inspection capability: we can provide salt spray, film thickness and various inspection reports.
KENENG’s monthly production capacity exceeds 10 million pieces.
We have specialized designers and production personnel and complete production lines.
