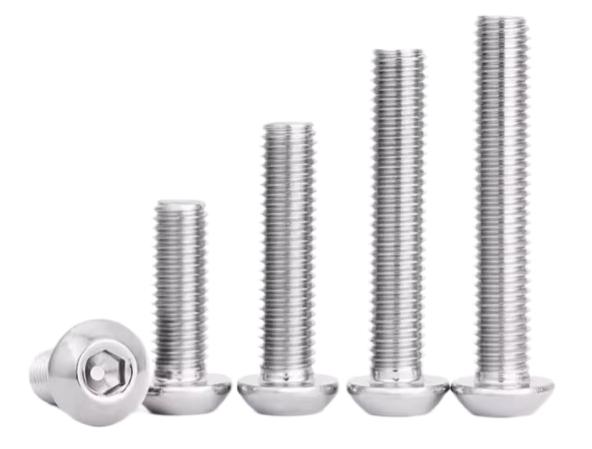

Hex Socket Button Head Screw
- Size: M1.6~M16, length3~150mm
- Material: Stainless steel, Carbon steel
- Grade: 304SS, 316SS, 4.8, 8.8, 10.9, 12.9

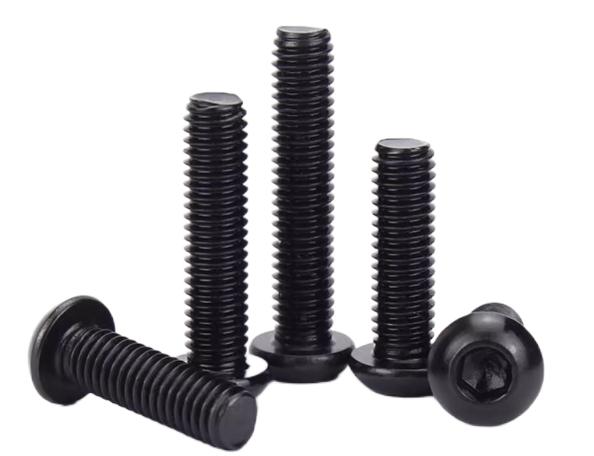

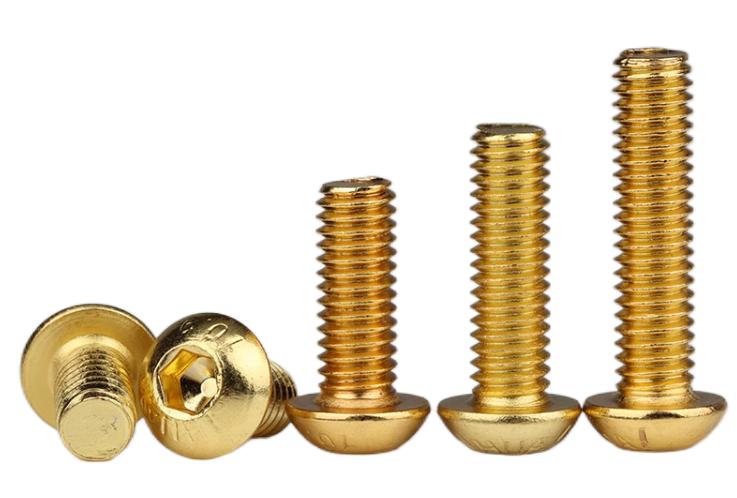

- Finishing: Galvanized, Nickle plated, black oxide, titanize(gold)
- Applications: Widely used in machinery, furniture, construction, communication, industry, etc.
- Processing: Forge

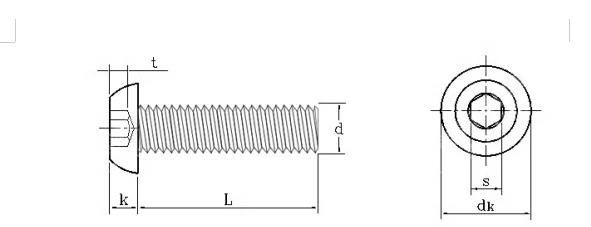

Specifications of Hex Socket Button Head Screw
| Head diameter (dk) | Head depth (k) | Hexagonal opposite side (s) | Hexagonal depth(t) | |||||
| Nominal diameter(d) | Pitch(p) | max | min | max | min | max | min | min |
| M2 | 0.4mm | 3.8mm | 3.5mm | 1.8mm | 1.5mm | – | – | – |
| M2.5 | 0.45mm | 4.6mm | 4.1mm | 1.9mm | 1.5mm | – | – | – |
| M3 | 0.5mm | 5.7mm | 5.4mm | 1.65mm | 1.40mm | 2.045mm | 2.020mm | 1.04mm |
| M4 | 0.7mm | 7.6mm | 7.24mm | 2.20mm | 1.95mm | 2.56mm | 2.52mm | 1.3mm |
| M5 | 0.8mm | 9.5mm | 9.14mm | 2.75mm | 2.50mm | 3.071mm | 3.020mm | 1.56mm |
| M6 | 1mm | 10.5mm | 10.07mm | 3.3mm | 3.0mm | 4.084mm | 4.020mm | 2.08mm |
| M8 | 1.25mm | 14mm | 13.57mm | 4.4mm | 4.1mm | 5.084mm | 5.020mm | 2.6mm |
| M10 | 1.5mm | 17.5mm | 17.07mm | 5.5mm | 5.2mm | 6.095mm | 6.020mm | 3.12mm |
| M12 | 1.75mm | 21mm | 20.48mm | 6.6mm | 6.24mm | 8.115mm | 8.025mm | 4.16mm |
| M16 | 2mm | 28mm | 27.48mm | 8.80mm | 8.44mm | 10.115mm | 10.025mm | 5.2mm |
Advantages of KENENG as a Hex Socket Button Head Screw Manufacturer
We produce a wide range of products at reasonable prices and ensure product quality.
KENENG can produce fasteners including screws, studs, nuts, flat washers and rivets of various specifications. Various non-standard CNC parts, stamping parts, injection molding parts, nylon screws, nylon nuts, nylon studs, etc.
The ordering process of Lathe parts (non-standard parts): Receive CAD or 3D design → Quotation → Signing Pi → Receive deposit → Make sample, approval by customer → Mass production → Receive Balance → Delivery
Packing:
Small box/ plastic bag + carton + pallet, or according to customer requirements
