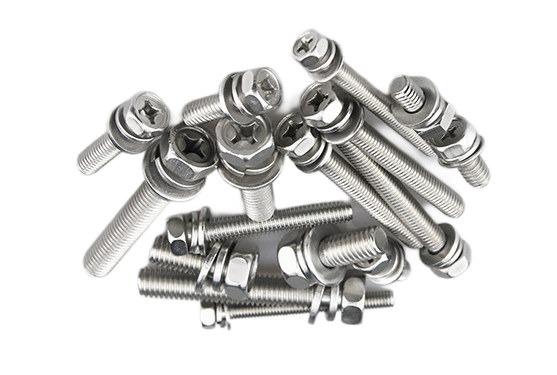

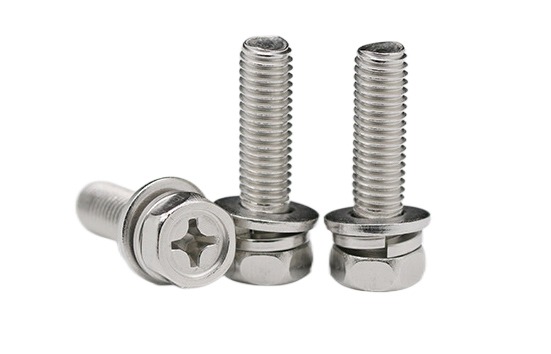

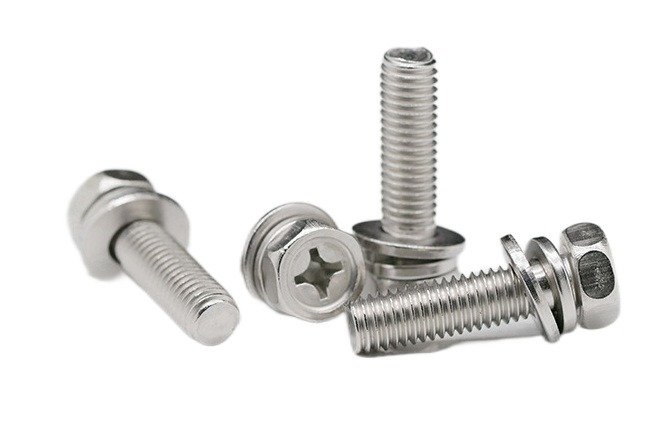

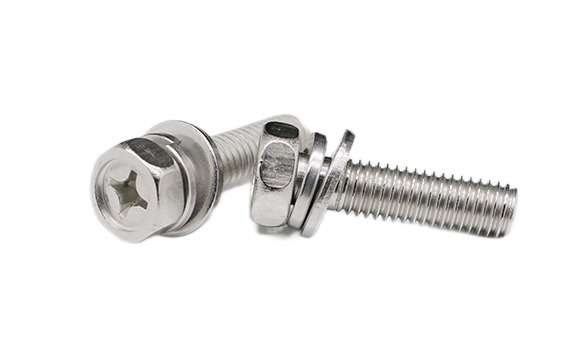

Hex head Cross SEM screw


  • Size: M3~M16, or Customized
  • Material: Stainless steel
  • Grade:  A2-70 / 304
  • Finish: Plain, Passivated
  • Standard: GB9074.13

Are You an OEM Manufacturer?

Yes

Packing:

Plastic bag /Small box + Carton, or as per customer’s requirements.

Specifications of Hex head Cross SEM screw

SpecificationOuter hexagon opposite sidehead thicknessFlat pad thicknessFlat pad outer diameterThickness of spring pad
M35.3-5.5mm1.9-2.1mm1.45-0.55mm6.64-7mm0.7-0.9mm
M46.64-7mm2.6-3mm0.7-0.9mm8.64-9mm1.2-1.4mm
M57.64-8mm3.26-3.74mm0.9-1.1mm9.64-10mm1.2-1.4mm
M69.64-10mm3.76-4.24mm1.4-1.8mm11.57-12mm1.5-1.7mm
M812.57-13mm5.06-5.54mm1.8-2.2mm15.57-16mm1.9-2.1mm
M1015.73-16mm6.8-7.1mm2.3-2.5mm19.55-20mm2.35-2.65mm

Advantages of Hex head Cross SEM screw

  1. The installation process is not easy to appear slip phenomenon, use the tool to install quickly.
  2. Smooth surface, deep thread, uniform force, and rotation process is not easy to slip.
  3. Strong and durable, not easy to rust.

Materials we can use on Hex head Cross SEM screw
