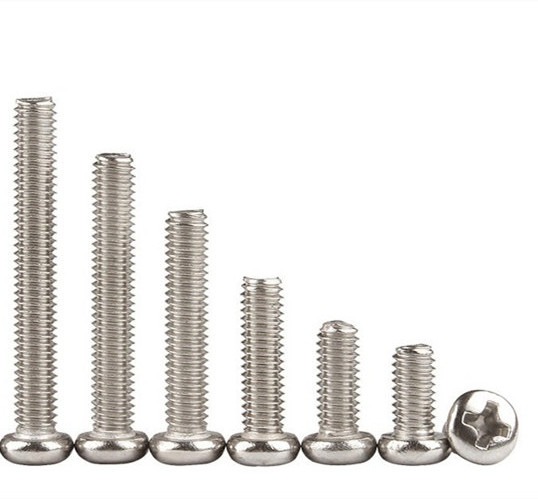

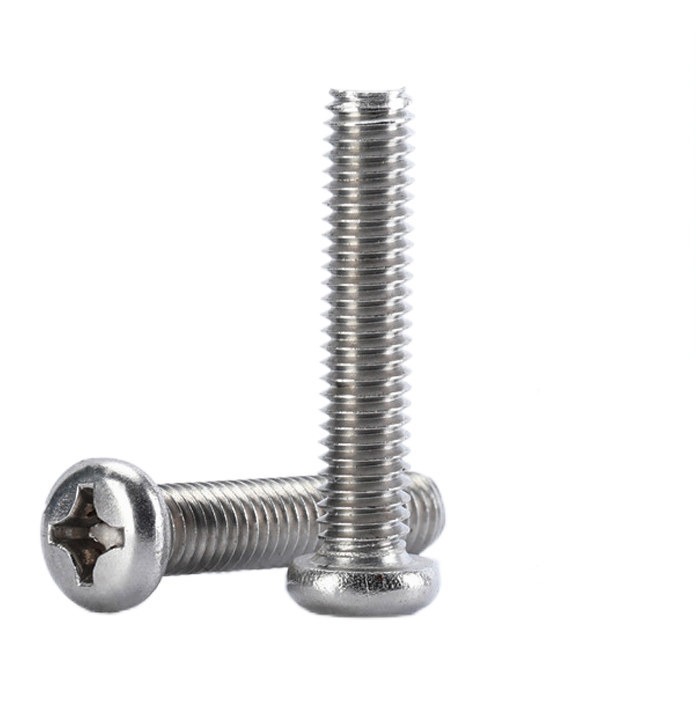

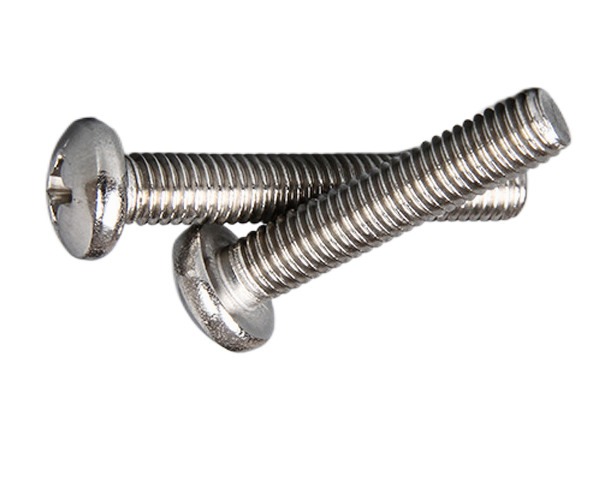

Custom Pan Head Philip Machine Screw
Specifications of Pan head Philip Machine Screw
| Specification | pitch | dk≈ | k≈ |
| 3/16 | 24mm | 7.8mm | 4.5mm |
| 1/4 | 20mm | 9.5mm | 6mm |
| 5/16 | 18mm | 10.9mm | 7.9mm |
| 1/8 | 40mm | 5.5mm | 3mm |
| 5/32 | 32mm | 6.2mm | 3.8mm |
| 7/16 | 14mm | 15.6mm | 11mm |
| 1/2 | 12(13)mm | 19mm | 12.5mm |
| 5/8 | 11mm | 22mm | 15.5mm |
| 3/8 | 16mm | 14mm | 9.4mm |
| 10# | 32mm | 7.7mm | 5mm |
| 8# | 32mm | 6.7mm | 4.2mm |
| 6# | 32mm | 5.5mm | 3.5mm |
| 4# | 40mm | 4.5mm | 2.7mm |
| 2# | 56mm | 3.6mm | 2mm |
| 0# | 80mm | 2.6mm | 1.5mm |
| metric system | Coarse thread | Fine thread | ultra fine thread | Nominal Diameter | Coarse thread | Fine thread | |
| M3 | 0.5mm | 0.35mm | 4# | 1.9mm | 40 | 48 | |
| M4 | 0.7mm | 0.5mm | 6# | 3.5mm | 32 | 40 | |
| M5 | 0.8mm | 0.5mm | 8# | 4.2mm | 32 | 36 | |
| M6 | 1mm | 0.75mm | 10# | 4.8mm | 24 | 32 | |
| M7 | 1mm | 0.75mm | 12# | 5.5mm | 24 | 28 | |
| M8 | 1.25mm | 1mm | 0.75mm | 1/4in | 6.35mm | 20 | 28 |
| M10 | 1.5mm | 1.25mm | 1mm | 5/16in | 7.94mm | 18 | 24 |
| M12 | 1.75mm | 1.5mm | 1.25mm | 3/8in | 9.53mm | 16 | 24 |
| M14 | 2mm | 1.5mm | 1mm | 7/16in | 11.11mm | 14 | 20 |
| M16 | 2mm | 1.5mm | 1mm | 1/2in | 12.7mm | 13 | 20 |
| M18 | 2.5mm | 2mm | 1.5mm | 9/16in | 14.29mm | 12 | 18 |
| M20 | 2.5mm | 2mm | 1.5mm | 5/8in | 15.86mm | 11 | 18 |
| M22 | 2.5mm | 2mm | 1.5mm | 3/4in | 19.05mm | 10 | 16 |
| M24 | 3mm | 2mm | 1.5mm | 7/8in | 22.23mm | 9 | 14 |
| M27 | 3mm | 2mm | 1.5mm | 1in | 25.4mm | 8 | 12 |
| M30 | 3.5mm | 3mm | 2mm |
Advantages of Pan head Philip Machine Screw
- The installation process is not easy to appear slip phenomenon, use the tool to install quickly.
- Smooth surface, deep thread, uniform force, and rotation process is not easy to slip.
- Strong and durable, not easy to rust.
Why Choose KENENG Custom Pan head Philip Machine Screw
KENENG’s monthly production capacity exceeds 10 million pieces.
We have specialized designers and production personnel and complete production lines.
We produce a wide range of products at reasonable prices, and ensure product quality.
