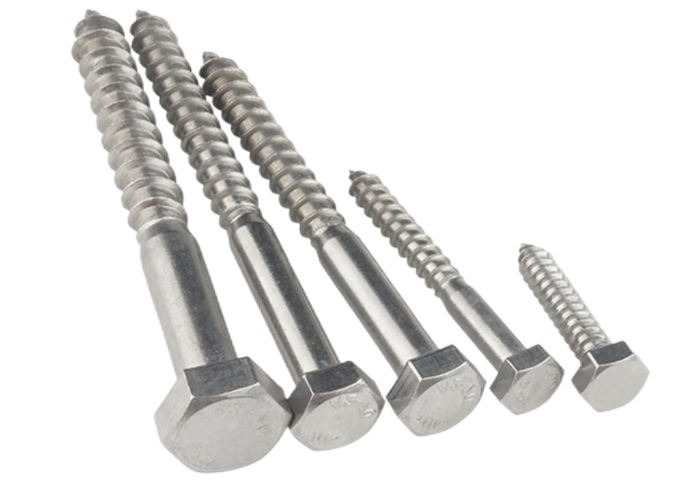

Custom Hex Wood Screw

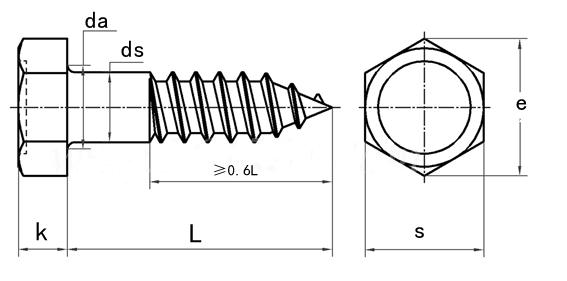

Specifications of Hex Wood Screw
| d | M4 | M5 | M6 | M7 | M8 | M10 | M12 | M16 | M20 | |
| ds | max | 4mm | 5mm | 6mm | 7mm | 8mm | 10mm | 12mm | 16mm | 20mm |
| min | 3.52mm | 4.52mm | 5.52mm | 6.42mm | 7.42mm | 9.42mm | 11.3mm | 15.3mm | 19.3mm | |
| da | max | 5mm | 6mm | 7.2mm | 8.2mm | 10.2mm | 12.2mm | 15.2mm | 19.2mm | 24.4mm |
| k | nominal | 2.8mm | 3.5mm | 4mm | 5mm | 5.5mm | 7mm | 8mm | 10mm | 13mm |
| max | 3.1mm | 3.88mm | 4.38mm | 5.38mm | 5.88mm | 7.45mm | 8.45mm | 10.45mm | 13.9mm | |
| min | 2.5mm | 3.13mm | 3.63mm | 4.63mm | 5.13mm | 6.55mm | 7.55mm | 9.55mm | 12.1mm | |
| s | max=nominal | 7mm | 8mm | 10mm | 12mm | 13mm | 17mm | 19mm | 24mm | 30mm |
| min | 6.64mm | 7.64mm | 9.64mm | 11.57mm | 12.57mm | 16.57mm | 18.48mm | 23.16mm | 29.16mm | |
| e | min | 7.5mm | 8.63mm | 10.89mm | 13.07mm | 14.2mm | 18.72mm | 20.88mm | 26.17mm | 32.95mm |
Advantages of Custom Hex Wood Screw
- Full thread, partial thread available.
- Advanced automation equipment production technology, screw section smooth, deep thread, uniform force, thread more solid.
Why Choose KENENG Custom Hex Wood Screw
Order process of Stamping part: Receive CAD or 3D design → Quotation → Signing Pi → Receive dispose → Make product → Open molding → Trial production → Mass production → Receive Balance → Delivery
The ordering process of Lathe parts (non standard parts): Receive CAD or 3D design → Quotation → Signing Pi → Receive deposit → Make sample, approval by customer → Mass production → Receive Balance → Delivery
The order process of Injection Molding: Receive CAD or 3D design → Quotation → Signing Pi → Receive deposit → Make 3D or Prototype sample → Analyse Molding → Design → Open Molding → Make sample, approval by customer → Mass production → Receive Balance → Delivery
