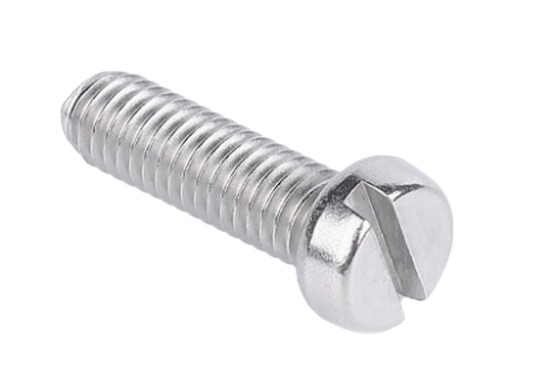

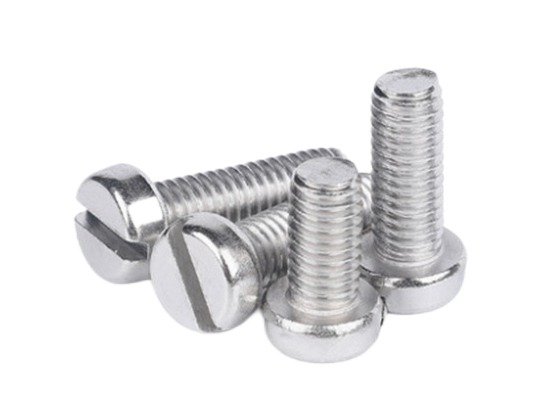

Custom Slot Cheese Head Screw

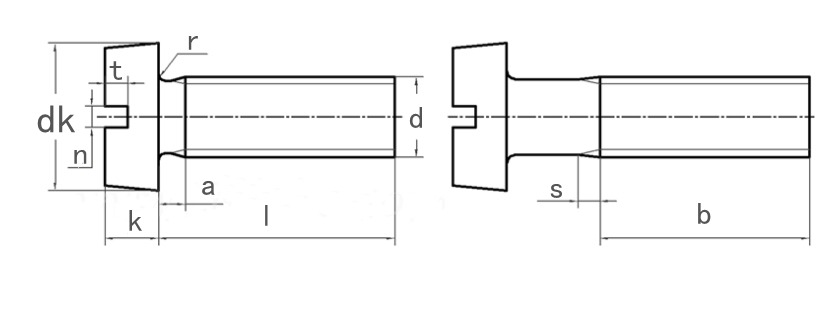

Specifications of Slot Cheese Head Screw
| Thread specification | pitch | a | dk | k | n | t | s | r | ||||
| d | p | max | max = nominal | min | max = nominal | min | nominal | max | min | min | max | min |
| M1.6 | 0.35mm | 0.7mm | 3mm | 2.86mm | 1.1mm | 0.96mm | 0.4mm | 0.6mm | 0.46mm | 0.45mm | 0.9mm | 0.1mm |
| M2 | 0.4mm | 0.8mm | 3.8mm | 3.62mm | 1.4mm | 1.26mm | 0.5mm | 0.7mm | 0.56mm | 0.6mm | 1mm | 0.1mm |
| M2.5 | 0.45mm | 0.9mm | 4.5mm | 4.32mm | 1.8mm | 1.66mm | 0.6mm | 0.8mm | 0.66mm | 0.7mm | 1.1mm | 0.1mm |
| M3 | 0.5mm | 1mm | 5.5mm | 5.32mm | 2mm | 1.86mm | 0.8mm | 1mm | 0.86mm | 0.85mm | 1.25mm | 0.1mm |
| M3.5 | 0.6mm | 1.2mm | 6mm | 5.82mm | 2.4mm | 2.26mm | 1mm | 1.2mm | 1.06mm | 1mm | 1.5mm | 0.1mm |
| M4 | 0.7mm | 1.4mm | 7mm | 6.78mm | 2.6mm | 2.46mm | 1.2mm | 1.51mm | 1.26mm | 1.1mm | 1.75mm | 0.2mm |
| M5 | 0.8mm | 1.6mm | 8.5mm | 8.28mm | 3.3mm | 3.12mm | 1.2mm | 1.51mm | 1.26mm | 1.3mm | 2mm | 0.2mm |
| M6 | 1mm | 2mm | 10mm | 9.78mm | 3.9mm | 3.6mm | 1.6mm | 1.91mm | 1.66mm | 1.6mm | 2.5mm | 0.25mm |
| M8 | 1.25mm | 2.5mm | 13mm | 12.73mm | 5mm | 4.7mm | 2mm | 2.31mm | 2.06mm | 2mm | 3.2mm | 0.4mm |
| M10 | 1.5mm | 3mm | 16mm | 15.73mm | 6mm | 5.7mm | 2.5mm | 2.81mm | 2.56mm | 2.4mm | 3.8mm | 0.4mm |
Advantages of KENENG Custom Slot Cheese Head Screw
KENENG has complete lathes, punches and thread rolling machines. Production and testing of parts can be carried out. We have excellent quality inspection capability: we can provide salt spray, film thickness and various inspection reports.
KENENG’s monthly production capacity exceeds 10 million pieces.
We have specialized designers and production personnel and complete production lines.
