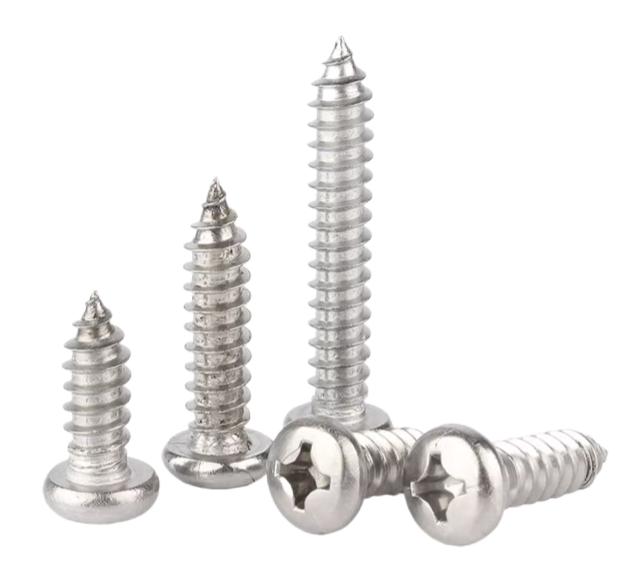

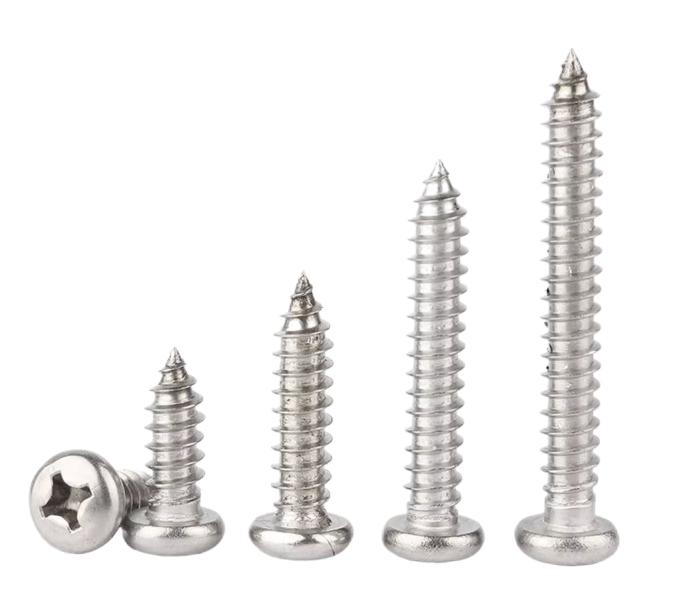

Pan Head Philip Self-tapping Screw
- Size: M1-M8
- Material: Stainless steel (304SS,316SS), Carbon steel(can be hardened)
- Standard: DIN, ISO, ASTM, ASME, GB

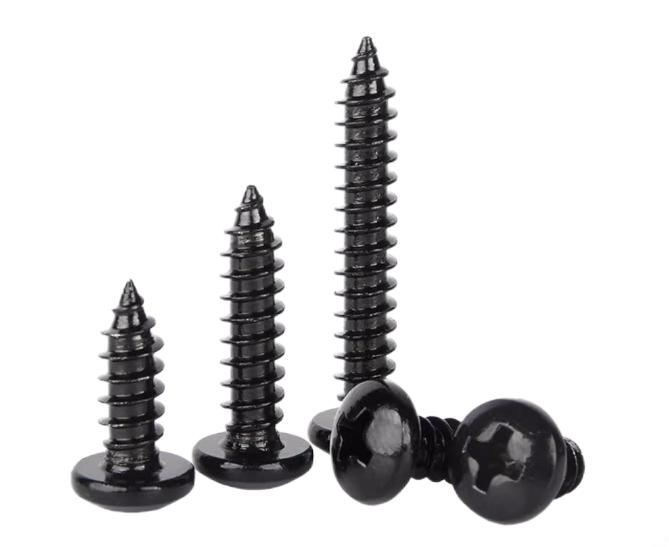

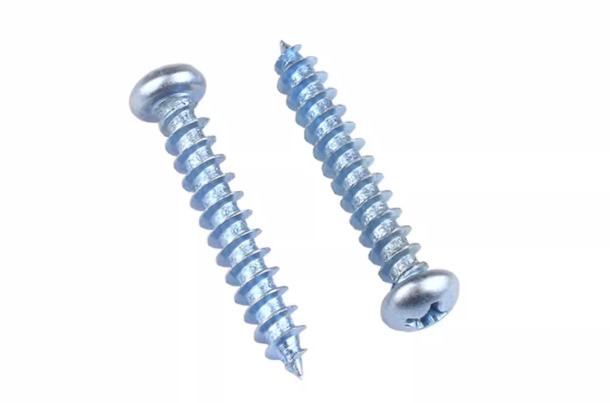

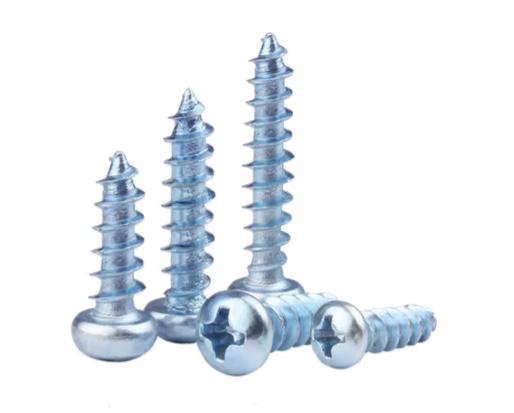

- Finishing: plain, black oxide, galvanized, Nickle plated
- Application: It is widely used in aviation, shipbuilding, automobile manufacturing, electrical appliances, chemical machinery, railway, construction engineering, mechanical and electrical equipment installation, instruments and meters, mechanical equipment, medical treatment, chassis cabinet, furniture, electronics and other industries.

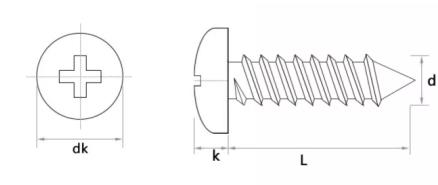

Specifications of Pan Head Philip Self-tapping Screw
| thread diameterd (d) | M1.2 | M1.4 | M1.7 | M2 | M2.2 | M2.6 | M3 | M3.5 | M4 | M4.2 | M5 | M6 | M8 |
| head diameter(dk) | 1.9 | 2.3 | 3.1 | 3.4 | 3.8 | 4.2 | 5.3 | 6.4 | 6.9 | 7.8 | 9.0 | 11.9 | 13.0 |
| head thickness(k) | 0.6 | 0.8 | 1.0 | 1.3 | 1.5 | 1.7 | 1.9 | 2.1 | 2.3 | 2.4 | 2.8 | 4.0 | 5.0 |
Advantages of Pan Head Philip Self-tapping Screw
- Smooth surface without burrs, excellent quality;
- Clear and complete thread, durable
- Corrosion and rust resistance
