Custom Pop Rivet

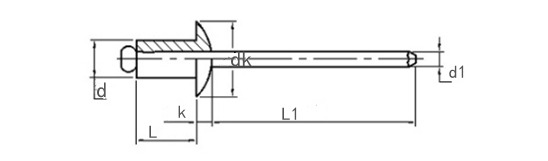

Specifications of Pop Rivet
| d | dk | k | d1 | L1 | |||
| Nominal d | max | min | max | min | max | max | |
| 2.4mm | 2.48mm | 2.25mm | 5mm | 4.2mm | 1mm | 1.55mm | 25mm |
| 3mm | 3.08mm | 2.85mm | 6.3mm | 5.4mm | 1.3mm | 2mm | 25mm |
| 3.2mm | 3.28mm | 3.05mm | 6.7mm | 5.8mm | 1.3mm | 2mm | 25mm |
| 4mm | 4.08mm | 3.85mm | 8.4mm | 6.9mm | 1.7mm | 2.45mm | 27mm |
| 4.8mm | 4.88mm | 4.65mm | 10.1mm | 8.3mm | 2mm | 2.95mm | 27mm |
| 5mm | 5.08mm | 4.85mm | 10.5mm | 8.7mm | 2.1mm | 2.95mm | 27mm |
| 6mm | 6.08mm | 5.85mm | 12.6mm | 10.8mm | 2.5mm | 3.4mm | 27mm |
| 6.4mm | 6.48mm | 6.25mm | 13.4mm | 11.6mm | 2.7mm | 3.9mm | 27mm |

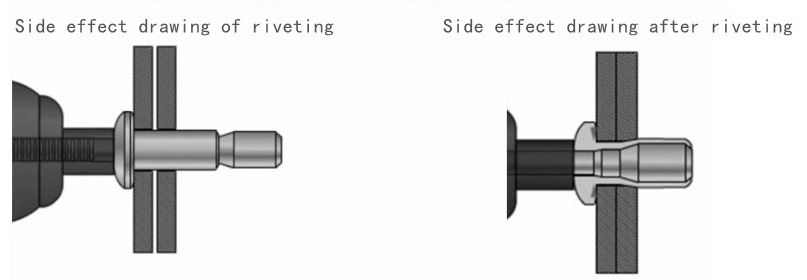

Application of Pop Rivet
Materials we can use on Custom Pop Rivet
Advantages of KENENG Custom Pop Rivet
KENENG’s monthly production capacity exceeds 10 million pieces.
We produce a wide range of products at reasonable prices, and ensure product quality.
Order process of Stamping part: Receive CAD or 3D design → Quotation → Signing Pi → Receive dispose → Make product → Open molding → Trial production → Mass production → Receive Balance → Delivery
