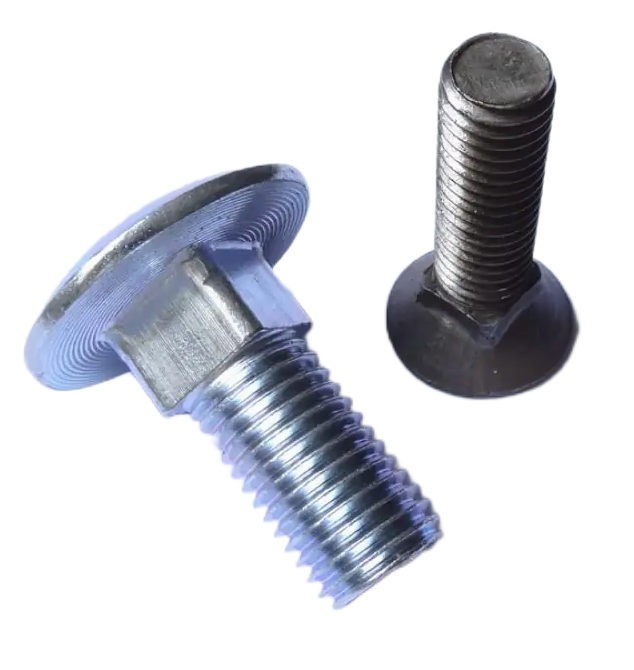

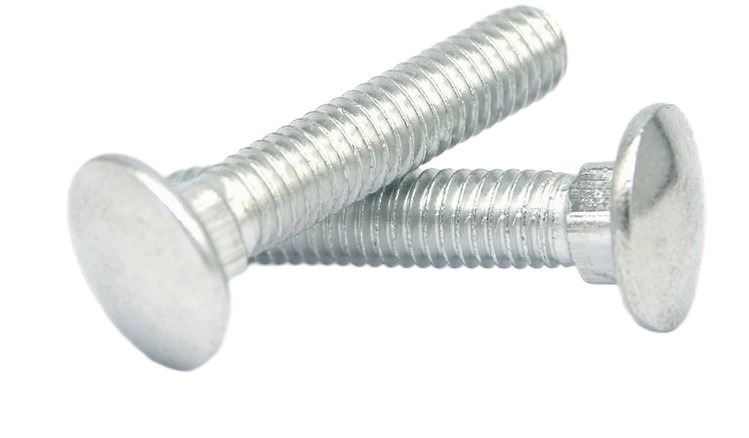

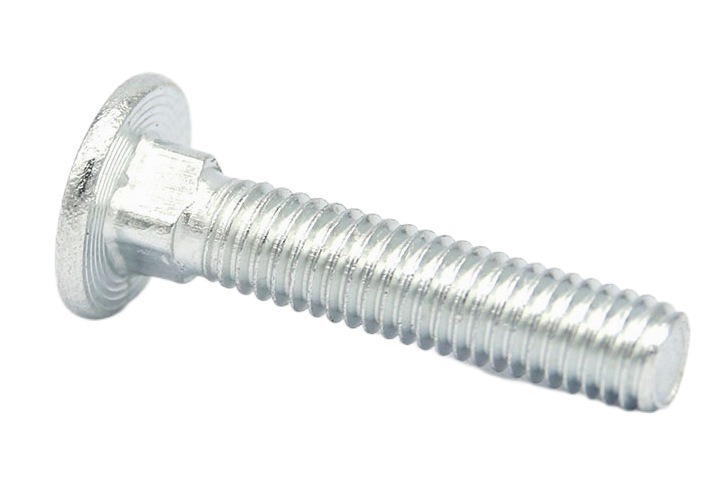

Custom Carriage Bolt
- Size: Diameter 5~20mm, length 15~300mm
- Material: Carbon steel, Stainless steel
- Grade: 4.8, 8.8, 10.9
- Finish: Galvanized
- Standard: DIN603,GB/T14-8,GB/T12-85
- Applications: The carriage bolt is applied in the slot, the square neck is stuck in the slot during the installation process, which can be lifted to prevent the bolt from turning, and the carriage bolt can move parallel in the slot.

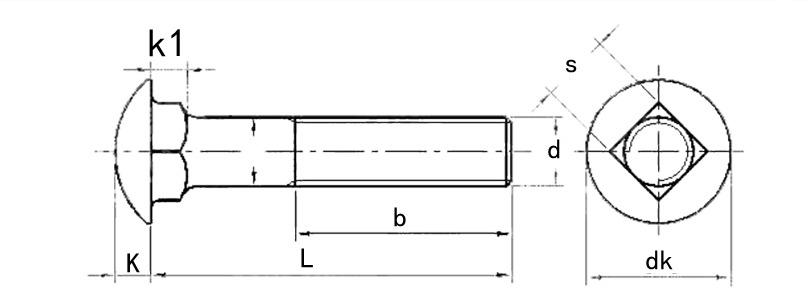

Specifications of Carriage Bolt
| ds | ds | dk | k | k | s | s | ||
| d | P | max | min | max | max | min | max | min |
| M5 | 0.8mm | 5.48mm | 4.52mm | 11.8mm | 3.1mm | 2.5mm | 5.48mm | 4.88mm |
| M6 | 1mm | 6.48mm | 5.52mm | 14.2mm | 3.6mm | 3mm | 6.48mm | 5.88mm |
| M8 | 1.25mm | 8.58mm | 7.42mm | 18mm | 4.8mm | 4mm | 8.58mm | 7.85mm |
| M10 | 1.5mm | 10.58mm | 9.42mm | 22.3mm | 5.8mm | 5mm | 10.58mm | 9.85mm |
| M12 | 1.75mm | 12.7mm | 11.3mm | 26.6mm | 6.8mm | 6mm | 12.7mm | 11.82mm |
| M14 | 2mm | 14.7mm | 13.3mm | 30.5mm | 7.9mm | 7mm | 14.7mm | 13.82mm |
| M16 | 2mm | 16.7mm | 15.3mm | 35mm | 8.9mm | 8mm | 16.7mm | 15.82mm |
| M20 | 2.5mm | 20.84mm | 19.16mm | 43mm | 10.9mm | 10mm | 20.84mm | 19.79mm |
| M24 | 3mm | 24.84mm | 23.16mm | 51mm | 13.1mm | 12mm | 24.84mm | 23.79mm |
Why Select KENENG Custom Carriage Bolt
KENENG’s monthly production capacity exceeds 10 million pieces.
KENENG can produce fasteners including: screws, studs, nuts, flat washers and rivets of various specifications. Various non-standard CNC parts, stamping parts, injection molding parts, nylon screws, nylon nuts, nylon studs, etc.
Ordering process of Lathe parts (non standard parts): Receive CAD or 3D design → Quotation → Signing Pi → Receive deposit → Make sample, approval by customer → Mass production → Receive Balance → Delivery
Packing:
Plastic bag + pallet + carton, or according to customer requirements.
