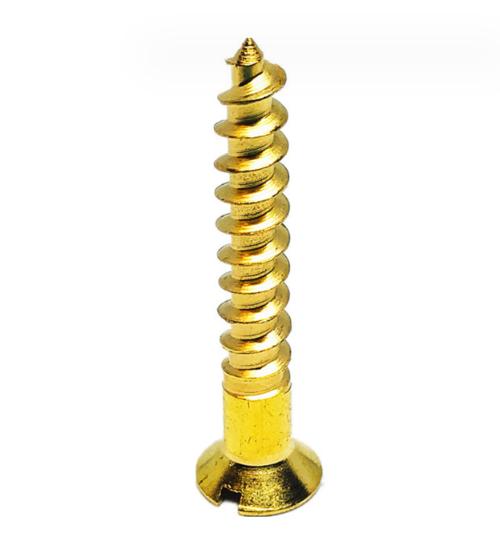

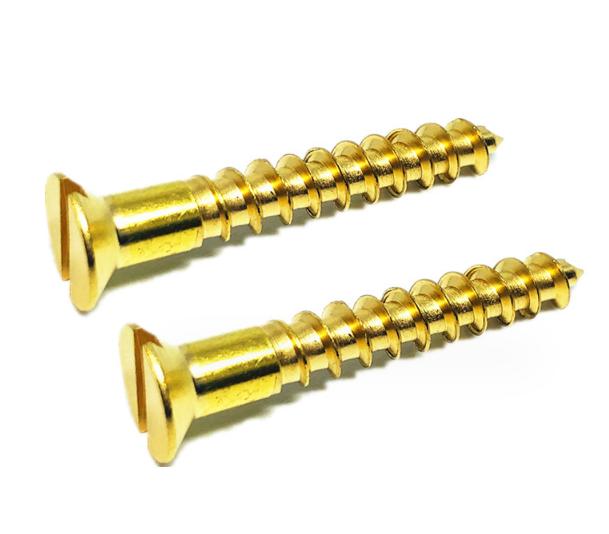

Slotted Countersunk (Flat) Head Wood Screws

  • Size: M1.6~M10
  • Material: Brass
  • Finishing: plain
  • Manufacture processing: Cold heading
  • Application: Widely used for furniture, piano, hinges, flat head decoration, etc.

Are You an OEM Manufacturer?

Yes

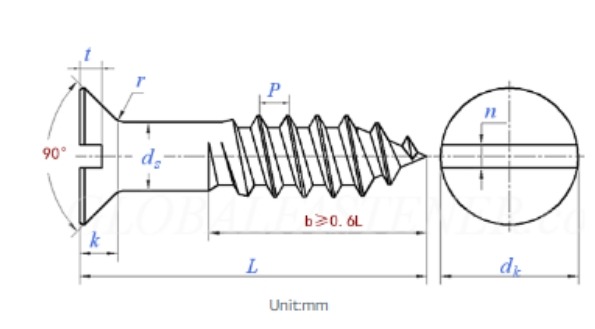

Specifications of Slotted Countersunk (Flat) Head Wood Screws

Specifications of Slotted Countersunk (Flat) Head Wood Screw

Thread Size (1.6) (2) 25 3 3.5 4 4.5 5 (5.5) 6 (7) 8 (10)
P Pitch 0.7 0.9 1.1 1.35 1.6 1.8 2 2.2 2.4 2.6 3.2 3.6 4.5
ds max 1.6 2 2.5 3 3.5 4 4.5 5 5.5 6 7 8 10
min 1.2 1.6 2.1 2.6 3.02 3.52 4.02 4.52 5.02 5.52 6.42 7.42 9.42
dk Nominal Size 3 3.8 4.7 5.6 6.5 7.5 8.3 9.2 10.2 11 12.5 14.5 18
max 3.3 4.18 5.08 5.98 6.95 7.95 8.75 9.65 10.75 11.55 13.05 15.05 18.55
min 2.7 3.45 4.33 5.23 6.05 7.05 7.85 8.75 9.65 10.45 11.95 13.95 17.45
k max 0.96 1.2 1.5 1.65 1.95 2.2 2.35 2.5 2.75 3 3.5 4 5
n Nominal Size 0.4 0.5 0.6 0.8 0.8 1 1 1.2 1.2 1.6 2 2 2.5
max 0.6 0.7 0.8 1 1 1.2 1.2 1.51 1.51 1.91 2.31 2.31 2.81
min 0.45 0.56 0.66 0.86 0.86 1.06 1.06 1.26 1.26 1.66 2.06 2.06 2.56
t max 0.45 0.6 0.7 0.85 1 1.1 1.2 1.3 1.4 1.6 1.9 2.1 2.6
min 0.32 0.4 0.5 0.6 0.7 0.8 0.9 1 1.1 1.2 1.4 1.6 2

Advantages of KENENG Slotted Countersunk (Flat) Head Wood Screws

  1. High-quality material
  2. Complete specifications, a variety of options
  3. No fracture, crack, rust, etc

Materials we can use on Slotted Countersunk (Flat) Head Wood Screws
