Square Weld Nuts

Square Weld Nuts

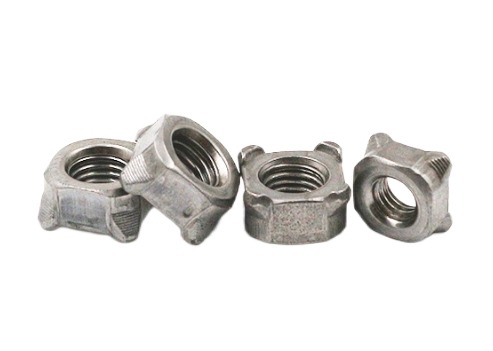

Square Weld Nuts Manufacturer

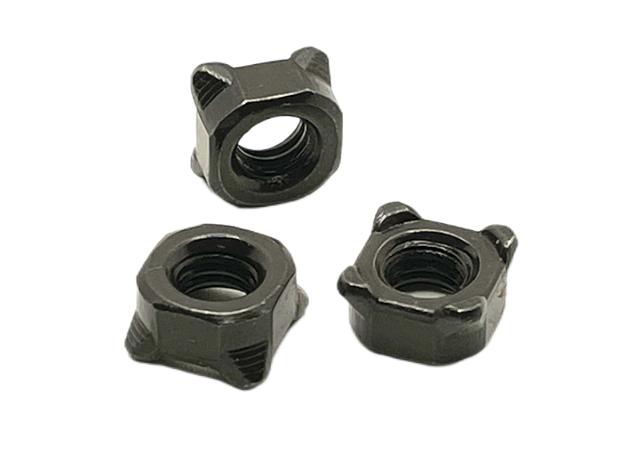

Square Weld Nuts Supplier

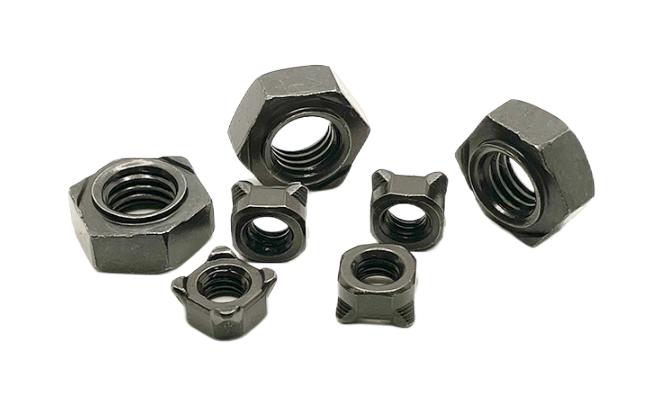

Square Weld Nuts Factory

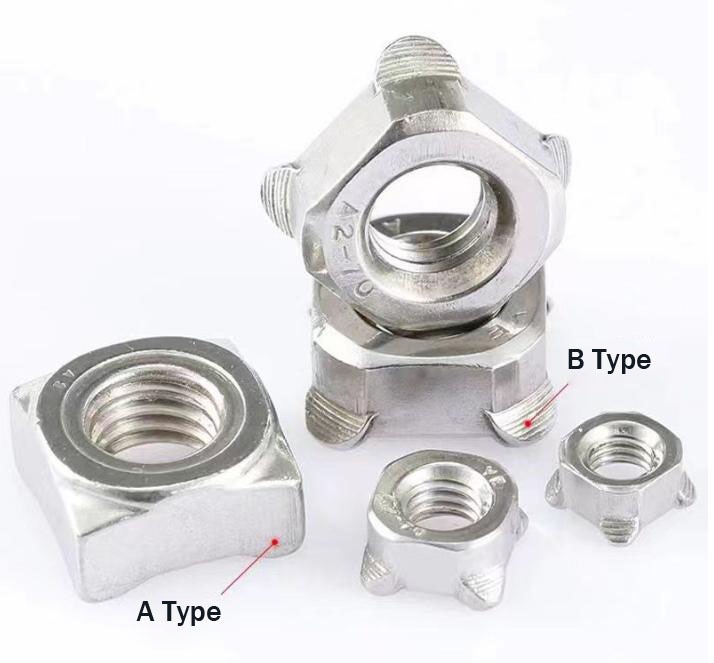

square nuts type
  • Square Weld Nuts
  • Square Weld Nuts Manufacturer
  • Square Weld Nuts Supplier
  • Square Weld Nuts Factory
  • square nuts type
    • Size: M3~M16
    • Material: Carbon steel, Stainless steel
    • Finishing: Natural, black oxide
    • Standard: DIN928
    • Grade: 4, 8, 10

    Are You an OEM Manufacturer?

    Yes

    Specification of Square Weld Nuts

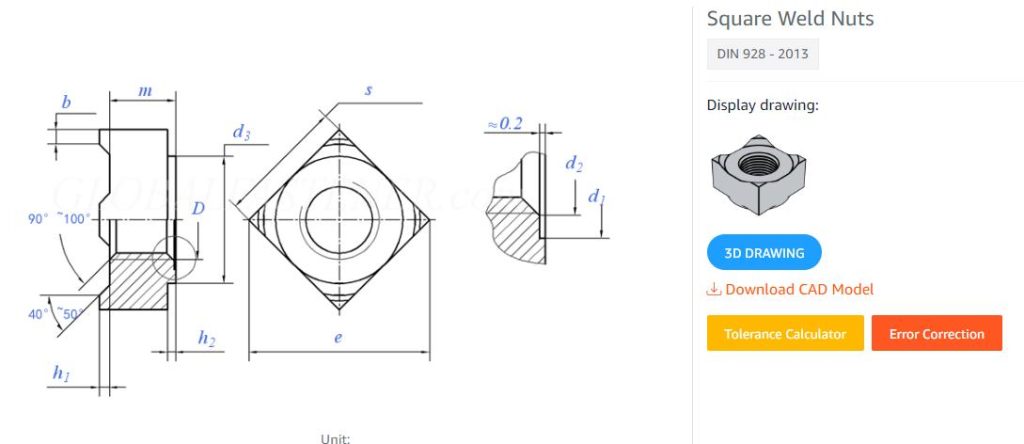

    pecifications of Square Nuts

    DIN928 Standard

     Thread Size
          D     		  M4   M5   M6 M8 M10 7/16
    SW17①     		    7/16
       SW19①     		M12 M14 M16
    P Coarse Thread  0.7   0.8 1 1.25 1.5 / / 1.75 2 2
    Fine Thread-1 / / / 1 1 / / 1.25 1.5 1.5
    Fine Thread -2 / / / / 1.25 20 20 1.5 / /
    b Nominal size 0.8 1.0 1.2 1.5 1.8 1.8 2.0 2.0 2.5 2.5
    max 0.95 1.15 1.35 1.65 2.0 2.0 2.2 2.2 2.7 2.7
    min 0.65 0.85 1.05 1.35 1.6 1.6 1.8 1.8 2.3 2.3
     d1 min=nominal size (H13) 5 6 7.5 10 12.5 12.5 13.5 13.5 16.8 18.8
    max 5.18 6.18 7.72 10.22 12.77 12.77 13.77 13.77 17.07 19.13
    d2 max 4.2 5.25 6.3 8.4 10.5 11.7 11.7 12.6 14.7 16.8
     d3 min 6.4 8.2 9.1 12.8 15.6 15.6 17.4 17.4 20.4 22.4
    e min 9 12 13 18 22 22 25 25 28 32
     h1 Nominal Size 0.6 0.8 0.8 1 1.2 1.2 1.4 1.4 1.4 1.6
    max 0.7 0.9 0.9 1.1 1.3 1.3 1.5 1.5 1.5 1.7
    min 0.5 0.7 0.7 0.9 1.1 1.1 1.3 1.3 1.3 1.5
     h2 min 0.4 0.6 0.7 1.1 1.25 1.25 1.75 1.75 1.75 2
    max 1.3 1.5 1.8 2.0 2.2 2.2 3.0 3.0 3.2 4.0
    m max=nominal size (h13) 3.5 4.2 5 6.5 8 9 9 9.5 11 13
    min 3.2 3.9 4.7 6.14 7.64 8.64 8.64 9.14 10.57 12.57
    s max=nominal size (h13) 7 9 10 14 17 17 19 19 22 24
    min 6.64 8.64 9.64 13.57 16.57 16.57 18.48 18.48 21.48 23.48
     per 1000 units 0.81 1.70 2.40 6.50 11.30 12.5 16.5 16.5 26.7 35.8
    Ensure the load(N) Coarse Thread 6800 11000 15500 28300 44800 / / 65300 89700 123000
    Fine Thread-1 / / / 30200 50200 / / 72100 97500 132000
    Fine Thread -2 / / / / 47800 53600 53600 68200 / /

    Applications of Square Weld Nuts

    Electronic hardware, medical equipment, instrumentation, automobile, aviation and navigation, military manufacturing.

    Advantages of Square Weld Nuts

    1. No burrs on the surface
    2. Smooth chamfer
    3. Thread can pass go and no-go gauges.
    4. Complete specifications, stable quality

    Materials we can use on Square Weld Nuts
