CR1220 Coin Battery Holder

Contact US

For product pricing, customization, or other inquiries:

Product Introduction

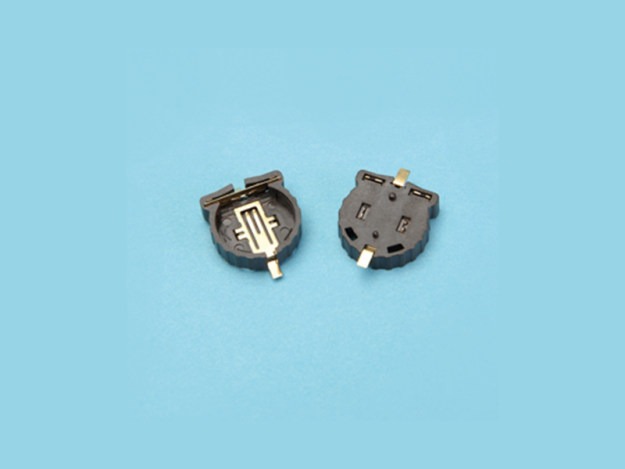

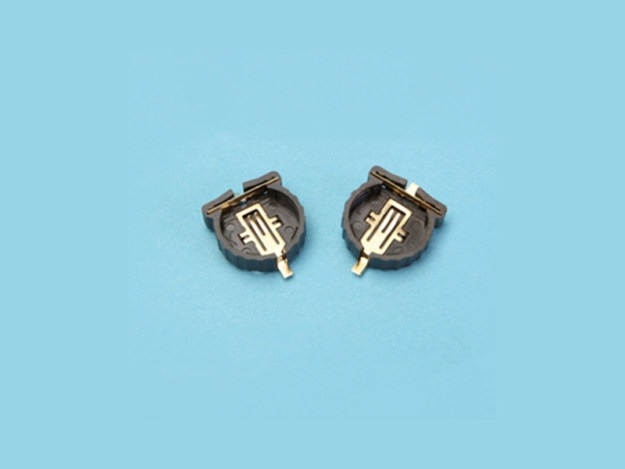

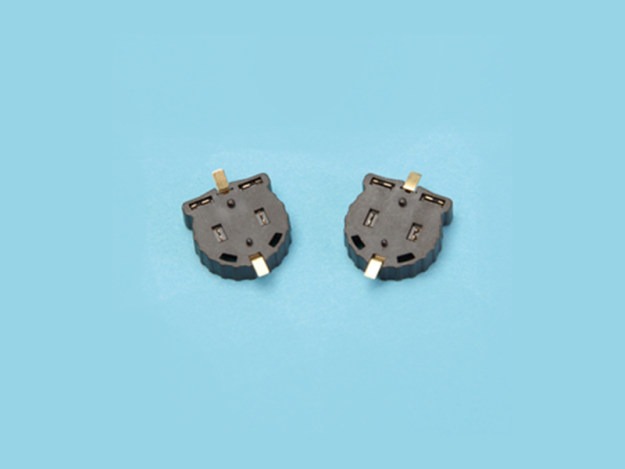

CR1220 Coin Battery Holder , Lithium Coin Cell Battery Holders.

Thru Hole Mount (THM) & Surface Mount (SMT) available for 12X20mm cells.

This holder is manufactured from UL rated 94V-0 materials. Contacts made of high quality phosphor bronze to assure reliable connections and allow contact resistance. Each contact is clearly marked with its polarity to assure proper battery insertion.

Lightweight and rugged, these PCB coin cell holders offer uniquely designed notched battery slot that assures quick and easy insertion and replacement of all major battery manufacturers’ lithium coin cells.

Product Parameter (Specification)

Product nameCR1220 Coin Battery Holder
TypeRound battery holder
Model No.KY-10013-1-1
MaterialPPS + Phosphor Bronze Gold flash, over Nickle plate
Number of cells1 cell
PortShenzhen , Guangzhou

Product Feature And Application

  1. This Coin Battery holderis low profile for high density packaging.
  2. Reliable spring tension contacts assure low contact resistance.
  3. Retains battery securely to withstand shock and vibration.
  4. Rugged construction, light weight.
  5. Compatible with vacuum and mechanical pick & place systems.
  6. Base material UL rated 94V-0. Impervious to most industrial solvents.
  7. Clearly marked polarities to help guard against improper insertion.
CR1220 Coin Battery Holder

Product Details

CR1220 Coin Battery holder detail:

  • Battery Type: Round battery holder
  • Place of Origin: Dongguan, China
  • Color: Black
  • Material:
  • Base: Glass filed PPS UL 94V-0 ;
  • Contacts: 0.2mm thickness Phosphor Bronze Gold flash, over Nickle plate
  • Product name: CR1220 Coin Battery holder
  • Style: Holder(open)
  • Mounting Type: Custom
  • Size: Φ15.1*4.0mm
  • Nominal Voltage: 3.0V

Coin Battery holder Ideally Suited For :

  • Duracell, Eveready, Panasonic, Ray-O-Vac, Sanyo, Varta, Toshiba, Seiko and other major battery manufacturers.
  • Computer memory, power transfer and back-up systems.
  • Video and telecommunications power back-up.
  • Preprogrammed video and electronic games.
  • Microprocessors and Microcomputer memory hold.
  • Notebook and lap top applications.
  • Emergency power systems.
  • Industrial and commercial security and alarm systems.
  • Communications power sources.
  • Miniaturized battery power devices.

Product Qualification

All of our CR1220 Coin Battery holder with ISO9001, ROHS, Dun & Bradstreet certifications.
