CR2032 Battery Cell Holder

The Battery Cell Holder is designed with pin for easy to connect. It is perfect for the devices need a CR2032 external battery.

Contact US

For product pricing, customization, or other inquiries:

Product Introduction

Thru Hole Mount (THM) & Surface Mount (SMT) available for 20X3.2mm cells.

This  Battery Cell Holder is manufactured from PA66 94-V0 materials. Contacts made of high quality brass to assure reliable connections and allow contact resistance. Lightweight and rugged, these coin cell holders offer uniquely designed notched battery slot that assures quick and easy insertion and replacement of all major battery manufacturers’ lithium coin cells.

Product Parameter (Specification)

Product nameCR2032  Battery Cell Holder
TypeCoin cell battery holder
Model No.:KY-10004-1-1
Material:PA66 94-V0, Brass Nickel Plated
Product Size:27.8*22.9*11.6mm
Battery sizeΦ20*3.2mm
Number of cells1 cell
PortShenzhen , Guangzhou

Product Feature And Application

  1. This Battery Cell Holdercan be make to 3.0v battery output

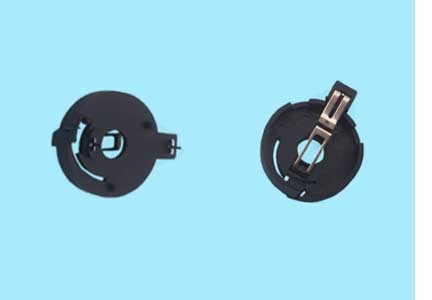

  2. The opposite side is the same as the picture shown.
  3. The perfect external power source for electronic DIY.
  4. Holds 1 × CR2032batteries
  5. Easy install, convenient to use.
  6. High-quality PA66 94-V0material.
  7. The perfect external power source for single-chip microcomputer system, Arduino system, 2WD mobile robot, track-seeking car, RP5 tracked vehicle.

Product Details

CR2032 Battery Cell Holder

Battery Cell Holder detail:

  • Product name: CR2032 Battery Cell Holder
  • Battery Type: Coin cell battery
  • Place of Origin: Dongguan, China
  • Color: Black
  • Material: A66 94-V0, Brass Nickel Plated
  • Size: 27.8*22.9*11.6mm
  • Termination Style: Pin
  • Nominal Voltage: 3.0V

Product Qualification

All of our Battery Cell Holder with ISO9001, ROHS, Dun & Bradstreet certifications.
