Battery Holder CR2032

The Battery Holder CR2032 is designed with pin for easy to connect. It is perfect for the devices need a CR2032 external battery.

Contact US

For product pricing, customization, or other inquiries:

Product Introduction

Thru Hole Mount (THM) & Surface Mount (SMT) available for 20X3.2mm cells.

This Battery Holder CR2032 is manufactured from NYLON 66 +GF materials. Contacts made of high quality Phosphor bronze to assure reliable connections and allow contact resistance. Lightweight and rugged, these coin cell holders offer uniquely designed notched battery slot that assures quick and easy insertion and replacement of all major battery manufacturers’ lithium coin cells.

Product Parameter (Specification)

Product nameBattery Holder CR2032
TypeCoin cell battery holder
Model No.KY-10006-1-2
MaterialNYLON 66+ Phosphor bronze Nickel Plated
Product Size20.1*22.6*6.7mm
Battery sizeΦ20*3.2mm
Number of cells1 cell
PortShenzhen , Guangzhou

Product Feature And Application

  1. This Battery Holder CR2032can be make to 3.0v battery output

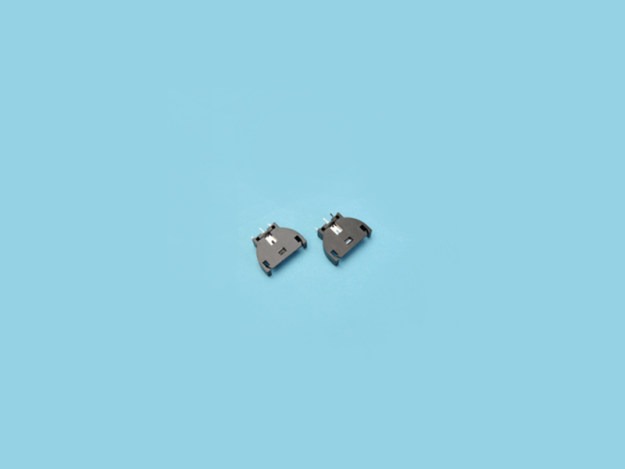

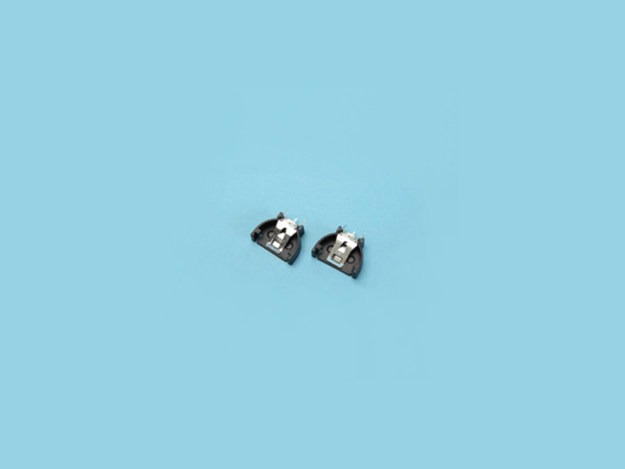

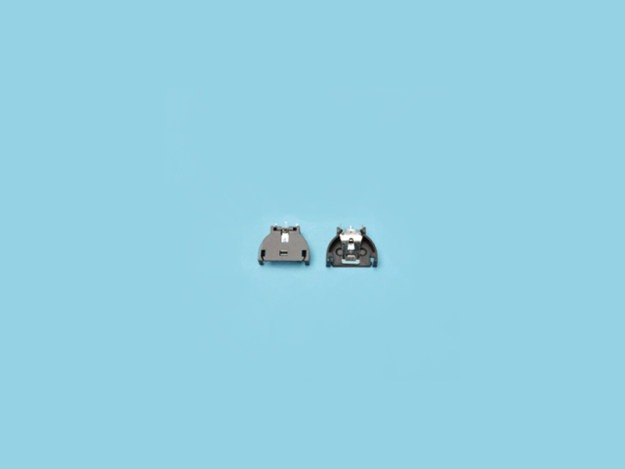

  2. The opposite side is the same as the picture shown.
  3. The perfect external power source for electronic DIY.
  4. Holds 1 × CR2032batteries
  5. Easy install, convenient to use.
  6. High-quality Nylon 66 material.
  7. The perfect external power source for single-chip microcomputer system, Arduino system, 2WD mobile robot, track-seeking car, RP5 tracked vehicle.

Product Details

Battery Holder CR2032 detail:

Product name: Battery Holder CR2032

Battery Type: Coin cell battery

Place of Origin: Dongguan, China

Color: Black

Material: NYLON 66+ Phosphor bronze Nickel Plated

Size: 20.1*22.6*6.7mm

Termination Style: Pin

Nominal Voltage: 3.0V

Product Qualification

All of our CR2032 Battery Holder CR2032 with ISO9001, ROHS, Dun & Bradstreet certifications.
