CR2032 Coin cell holder

The Coin cell holder is designed with pin for easy to connect. It is perfect for the devices need a CR2032 external battery.

Contact US

For product pricing, customization, or other inquiries:

Product Introduction

Thru Hole Mount (THM) & Surface Mount (SMT) available for 20X3.2mm cells.

This Coin cell holder is manufactured from PBT materials. Contacts made of high quality brass to assure reliable connections and allow contact resistance. Each contact is clearly marked with its polarity to assure proper battery insertion.

Lightweight and rugged, these coin cell holders offer uniquely designed notched battery slot that assures quick and easy insertion and replacement of all major battery manufacturers’ lithium coin cells.

Product Parameter (Specification)

Product nameCR2032 Coin cell holder
TypeCoin cell battery holder
Model No.:KY-10001-1-1
Material:PBT + Brass Tin Plated
Product Size:24.5*22.2*10.9mm
Battery sizeΦ20*3.2mm
Number of cells1 cell
PortShenzhen , Guangzhou

Product Feature And Application

  1. This Coin cell holdercan be make to 3.0v battery output
  2. The opposite side is the same as the picture shown.
  3. The perfect external power source for electronic DIY.
  4. Holds 1 × CR2032batteries
  5. Easy install, convenient to use.
  6. High-quality PBT material.
  7. The perfect external power source for single-chip microcomputer system, Arduino system, 2WD mobile robot, track-seeking car, RP5 tracked vehicle.

Product Details

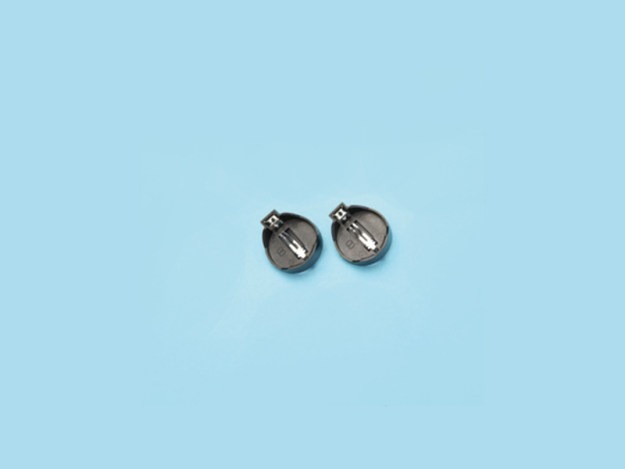

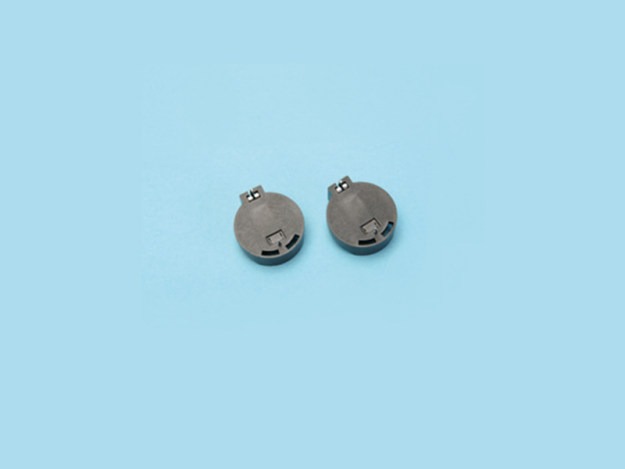

CR2032 Coin cell holder

Coin cell holder detail:

  • Product name: Coin cell holder
  • Battery Type: Coin cell battery
  • Place of Origin: Dongguan, China
  • Color: Black
  • Material: PBT + Brass Tin Plated
  • Style: Holder(open)
  • Size: 24.5*22.2*10.9mm
  • Termination Style: Pin
  • Nominal Voltage: 3.0V
  • Operate temperature: -55°C-105°C

Product Qualification

All of our Coin cell holder with ISO9001, ROHS, Dun & Bradstreet certifications.
