CR2032 speciality battery holder

The CR2032 speciality battery holder is designed with pin for easy to connect. It is perfect for the devices need a CR2032 external battery.

Contact US

For product pricing, customization, or other inquiries:

Product Introduction

Thru Hole Mount (THM) & Surface Mount (SMT) available for 20X3.2mm cells.

This CR2032 speciality battery holder is manufactured from ABS materials. Contacts made of high quality brass to assure reliable connections and allow contact resistance. Lightweight and rugged, these coin cell holders offer uniquely designed notched battery slot that assures quick and easy insertion and replacement of all major battery manufacturers’ lithium coin cells.

Product Parameter (Specification)

Product nameCR2032 speciality battery holder
TypeCoin cell battery holder
Model No.:KY-10005-1-1
Material:ABS+ Brass Tin Plated
Product Size:21.3*23.0*6.3mm
Battery sizeΦ20*3.2mm
Number of cells1 cell
PortShenzhen , Guangzhou

Product Feature And Application

  1. This CR2032speciality battery holdercan be make to 3.0v battery output
  2. The opposite side is the same as the picture shown.
  3. The perfect external power source for electronic DIY.
  4. Holds 1 × CR2032batteries
  5. Easy install, convenient to use.
  6. High-quality ABS material.
  7. The perfect external power source for single-chip microcomputer system, Arduino system, 2WD mobile robot, track-seeking car, RP5 tracked vehicle.

Product Details

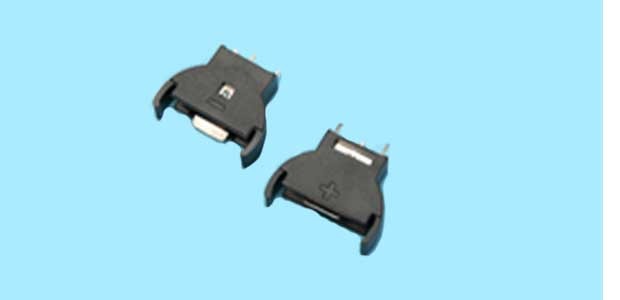

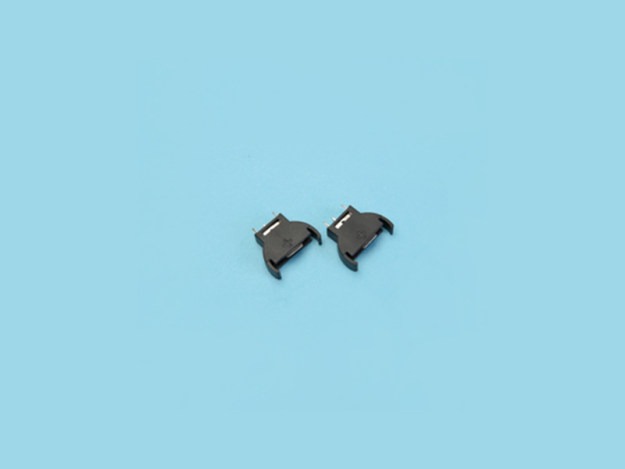

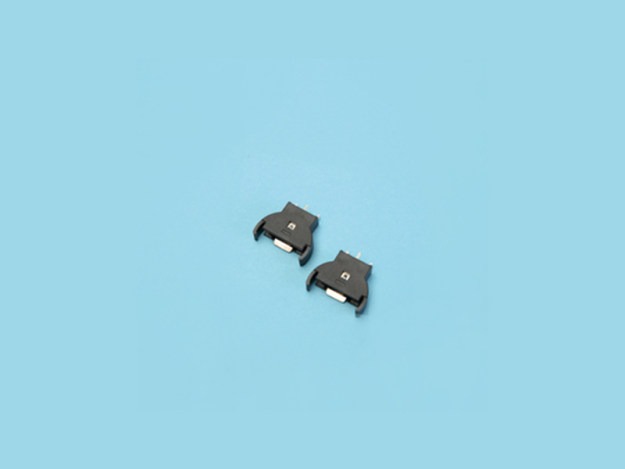

CR2032 speciality battery holder

CR2032 speciality battery holder detail:

  • Product name: CR2032 speciality battery holder
  • Battery Type: Coin cell battery
  • Place of Origin: Dongguan, China
  • Color: Black
  • Material: ABS+ Brass Tin Plated
  • Size: 21.3*23.0*6.3mm
  • Termination Style: Pin
  • Nominal Voltage: 3.0V

Product Qualification

All of our Speciality battery holder with ISO9001, ROHS, Dun & Bradstreet certifications.
