Product Introduction

CR1658 cell battery holder , Lithium Coin Cell Battery Holders.

Thru Hole Mount (THM) & Surface Mount (SMT) available for 16X58mm button cell.

This holder is manufactured from UL rated 94V-0 materials. Contacts made of high quality spring stainless steel to assure reliable connections and allow contact resistance. Each contact is clearly marked with its polarity to assure proper battery insertion.

Lightweight and rugged, these PCB coin cell holders offer uniquely designed notched battery slot that assures quick and easy insertion and replacement of all major battery manufacturers’ lithium coin cells.

Product Parameter (Specification)

Product nameCR1658 cell battery holder
TypeRound battery holder
Model No.:KY-10030-1-1
Material:Kopa+ Spring stainless steel 302 Gold flash plated
Size:29.39*12.07mm
Rating3.0V
ColorGrey
Number of cells1 cell
PortShenzhen , Guangzhou
MOQ1000pcs

Product Feature And Application

  1. This CR1658 cell battery holderis low profile for high density packaging.
  2. Reliable spring tension contacts assure low contact resistance.
  3. Retains battery securely to withstand shock and vibration.
  4. Rugged construction, light weight.
  5. Compatible with vacuum and mechanical pick & place systems.
  6. Base material UL rated 94V-0 Impervious to most industrial solvents.
  7. Clearly marked polarities to help guard against improper insertion.

Product Details

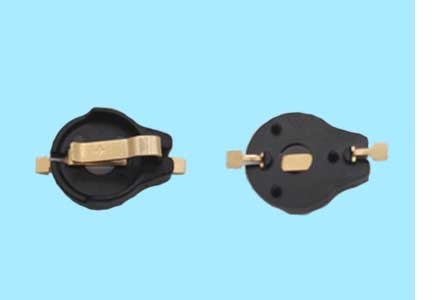

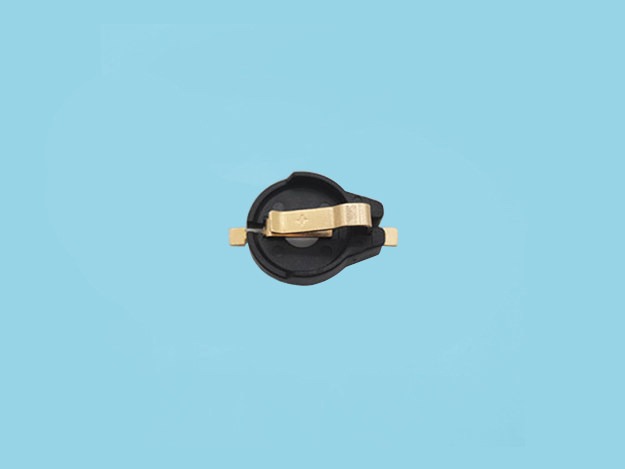

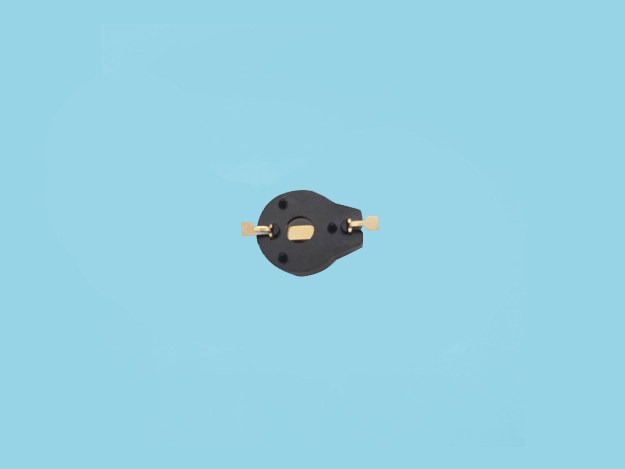

CR1658 cell battery holder

CR1658 cell battery holder detail:

  • Battery Type: Round battery holder
  • Place of Origin: Dongguan, China
  • Color: Grey
  • Material:
  • Base: Kopa 66.30% Glass filled , Grey ;
  • Contacts: 302 temper stainless steel Gold flash plated .
  • Product name: CR1658 cell battery holder
  • Style: Holder(open)
  • Mounting Type: Custom
  • Size: 29.39*12.07mm
  • Nominal Voltage: 3.0V

CR1658 cell battery holder Ideally Suited For :

  • Duracell, Eveready, Panasonic, Ray-O-Vac, Sanyo, Varta, Toshiba, Seiko and other major battery manufacturers.
  • Computer memory, power transfer and back-up systems.
  • Video and telecommunications power back-up.
  • Preprogrammed video and electronic games.
  • Microprocessors and Microcomputer memory hold.
  • Notebook and lap top applications.
  • Emergency power systems.
  • Industrial and commercial security and alarm systems.
  • Communications power sources.
  • Miniaturized battery power devices.

Product Qualification

All of our CR1658 cell battery holder with ISO9001, ROHS, Dun & Bradstreet certifications.
