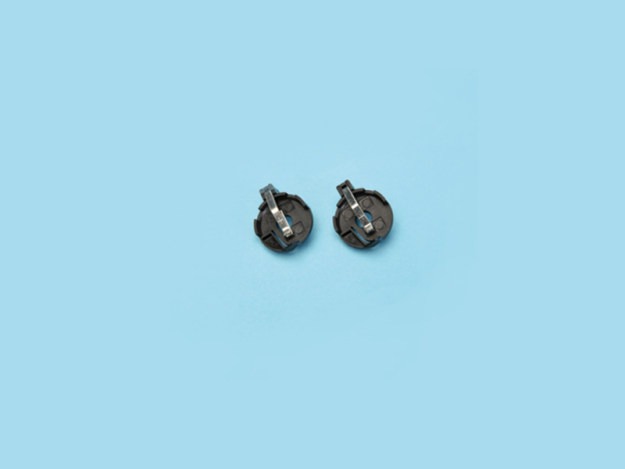

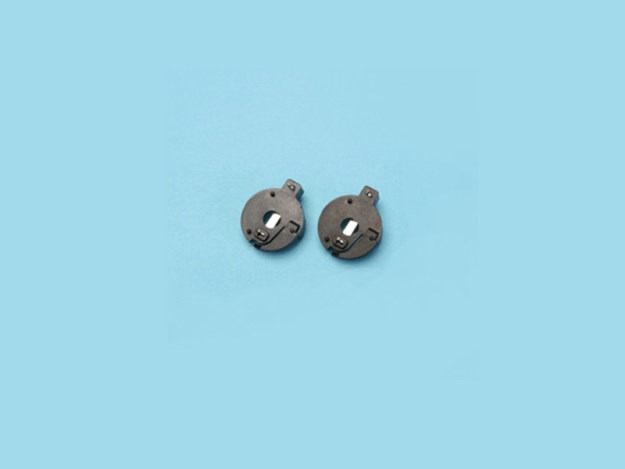

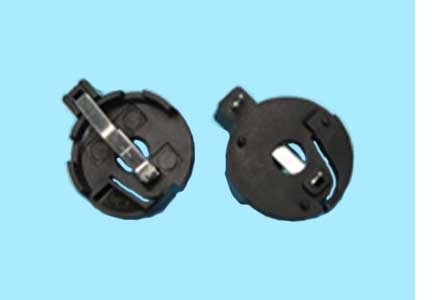

CR2032 Button Cell Battery Sockets Holder
Product Introduction
Thru Hole Mount (THM) & Surface Mount (SMT) available for 20X3.2mm cells.
This Button Cell Battery Sockets Holder is manufactured from PA66 V0 materials. Contacts made of high quality brass to assure reliable connections and allow contact resistance. Lightweight and rugged, these coin cell holders offer uniquely designed notched battery slot that assures quick and easy insertion and replacement of all major battery manufacturers’ lithium coin cells.
Product Parameter (Specification)
| Product name | CR2032 Button Cell Battery Sockets Holder |
| Type | Coin cell battery holder |
| Model No.: | KY-10002-1-1 |
| Material: | PA66 V0+GF, Brass Tin Plated |
| Product Size: | 27.5*23.2*11.6mm |
| Battery size | Φ20*3.2mm |
| Rating | 3.0V |
| Color | Black |
| Number of cells | 1 cell |
| Port | Shenzhen , Guangzhou |
| MOQ | 2000pcs |
Product Feature And Application
- This Button Cell Battery Sockets Holdercan be make to 3.0v battery output
- The opposite side is the same as the picture shown.
- The perfect external power source for electronic DIY.
- Holds 1 × CR2032batteries
- Easy install, convenient to use.
- High-quality PBT material.
- The perfect external power source for single-chip microcomputer system, Arduino system, 2WD mobile robot, track-seeking car, RP5 tracked vehicle.
Product Details
Button Cell Battery Sockets Holder detail:
- Product name: CR2032 Button Cell Battery Sockets Holder
- Battery Type: Coin cell battery
- Place of Origin: Dongguan, China
- Color: Black
- Material: PA66 V0+GF, Brass Tin Plated
- Size: 27.5*23.2*11.6mm
- Termination Style: Pin
- Nominal Voltage: 3.0V
- Operate temperature: -55°C-105°C
Product Qualification
All of our Button Cell Battery Sockets Holder with ISO9001, ROHS, Dun & Bradstreet certifications.
