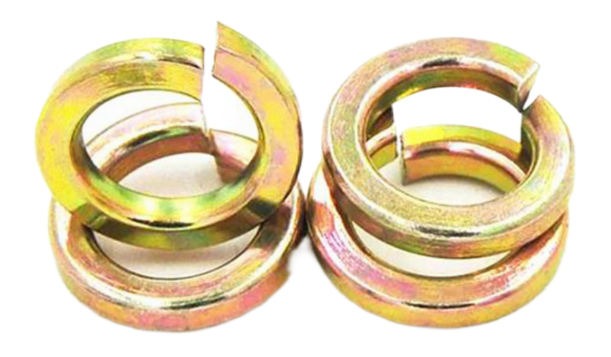

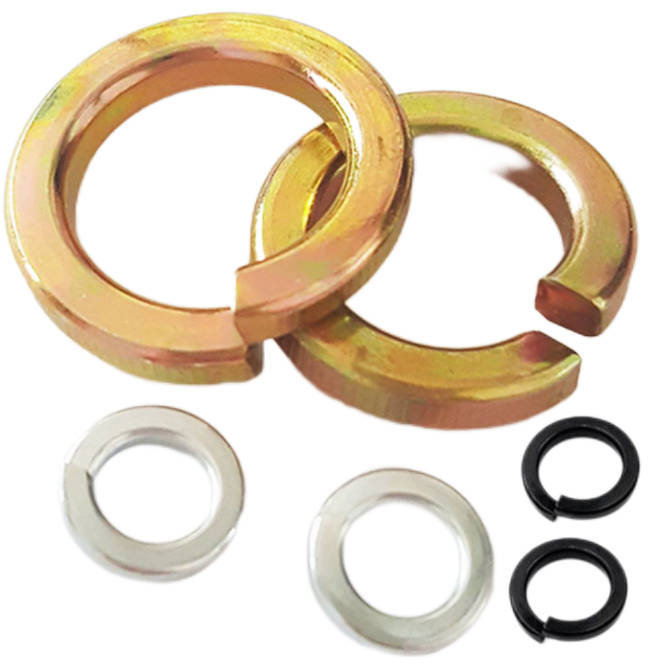

Custom Spring Washer

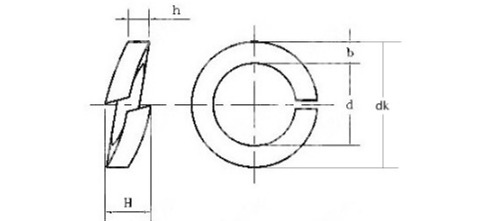

Specifications of Spring Washer
| Unit: mm | ||||||||||||
| Specification | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | MB | M10 | M12 | M14 | M16 |
| d | 1.66 | 2.22 | 2.72 | 3.3 | 4.2 | 5.3 | 6.53 | 8.35 | 10.6 | 12.5 | 14.5 | 16.5 |
| h | 0.55 | 0.49 | 0.64 | 0.8 | 1.1 | 1.3 | 1.6 | 2.1 | 2.56 | 3.1 | 3.62 | 4.12 |
| H | 0.88 | 1.1 | 1.52 | 1.92 | 2.52 | 2.83 | 3.81 | 4.63 | 5.82 | 6.92 | 6.72 | 9.21 |
| dk | 2.9 | 3.3 | 4.3 | 5.1 | 6.4 | 8 | 9.8 | 13 | 15 | 18 | 22 | 25 |
| Specification | M18 | M20 | M22 | M24 | M27 | M30 | M33 | M36 | M39 | M42 | Md5 | M48 |
| d | 18.63 | 20.83 | 22.84 | 24.73 | 27.93 | 30.83 | 33.96 | 36.84 | 39.84 | 42.83 | 45.83 | 48.9 |
| h | 4.52 | 4.93 | 5.61 | 5.93 | 6.83 | 7.5 | 8.5 | 8.96 | 10.1 | 10.5 | 10.95 | 12 |
| H | 10.12 | 11.3 | 12.52 | 13.5 | 15.21 | 16.73 | 19.52 | 20.3 | 23.1 | 24.32 | 25.3 | 26 |
| dk | 27.5 | 30.9 | 34 | 36.8 | 41.3 | 46 | 51 |
Advantages of KENENG Custom Spring Washer
KENENG’s monthly production capacity exceeds 10 million pieces.
We produce a wide range of products at reasonable prices, and ensure product quality.
Order process of Stamping part: Receive CAD or 3D design → Quotation → Signing Pi → Receive dispose → Make product → Open molding → Trial production → Mass production → Receive Balance → Delivery
