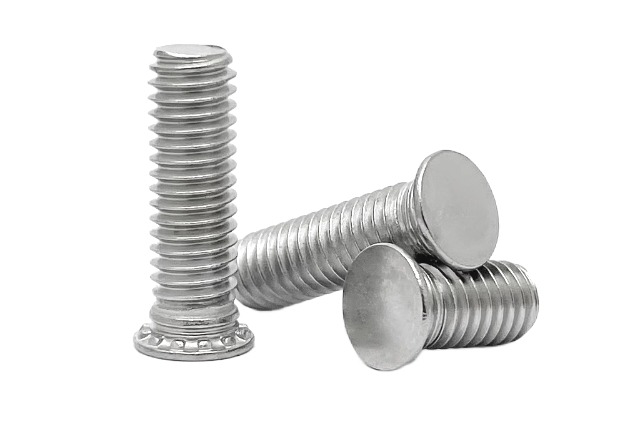

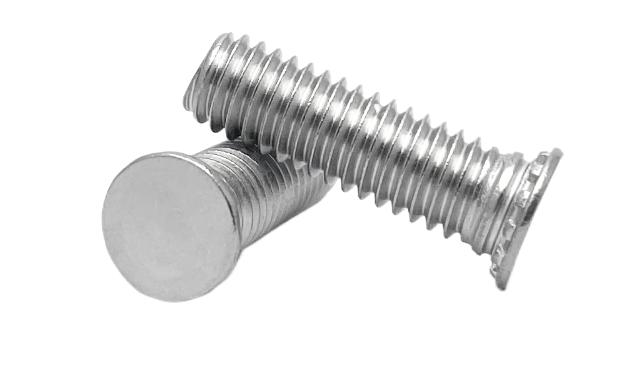

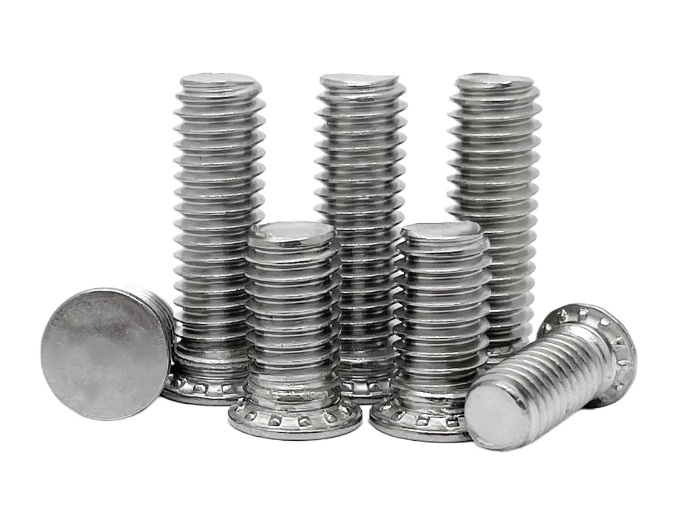

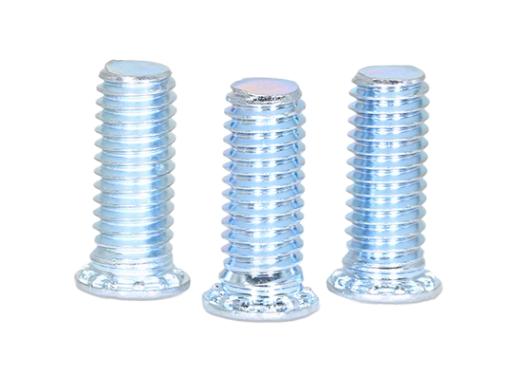

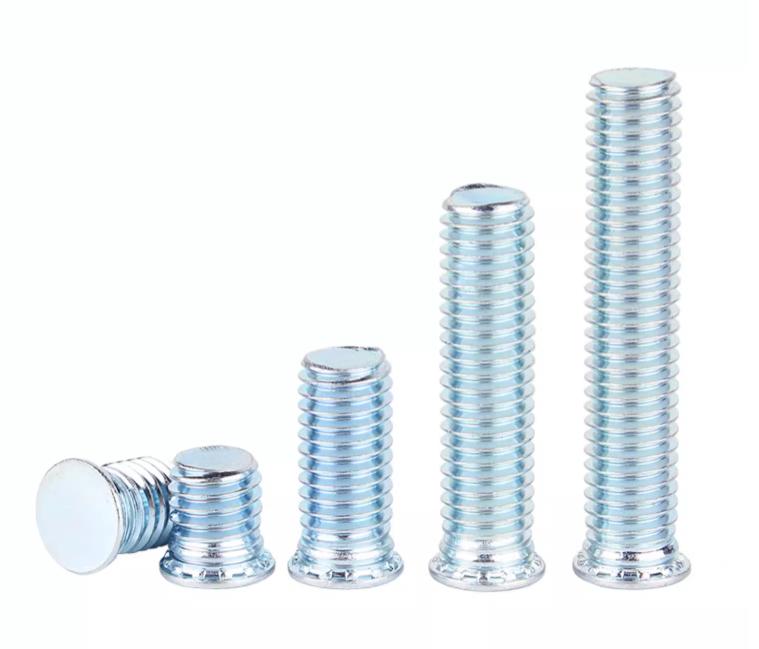

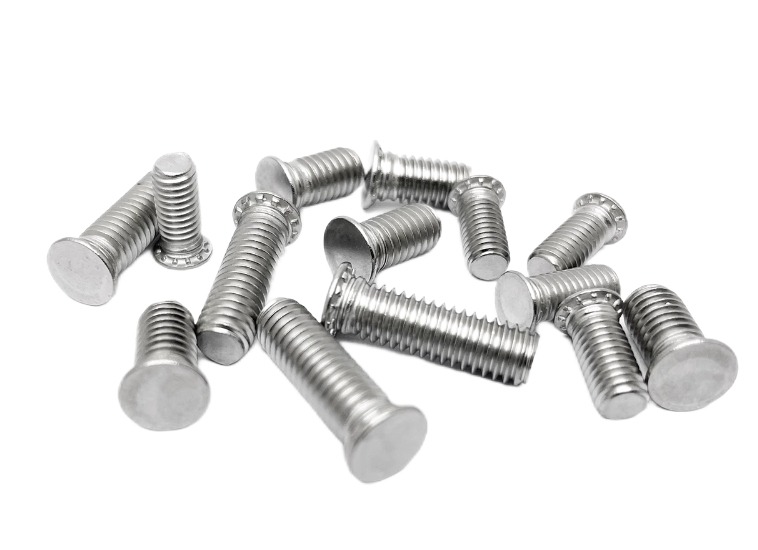

Flush Head Self-Clinching Studs

Flush Head Self-Clinching Studs
Flush Head Self-Clinching Studs Supplier
Flush Head Self-Clinching Studs Factory
Flush Head Self-Clinching Stud Manufacturer
Flush Head Self-Clinching Studs Suppliers
Flush Head Self-Clinching Studs Manufacturer
  • Flush Head Self-Clinching Studs
  • Flush Head Self-Clinching Studs Supplier
  • Flush Head Self-Clinching Studs Factory
  • Flush Head Self-Clinching Stud Manufacturer
  • Flush Head Self-Clinching Studs Suppliers
  • Flush Head Self-Clinching Studs Manufacturer
    • Material： Carbon steel, Stainless steel, Aluminum
    • Finishing: Galvanized, plain
    • Application: Press the riveting operation with the punch, and press the riveting machine to use, can not be knocked.
    • Size: M2.5~M8, #2~5/16”

    Are You an OEM Manufacturer?

    Yes

    Specifications Of Flush Head Self-Clinching Studs

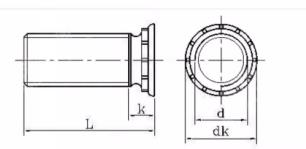

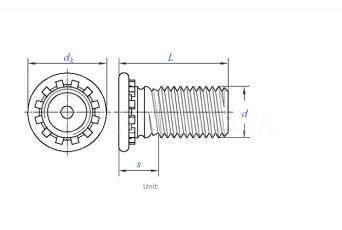

    Specifications of Flush Head Self-Clinching Studs
    Screw Thread
    d     		2# 4# 6# 8# 10# 10# 1/4 5/16 M2.5 M3 M3.5 M4 M5 M6 M8
    P / / / / / / / / 0.45 0.5 0.6 0.7 0.8 1 1.25
    PP 56 40 32 32 24 32 20 18 / / / / / / /
    dk Nominal Size 0.144 0.176 0.206 0.237 0.256 0.256 0.337 0.376 4.1 4.6 5.3 5.9 6.5 8.2 9.6
    max 0.159 0.191 0.221 0.252 0.271 0.271 0.352 0.391 4.5 5 5.7 6.3 6.9 8.6 10
    min 0.129 0.161 0.191 0.222 0.241 0.241 0.322 0.361 3.7 4.2 4.9 5.5 6.1 7.8 9.2
    S max 0.075 0.085 0.090 0.090 0.100 0.100 0.135 0.160 1.95 2.1 2.25 2.4 2.7 3 3.7
    Sheet Thickness min 0.040 0.040 0.040 0.040 0.040 0.040 0.062 0.093 1 1 1 1 1 1.6 2.4
    Recommend Hole Size min=nominal size 0.085 0.111 0.137 0.163 0.189 0.189 0.249 0.311 2.5 3 3.5 4 5 6 8
    max 0.088 0.114 0.140 0.166 0.192 0.192 0.252 0.314 2.58 3.08 3.58 4.08 5.08 6.08 8.08
    Code steel FH FH FH FH FH FH FH FH FH FH FH FH FH FH FH
    stainless steel FHS FHS FHS FHS FHS FHS FHS FHS FHS FHS FHS FHS FHS FHS FHS
    aluminum / FHA FHA FHA FHA FHA FHA / FHA FHA FHA FHA FHA FHA /
    Thread Diameter Pitch Carbon Steel Stainless Steel Aluminium dk±0.4 K
    M2.5


    		 0.45 FH FHS FHA 4.1 1.95
    M3 0.5 FH FHS FHA 4.6 2.1
    M4 0.7 FH FHS FHA 5.9 2.4
    M5 0.8 FH FHS FHA 6.5 2.7
    M6 1 FH FHS FHA 8.2 3.0
    M8 1.25 FH FHS FHA 9.6 3.7

    Why Choose KENENG As Your Flush Head Self-Clinching Studs Manufacturer

    1. KENENG has complete lathes, punches and thread rolling machines. Production and testing of parts can be carried out. We have excellent quality inspection capability: we can provide salt spray, film thickness and various inspection reports.

    2. We have specialized designers and production personnel and complete production lines.

    3. We produce a wide range of products at reasonable prices and ensure product quality.
