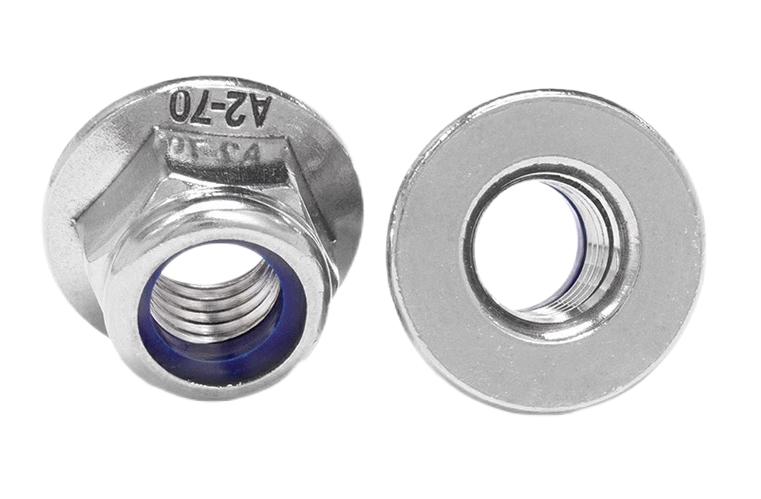

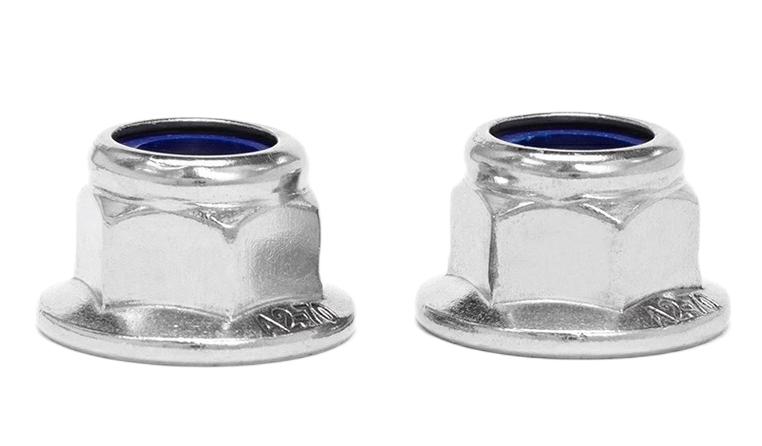

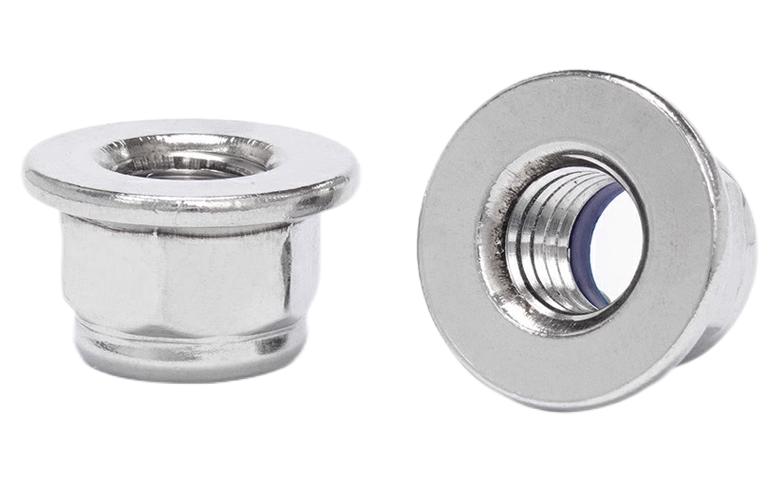

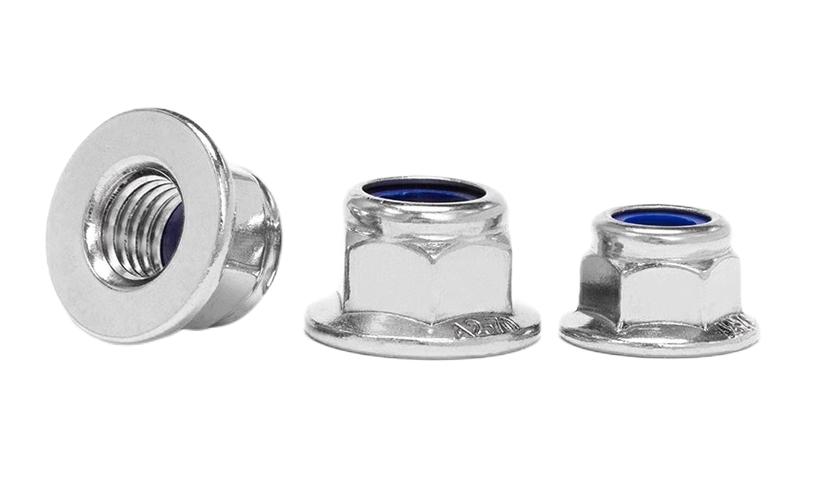

Hex Flange Nylon Nuts

  • Size: M3~M20
  • Material: stainless steel 304, nylon insert
  • Application: Widely used in automotive industry, machinery manufacturing, pneumatic tools, medical equipment, furniture hardware and other fields.

Are You an OEM Manufacturer?

Yes

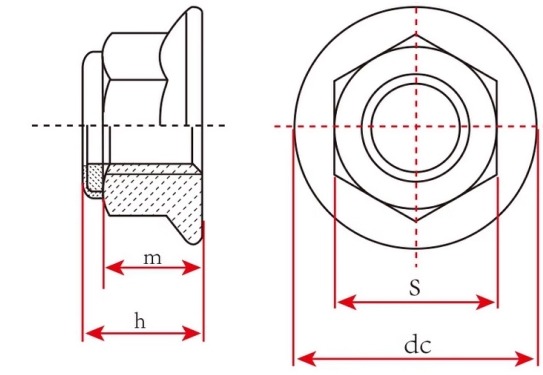

Specifications of Hex Flange Nylon Nuts

Specifications of Hex Flange Nylon Nut

units:mm
Nominal diameter
D 		Pitch
P 		dc
max 		h S Weight for every 1000 pieces of steel products
≈kg
max min max min
M5 0.8 11.8 7.1 6.52 8 7.78 1.66
M6 1 14.2 9.1 8.52 10 9.78 3.36
M8 1.25 17.9 11.1 10.4 13 12.73 7
M10 1.5 21.8 13.5 12.8 15 14.73 11.15
M12 1.75 26 16.1 15.4 18 17.73 19.33
M14 2 29.9 18.2 16.9 21 20.67 29.21
M16 2 34.5 20.3 19 24 23.67 43.2
M20 2.5 42.8 24.8 22.7 30 29.16 78.4

Advantages of Hex Flange Nylon Nuts

  1. High quality material
  2. Complete specifications, a variety of options
  3. Standard hexagonal, smooth surface
  4. Good corrosion resistance, heat resistance, rust resistance and other mechanical properties

Materials we can use on Hex Flange Nylon Nuts

Application industries of Hex Flange Nylon Nuts
