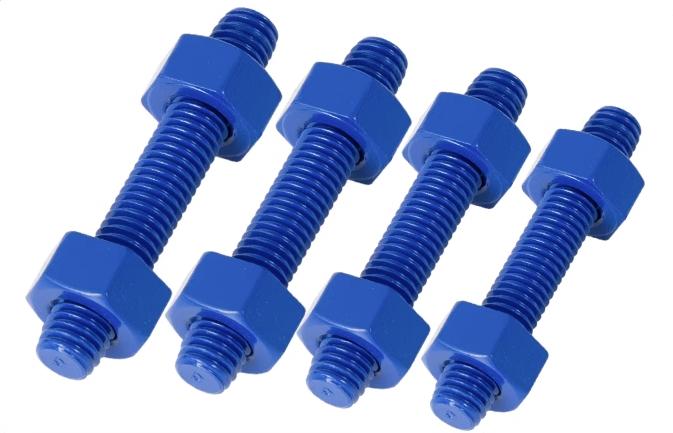

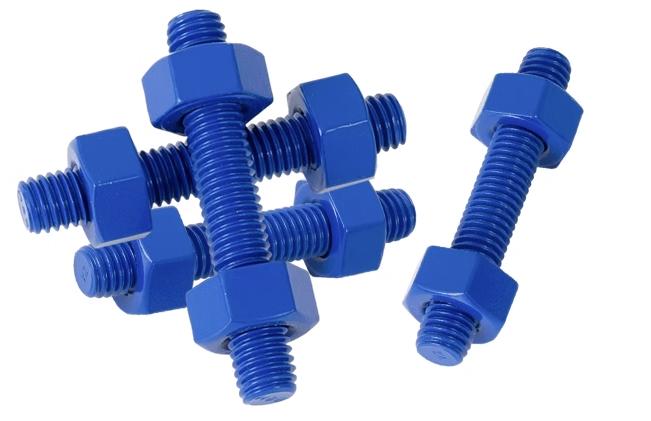

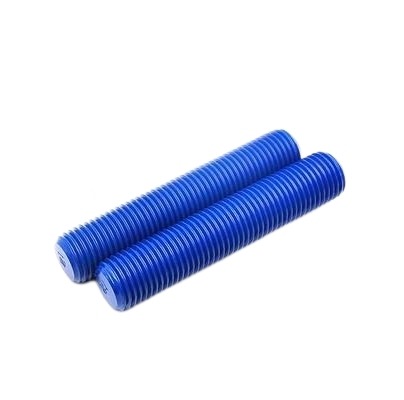

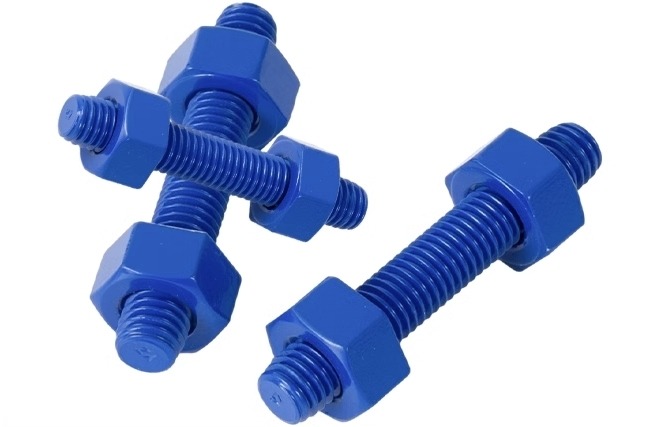

High Tensile PTFE/Xylan/Teflon Coated Stud Bolts
- Material: Carbon steel, alloy steel(ASTM A193 B7, A194 2H, 35CrMoA)

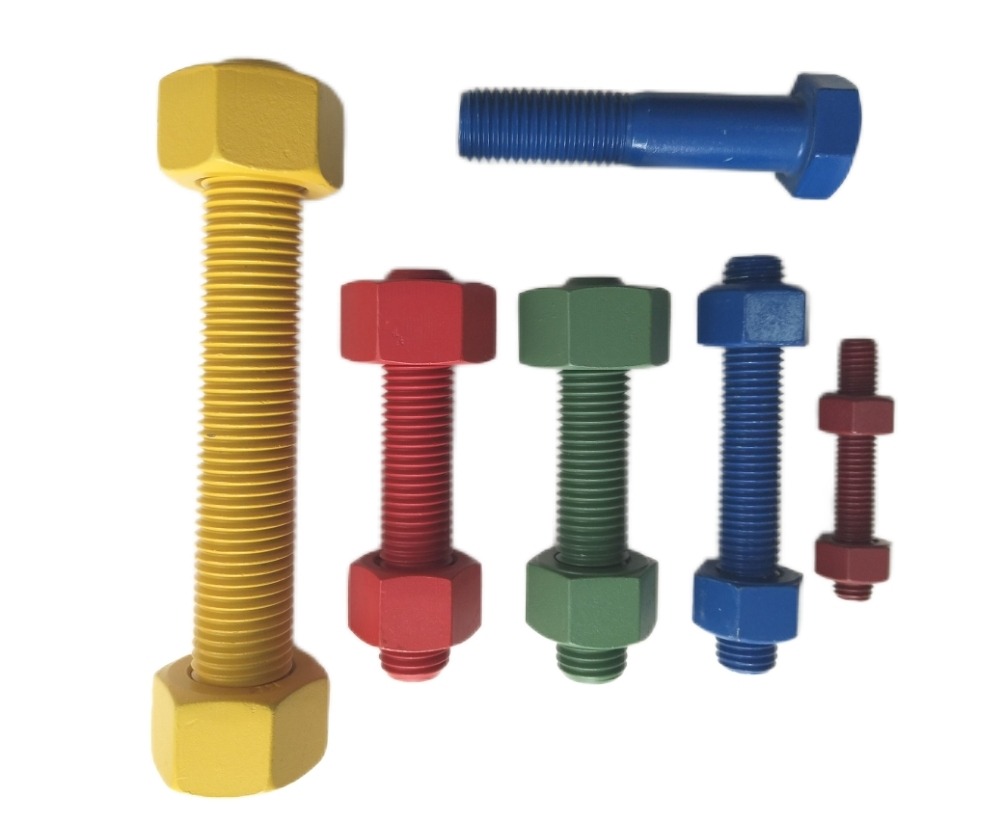

- Finishing: PTFE (color: blue, yellow, red, green, grey, black)
- Application: Petrochemicals, pressure vessels, corrosion protection equipment, Marine vessels
- Size: M10~M42
- Standard: ASME B18.31.2, SH3404, HG20634
- Grade: 8.8, 10.9, 12.9
- Manufacture process: Cole forge, PTFE/Xylan/Teflon coated

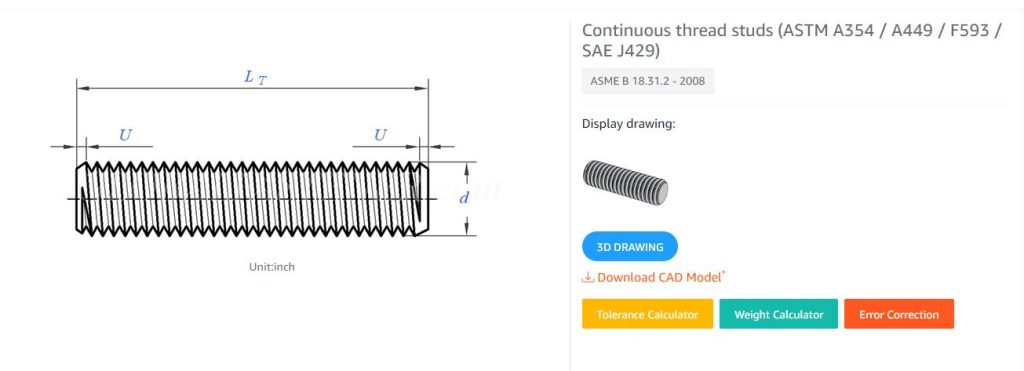

Specifications Of High Tensile PTFE/Xylan/Teflon Coated Stud Bolts
|
Screw Thread d |
1/4 | 5/16 | 3/8 | 7/16 | 1/2 | 9/16 | 5/8 | 3/4 | 7/8 | 1 | 1-1/8 | 1-1/4 | 1-3/8 | ||
| d | 0.2500 | 0.3125 | 0.3750 | 0.4375 | 0.5000 | 0.5625 | 0.6250 | 0.7500 | 0.8750 | 1.0000 | 1.1250 | 1.2500 | 1.3750 | ||
| PP | UNC | 20 | 18 | 16 | 14 | 13 | 12 | 11 | 10 | 9 | 8 | 7 | 7 | 6 | |
| UNF | 28 | 24 | 24 | 20 | 20 | 18 | 18 | 16 | 14 | 12 | 12 | 12 | 12 | ||
| 8UN | – | – | – | – | – | – | – | – | – | – | 8 | 8 | 8 | ||
| u | max | UNC | 0.100 | 0.111 | 0.125 | 0.143 | 0.154 | 0.167 | 0.182 | 0.200 | 0.222 | 0.250 | 0.286 | 0.286 | 0.333 |
| UNF | 0.071 | 0.083 | 0.083 | 0.100 | 0.100 | 0.111 | 0.111 | 0.125 | 0.143 | 0.167 | 0.167 | 0.167 | 0.167 | ||
| 8UN | – | – | – | – | – | – | – | – | – | – | 0.250 | 0.250 | 0.250 | ||
|
Screw Thread d |
1-1/2 | 1-5/8 | 1-3/4 | 1-7/8 | 2 | 2-1/4 | 2-1/2 | 2-3/4 | 3 | 3-1/4 | 3-1/2 | 3-3/4 | 4 | ||
| d | 1.5000 | 1.6250 | 1.7500 | 1.8750 | 2.0000 | 2.2500 | 2.5000 | 2.7500 | 3.0000 | 3.2500 | 3.5000 | 3.7500 | 4.0000 | ||
| PP | UNC | 6 | – | 5 | – | 4-1/2 | 4-1/2 | 4 | 4 | 4 | 4 | 4 | 4 | 4 | |
| UNF | 12 | – | – | – | – | – | – | – | – | – | – | – | – | ||
| 8UN | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | 8 | ||
| u | max | UNC | 0.333 | – | 0.400 | – | 0.444 | 0.444 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 | 0.500 |
| UNF | 0.167 | – | – | – | – | – | – | – | – | – | – | – | – | ||
| 8UN | 0.250 | 0.250 | 0.250 | 0.250 | 0.250 | 0.250 | 0.250 | 0.250 | 0.250 | 0.250 | 0.250 | 0.250 | 0.250 | ||
Advantages of High Tensile PTFE/Xylan/Teflon Coated Stud Bolts
- High tensile, sturdy and durable
- Acid and alkali corrosion resistance
- Anti-high and low temperature
Why Choose KENENG As Your Manufacturer for High Tensile PTFE/Xylan/Teflon Coated Stud Bolts
1. KENENG has complete lathes, punches and thread rolling machines. Production and testing of parts can be carried out. We have excellent quality inspection capability: we can provide salt spray, film thickness and various inspection reports.
2. We have specialized designers and production personnel and complete production lines.
3. We produce a wide range of products at reasonable prices and ensure product quality.
