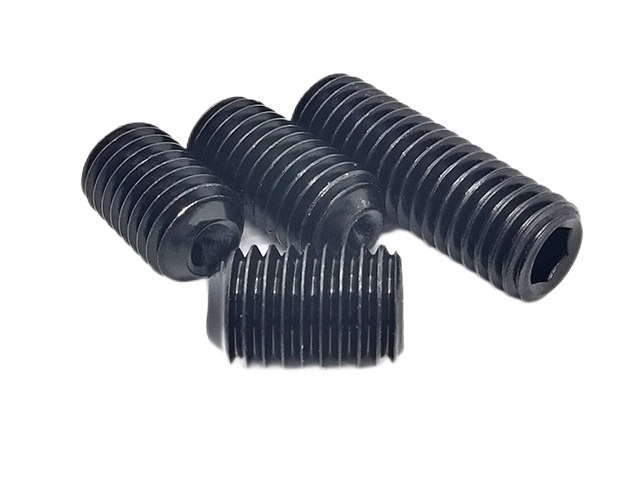

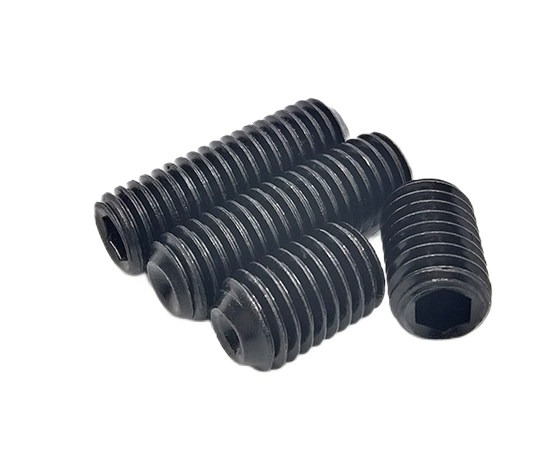

Set Screw


  • Size: M2-M20
  • Material: Carbon Steel, Stainless steel
  • Grade: 8.8, 10.9, 12.9. A2-70, A4-70
  • Finish: Black oxide
  • Standard: DIN916
  • Cone point set screw can be customized

Are You an OEM Manufacturer?

Yes

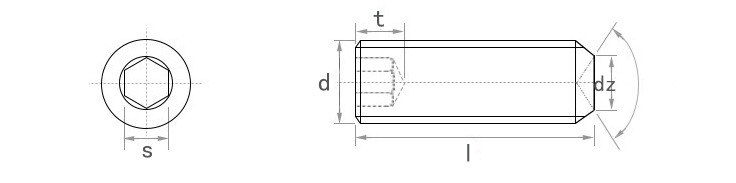

Specifications of Set Screw

Specifications of Set Screw
Thread specificationps
dpitchNominalmaxmin
M1.60.35mm0.7mm0.724mm0.711mm
M20.4mm0.9mm0.902mm0.889mm
M2.50.45mm1.3mm1.295mm1.27mm
M30.5mm1.5mm1.545mm1.52mm
M40.7mm2mm2.045mm2.02mm
M50.8mm2.5mm2.56mm2.52mm
M61mm3mm3.08mm3.02mm
M81.25mm4mm4.095mm4.02mm
M101.5mm5mm5.095mm5.02mm
M121.75mm6mm6.095mm6.02mm
M142mm6mm6.095mm6.02mm
M162mm8mm8.115mm8.025mm
M182.5mm10mm10.12mm10.03mm
M202.5mm10mm10.12mm10.03mm

Advantages of Set Screw


  1. Standard hexagon socket, not easy to slip when installing, inside and outside is smooth without burr.
  2. Advanced automation equipment production technology, screw section smooth, deep thread, uniform force, thread more solid.

Materials we can use on Set Screw

carbon steel

Carbon Steel

Carbon Steel KENENG International manufacture…
