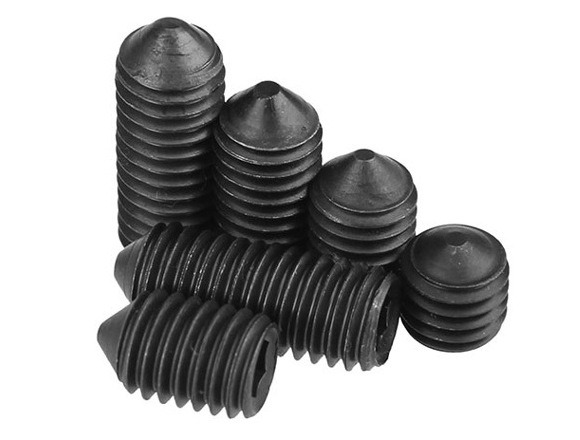

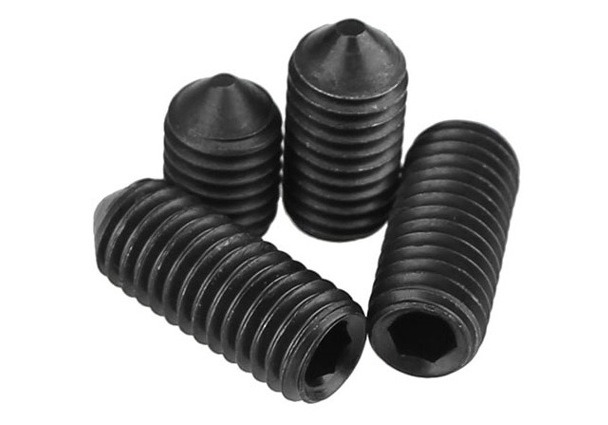

Custom Set Screw Cone Point


  • Size: M2-M20
  • Material: Carbon Steel, Stainless steel, Copper/brass
  • Grade: 8.8, 10.9, 12.9. A2-70, A4-70
  • Finish: Black oxide, galvanized, Nickel plated
  • Standard: DIN914, GB/T 78, ISO4027 , DIN553, GB71, ISO7434.

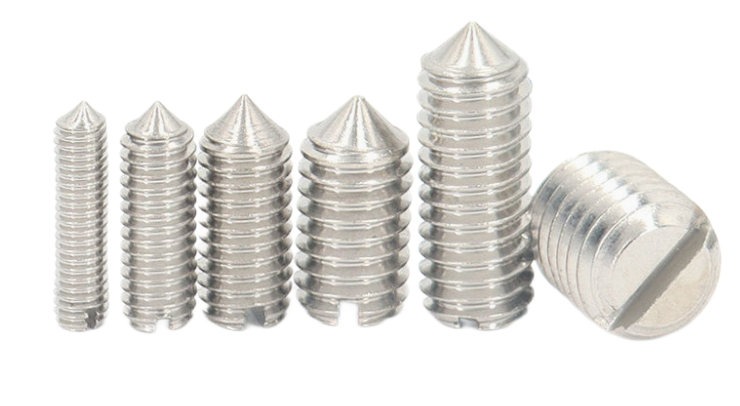

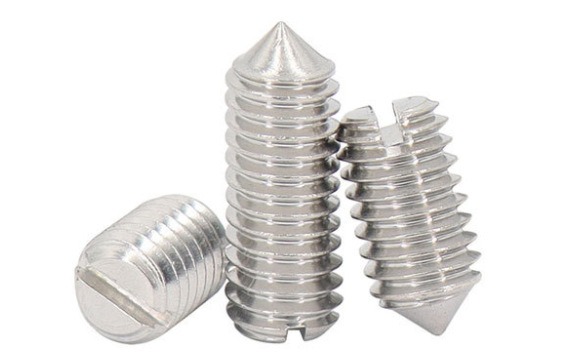

  • Cross/slot drive can be customized.

Are You an OEM Manufacturer?

Yes

Specifications of Set Screw Cone Point

Specifications of Set Screw Cone Point
Nominal diameterpitchdtssst
dpmaxNominalmaxminmin
M1.60.35mm0.4mm0.7mm0.724mm0.71mm0.7mm
M20.4mm0.5mm0.9mm0.913mm0.887mm0.8mm
M2.50.45mm0.65mm1.3mm1.3mm1.275mm1.2mm
M30.5mm0.75mm1.5mm1.58mm1.52mm1.2mm
M40.7mm1mm2mm2.08mm2.02mm1.5mm
M50.8mm1.25mm2.5mm2.58mm2.52mm2mm
M61mm1.5mm3mm3.08mm3.02mm2mm
M81.25mm2mm4mm4.095mm4.02mm3mm
M101.5mm2.5mm5mm5.14mm5.02mm4mm
M121.75mm3mm6mm6.14mm6.02mm4.8mm
M162mm4mm8mm8.175mm8.025mm6.4mm
M202.5mm5mm10mm10.175mm10.025mm8mm

Advantages of Custom Set Screw Cone Point

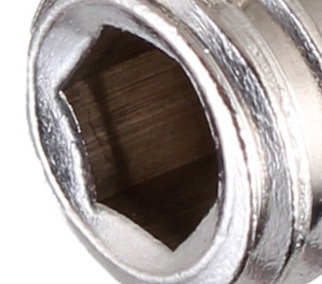

  1. Standard hexagon socket, not easy to slip when installing, inside and outside is smooth without burr.

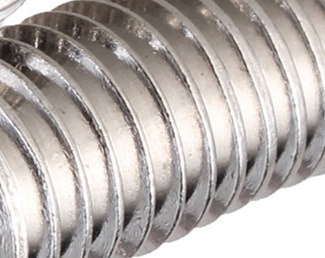

  2. Advanced automation equipment production technology, screw section smooth, deep thread, uniform force, thread more solid.

Why Choose KENENG Custom Set Screw Cone Point

KENENG’s monthly production capacity exceeds 10 million pieces.

We have specialized designers and production personnel and complete production lines.

We produce a wide range of products at reasonable prices and ensure product quality.

Materials we can use on Custom Set Screw Cone Point
