How to Inspect Stamping Parts?

Stamping parts are used in various industries such as automotive, electronics, and construction. These parts are made by using a stamping press, which applies pressure on the metal sheets to produce the desired shape. Stamping parts are used in various products, including automotive parts, electronic components, and even household appliances. The accuracy and quality of these parts are essential for their performance, and therefore, inspection of these parts is critical. In this article, we mainly introduce how to inspect stamping parts. Here are commonly used methods to inspect stamping parts.

Touch Inspection Of Stamping Parts

Touch inspection is a basic method of inspecting stamping parts. In this method, the inspector uses their sense of touch to feel the surface of the part. The inspector checks for any roughness, burrs, or other defects that can be felt by touch. This method is useful for identifying surface defects that are not visible to the naked eye. Touch inspection is also useful for detecting any warping or bending in the part.

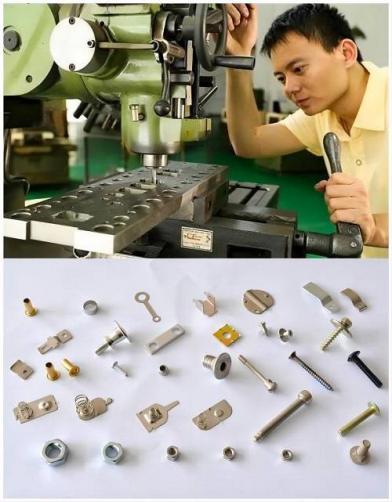

stamping parts inspection

Oilstone Grinding For Removing Defects Of Stamping Parts

Oilstone grinding is a method of removing burrs and other surface defects on stamping parts. In this method, an oilstone is used to grind the surface of the part. The oilstone is a type of sharpening stone made of silicon carbide or aluminum oxide. The oilstone is rubbed against the surface of the part to remove any roughness or burrs. This method is useful for smoothing out any rough edges or burrs that may affect the performance of the part.

Flexible Gauze Grinding For Removing Defects Of Stamping Parts

Flexible gauze grinding is another method of removing burrs and other surface defects on stamping parts. In this method, a flexible gauze abrasive is used to grind the surface of the part. The flexible gauze abrasive is made of nylon fibers coated with abrasive particles. The flexible nature of the abrasive allows it to conform to the shape of the part, making it useful for grinding complex shapes. This method is useful for removing any surface defects that may be difficult to remove using other methods.

Oil Coating Inspection Of Stamping Parts

Oil coating inspection is a method of inspecting the surface of stamping parts for any defects in the oil coating. In this method, a thin layer of oil is applied to the surface of the part. The inspector then checks for any defects in the oil coating, such as bubbles or uneven coverage. This method is useful for ensuring that the oil coating is evenly applied and free from defects, which can affect the corrosion resistance of the part.

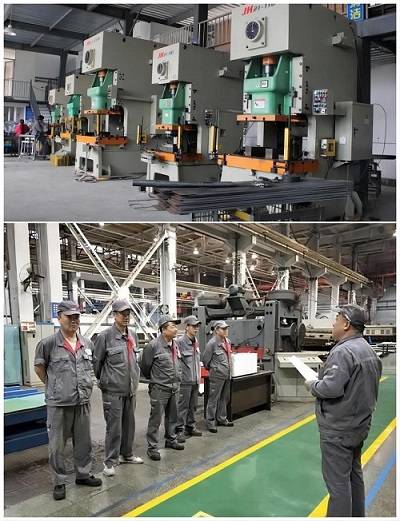

stamping parts quality control

Visual Inspection Of Stamping Parts

Visual inspection is a method of inspecting stamping parts using the naked eye. In this method, the inspector visually checks the surface of the part for any defects, such as scratches, dents, or other surface imperfections. This method is useful for detecting any surface defects that may affect the performance or appearance of the part. Visual inspection is the most common method of inspecting stamping parts.

Checking Tools Inspection Of Stamping Parts

Checking tools inspection is a method of inspecting stamping parts using specialized measuring tools. In this method, the inspector uses tools such as micrometers, calipers, and gauges to measure various dimensions of the part, such as length, width, and thickness. The inspector then compares these measurements to the specifications provided by the customer or the design engineer. This method is useful for ensuring that the part meets the required specifications and tolerances.

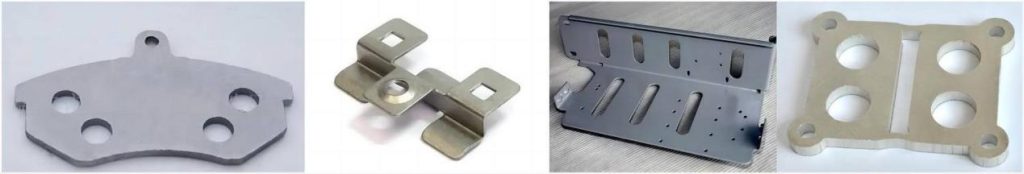

custom stamping parts

Conclusion

In summary, inspection of stamping parts is crucial for ensuring their quality and performance. There are various methods of inspecting stamping parts, each with its advantages and limitations. By using the appropriate inspection method and taking preventive measures, stamping parts can be produced to the highest standards of quality and performance. If you are looking for a manufacturer of customized stamping parts, KENENG can deliver you high quality products.
