6 Key Points to Know CNC Surface Finish Comprehensively
In modern manufacturing, CNC machining is a backbone technology for the production of precision parts. The CNC surface finish directly affects the functional performance, life cycle, and appearance of a part. This article provides a technical and professional analysis of the importance of CNC surface finish, categories, factors affecting it, and applications, helping you understand how to choose an appropriate surface treatment solution.
Table of Contents
Part 1. What is CNC Surface Finish?
CNC surface finish refers to the fineness or roughness of a workpiece’s surface as it is produced during machining on a CNC machine. It not only determines the look of the piece but also affects friction, wear, and assembly accuracy. Surface finish is usually quantified in terms of the Ra value (arithmetical average roughness), with smoother surfaces having lower Ra values.
Surface finish quality is especially important to industries such as aerospace, medical, automotive, and electronics where minor surface imperfections can influence functionality, durability, and overall user satisfaction. It is good surface finish that makes parts function reliably and maintain their designed accuracy over a long time.

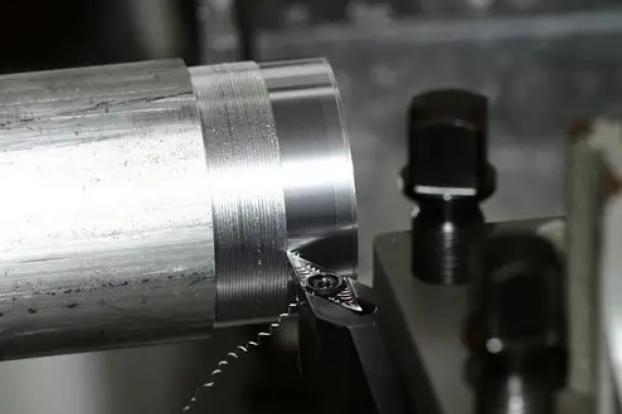

Part 2. Why CNC Surface Finish Matters?
CNC surface finish plays a significant role in determining the overall performance and quality of CNC machined parts. It not only defines the look of a part but also its performance, longevity, and compatibility with other parts. A controlled surface finish ensures parts function smoothly, reduces wear and tear, and maintains accuracy over time.
Functionality
Fine surface finishes reduce friction, improve sealing performance, and enhance wear resistance. They are especially important for precision parts such as mechanical transmission components and hydraulic assemblies, which rely on smooth surfaces to minimize energy loss and prevent premature wear. With the right surface finish, machines can maintain reliable efficiency at any operating speed.
Aesthetics
Surface finish affects the look and touch of products directly, especially in consumer electronics, automotive interior trim, and home appliances. Smooth, even surfaces are seen as an indicator of superior craftsmanship and enhance the user experience, which enhances the overall perceived value of the product.
Performance and Longevity
Parts with low surface roughness experience reduced stress concentrations, reducing fatigue failure and elevating service life. Proper surface finish not only improves mechanical performance but also ensures longevity in demanding applications, making it a critical component in high-precision industries like aerospace, medical, and electronics.
Part 3. Common Types of CNC Surface Finish
CNC surface finish relies very much on machining and post-processing. Making the correct type is crucial to meet functional and cosmetic requirements.
As-Machined Finish
It is the machine surface directly created by CNC machining, as a matter of course between 3.2μm and 6.3μm Ra value. It is usable in situations where functionality is taken into consideration rather than appearance, such as internal mechanical components or structural members.
Bead Blasting
Bead blasting utilizes extremely fine abrasive particles that texture the surface evenly and provide it with a matte finish. It is typically utilized on decorative parts or elements where an even, non-reflective surface is needed.

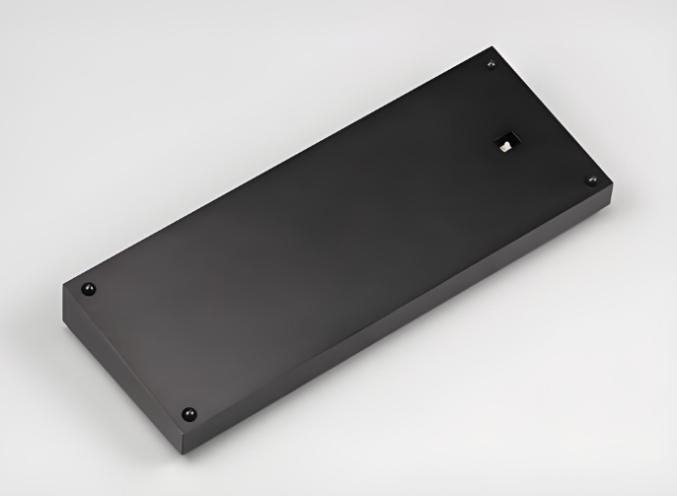

Anodizing
Anodizing refers to the process of aluminum surface oxidizing for better corrosion protection. It also allows for color personalization, providing both cosmetics and strength, and is thus commonly employed in electronics, automotive, and architecture.
Powder Coating
Powder coating creates a hard, pigmented finish that is wear-resistant and aesthetically pleasing. The finish is in demand on electronic enclosures, industrial components, and outdoor equipment due to its decoration and protection.
Polishing
Polishing produces the mirror finish with Ra values of 0.2μm or less, which is most suitable for optical instruments, high-end medical instruments, and decorations. It enhances appearance and surface smoothness and reduces friction in functional devices.
Electroplating
Electroplating deposits a thin layer of metal onto the surface to provide wear and corrosion resistance with visual attractiveness. The most popular metals used are chrome, nickel, and gold, and thus it is used for both functional and decorative purposes.
Brushing
Brushing creates a linear, textured surface by laying down fine abrasives under high directional control. It is the best option for a high-gloss, modern finish, perfectly applicable to consumer electronics, kitchen appliances, and panel decoration, where form and protection of the functional surface are desired.
CNC Surface Finish vs. Roughness Comparison Table
| Machining / Treatment Method | Typical Ra Value (μm) | Characteristics |
| As-Machined | 3.2 – 6.3 | Functional, visible cutting marks |
| Bead Blasting | 1.6 – 3.2 | Matte finish, decorative |
| Anodizing | 0.8 – 3.2 | Corrosion-resistant, can be colored |
| Polishing | 0.2 – 0.8 | Aesthetic, precise high-gloss mirror finish |
| Electroplating | 0.4 – 1.6 | Corrosion-resistant, decorative, wear-resistant |
| Brushing | 0.8 – 3.2 | Linear texture, metallic appearance |

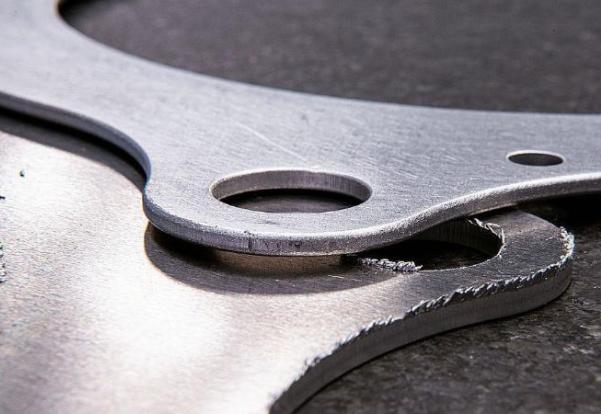

Part 4. Factors Affecting CNC Surface Finish
Opting for a perfect CNC surface finish requires looking into a variety of intertwined factors, ranging from the material properties and production processes, all the way to the finishing processes and measuring techniques, in an attempt to produce parts of functional as well as aesthetical significance. Information regarding all these aspects ensures that parts are not only functional but also acceptable aesthetically.
Material Type
Different materials such as steel, stainless steel, aluminum, titanium, and engineering plastics respond to cutting in different ways. Stronger materials are hard to cut with standard tools and parameters without resulting in oversized tool wear and surface damage. Weaker materials are prone to burr or deformation on the final surface.
Cutting Tools and Parameters
Surface finish directly relies on cutting tool sharpness, cutting speed, feed rate, and depth of cut. Dull tools or inappropriate tools may generate poor surfaces, chatter marks, or incorrect finishes. Optimal machining parameter setting for the material and desired Ra value must be ensured to create smooth, accurate surfaces.
Cooling and Lubrication
Accurate use of coolants and lubricants controls cutting temperatures, reduces friction, and limits surface blemishes to a minimum, like burn marks or smearing. Proper cooling also prolongs tool life and provides quality surfaces throughout production.
Post-Processing Techniques
Even following precision CNC machining, final processes like bead blasting, polishing, anodizing, or electroplating may be employed to further enhance surface smoothness and aesthetics. Not only do these processes enhance appearance but also raise corrosion resistance, wear resistance, and overall durability.

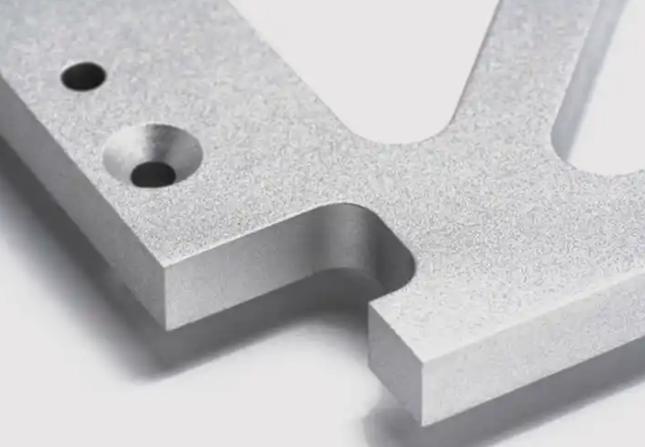

Part 5. Uses of CNC Surface Finish in Various Industries
CNC surface finishing is critical in fulfilling the unique functional, visual and durability demands of different industries. Surface finishing enhances performance, service life and overall user experience – increasing performance while simultaneously improving performance, service life and user satisfaction.
Automotive Components
Automotive parts like gears, shafts and bearings demand wear-resistant surfaces with pleasing aesthetics for smooth performance and long term sustainability. Better finishes reduce wear and friction to provide smooth operation while improving longevity of performance. Additionally, aesthetic surfaces on parts exposed in the final vehicle help to enhance the overall vehicle’s appearance.
Medical Devices
To be effective and safe in medical applications, equipment such as implants and medical components require surfaces with very smooth finishes that resist bacteria adhesion and make cleaning easy – providing safe and reliable performance that ensures safe operations. A high surface finish helps eliminate bacteria adhesion for easy cleanup while offering safe operation which are critical features in this sector of technology.
Aerospace
Aerospace depends heavily on surface finishing techniques that provide low friction and high strength surfaces to maximize fuel economy, wear reduction, and mechanical reliability in flight conditions. Optimized surface finishing provides improved fuel economy, reduced wear rates and maximized mechanical reliability under flight conditions.
Consumer Electronics
Laptops, phones, and wearables usually have brushed or polished metal top surfaces. Smoothly finished surfaces not only provide a premium look and feel but also scratch resistance and wear protection, which add to appearance and durability.

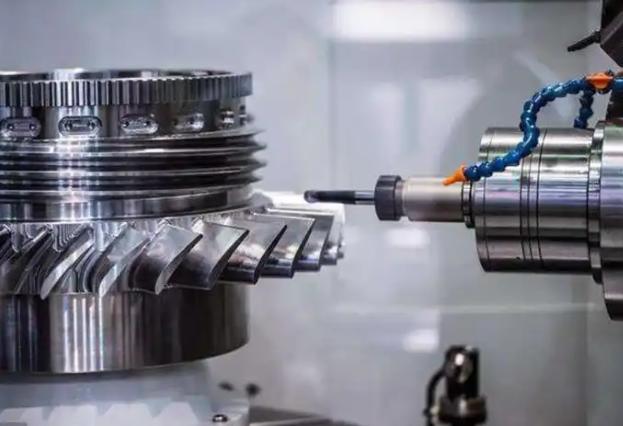

Part 6. How to Choose the Best CNC Surface Finish?
Selecting the right CNC surface finish requires balancing industry needs, functional requirements, and practical considerations such as cost and time to produce. An informed choice provides the final product with a stable operation while meeting aesthetic demands.
Industry Requirements
Each industry has its own surface finish specifications. Medical devices will demand high-precision mirror finishes for clean, easy-to-clean surfaces. Automotive components need wear-resistant as well as aesthetically pleasing finishes like polished shafting or coated gears. Aerospace components need high-strength, low-friction finishes for optimal mechanical performance and minimum energy loss under harsh conditions.
Functional Needs
Consider which performance characteristics are of greatest concern for the part. Corrosion resistance, wear resistance, sealing capability, or appearance might be of greatest concern depending on the application. The choice of a surface finish that satisfies these functional needs holds out the promise of durability and reliability.
Based on Cost and Lead Time
Precision surface treatments like polishing or electroplating usually come at greater costs and longer production cycles. Budget and delivery limitations must be balanced against the desired quality. At times a minor decrease in Ra value or another post-process may provide the best compromise between performance and efficiency.
By considering these factors with close attention, producers can select a CNC surface finish that meets industry standards, functional requirements, and manufacturing limitations in order to create the finished piece that operates successfully yet is aesthetically and structurally sound.
Final Thoughts
CNC surface finishing not just determines the functionality and life of a part but also decides the look and value perception of the product. Choosing an efficient, high-precision CNC machining supplier and appropriate surface treatment process is very important to achieve part quality. Optimisation of machining parameters and post-processing methods can give high-quality components that are rich in both functionality and appearance.
If you have need of CNC machining services with better surface finish and high quality, do not hesitate to contact KENENG, a professional CNC machining service company.
