A Guide to Know Cell Battery Holder – Types, Advantages, and Applications

Cell battery holders play a crucial role in the world of electronics, providing a secure and reliable connection for cylindrical cell batteries. Whether you’re using AA, AAA, or other similar-sized batteries, understanding cell battery holders is essential for ensuring proper power supply in your devices. In this comprehensive guide, we will delve into the types, advantages, and applications of cell battery holders, shedding light on their significance in various industries and everyday electronics.

cell battery holders

Types of cell battery holders

Various types of cell battery holders are available to accommodate different cylindrical cell batteries. Here are some common types:

  • Single Cell Battery Holders: These holders are designed to hold and connect a single cylindrical cell battery, such as AA or AAA. They typically have a compact design and may include features like snap-on lids or sliding compartments for easy battery insertion and removal.
  • Multiple Cell Battery Holders: These holders are designed to hold and connect multiple cylindrical cell batteries. They can accommodate two or more batteries and are commonly used in devices that require higher voltage or longer battery life. Multiple cell holders can be configured in series (to increase voltage) or in parallel (to increase capacity).
  • Coin Cell Battery Holders: Coin cell battery holders are specifically designed for small, button-shaped batteries, such as CR2032 battery holders or CR2025 battery holders. They often have a spring-loaded or pressure-plate mechanism to hold the coin cell battery in place securely.
  • Battery Holder Clips: These holders feature spring-loaded clips that securely grip cylindrical cell batteries. They provide a flexible and adjustable way to hold and connect batteries and are often used in prototyping or DIY electronics projects.
  • Battery Holder Sockets: These holders are designed to hold and connect cylindrical cell batteries with socket-style terminals. The battery is inserted into the socket, ensuring a reliable electrical connection. They are commonly used in applications where frequent battery replacement is required.
  • PCB-Mounted Battery Holders: These holders are designed to be mounted directly on a printed circuit board (PCB). They have solderable pins or terminals that allow for easy integration into electronic circuits. PCB-mounted holders provide a compact and secure battery connection.
  • Vertical or Horizontal Battery Holders: These holders come in both vertical and horizontal orientations, allowing for flexibility in device design and space utilization. Vertical holders are commonly used in devices where batteries are stacked, while horizontal holders are suitable for devices with side-by-side battery placement.

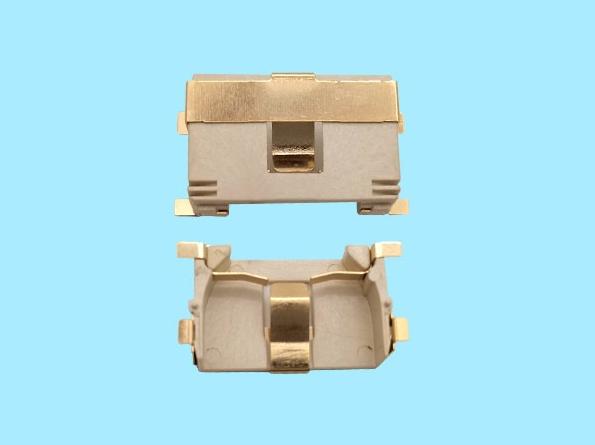

CR2032 Battery Holder KY-10024-2-1

Advantages of Cell Battery Holders

  • Convenience: Cell battery holders offer convenient battery replacement and accessibility. They allow for easy insertion and removal of cylindrical cell batteries, eliminating the need for soldering or other complex battery connection methods.
  • Versatility: Cell battery holders are available in various sizes and configurations, accommodating different types of cylindrical cell batteries. This versatility enables compatibility with a wide range of electronic devices and applications.
  • Secure Connection: Cell battery holders provide a secure and stable connection for cylindrical cell batteries. The holders ensure proper alignment of the battery terminals with the contacts or springs, minimizing the risk of accidental disconnection or poor electrical contact.
  • Electrical Performance: Good electrical contact is crucial for optimal device performance. Cell battery holders maintain consistent contact between the battery terminals and the device, ensuring reliable power delivery and minimizing voltage drops or interruptions.
  • Safety Features: Many cell battery holders come with built-in safety features. These can include polarity protection to prevent reverse battery insertion, insulation to reduce the risk of short circuits and secure locking mechanisms to prevent accidental battery ejection.

Applications of Cell Battery Holders

  • Consumer Electronics: Cell battery holders are widely used in various consumer electronic devices, such as remote controls, flashlights, portable audio players, toys, and digital cameras. They provide a convenient and reliable power source for these devices.
  • Medical Devices: Many medical devices, including blood glucose monitors, thermometers, and portable medical instruments, utilize cell battery holders. The holders ensure easy battery replacement and help maintain reliable power in critical healthcare applications.
  • Industrial and Manufacturing Equipment: Cell battery holders find applications in industrial equipment, manufacturing tools, and machinery. These holders provide a secure and easily replaceable power source, contributing to the efficient operation and maintenance of such equipment.
  • Automotive Electronics: Cell battery holders are used in automotive applications for devices like key fobs, tire pressure monitoring systems, and portable navigation devices. They enable convenient battery replacement in these automotive electronic components.
  • DIY Projects and Prototyping: Cell battery holders are commonly used in do-it-yourself (DIY) electronics projects and prototyping. They provide a flexible and removable power source, allowing for easy experimentation and modification of circuits.
  • Backup Power Solutions: In certain applications, such as backup power systems or emergency lighting, cell battery holders can be employed to facilitate quick battery replacement and ensure an uninterrupted power supply during power outages or critical situations.

It’s important to note that the availability and specific types of cell battery holders may vary based on the battery size, manufacturer, and intended application. The versatility and convenience offered by cell battery holders make them suitable for a broad range of electronic and electrical applications. If you want to know more detailed information about the cell battery holder please feel free to contact us. KENENG welcomes your inquiries.
