CNC Aluminum Machining: 6 Key Points You Need to Know
CNC aluminum machining has quickly become an indispensable process across a range of industries. Due to its lightweight yet strong properties, machinability, and lightweight material, it enables production of components with superior precision, visual aesthetic, and functional reliability, from aerospace through consumer electronics and automotive industries, as well as medical devices, increasing product performance while simultaneously driving economic gains.
In this article, we will provide a comprehensive exploration of CNC aluminum machining, giving you a deeper understanding.
Table of Contents

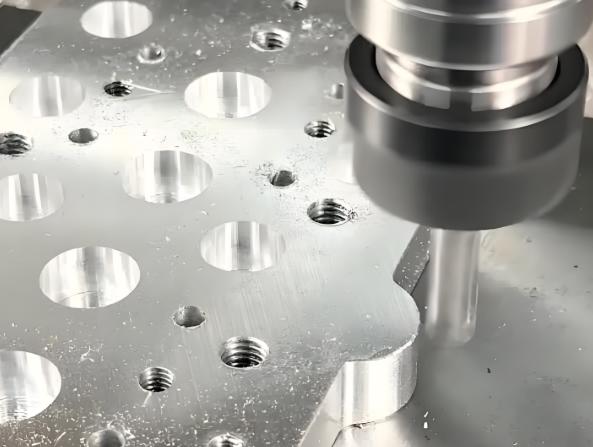

Part 1. What is CNC Aluminum Machining?
CNC machining is a method whereby computer instructions direct machine tools to execute precise cutting and shaping processes. When the material involved is aluminum, the process is termed CNC aluminum machining.
Aluminum, however, has become a CNC machining material because of the following:
- Light weight & low density: Aluminum is lighter than steel and is used in industries where reduction in weight is critical such as aerospace, automotive, and robotics.
- Good mechanical properties: Aluminum is strong yet tough, making it relatively easy to handle.
- High machinability: Aluminum can be shaped to complex geometries and can receive high quality surface finishes which is ideal for complex structures and precision parts.
- Corrosion resistance: Aluminum is naturally resistant to oxidation, anodizing enhances this property making it even more useful in aggressive environments.
Aluminum is strong compared to steel and more reliable than plastics. This is what makes CNC Aluminum Machining the preferred choice in the production of high precision, high performance parts across various industries.
Part 2. Common Aluminum Alloys for CNC Machining
Multiple series of aluminum alloys vary in terms of chemical composition, physical properties and mechanical behavior; as a result, each has its own set of strengths and weaknesses when CNC machining them.
While some varieties excel in providing strength and durability for applications that demand them, others excel with light weight construction or corrosion resistance or cosmetic appearance, as is true for their respective CNC machining applications.
For easier comparison, this table summarizes the primary properties, benefits, and applications of various aluminum alloys for CNC machining.
| Alloy Series / Grade | Key Features | Advantages | Typical Applications |
| 1 Series (Pure Aluminum, e.g., 1350) | Aluminum content >99%, low strength | Excellent conductivity and thermal conductivity; strong corrosion resistance | Electrical components, chemical equipment |
| 2024 (2 Series) | Al-Cu alloy, high strength | Excellent fatigue resistance | Aerospace structures, automotive parts |
| 3003 (3 Series) | Al-Mn alloy, medium strength | Good corrosion resistance, excellent machinability | Building panels, decorative parts |
| 4032 (4 Series) | Al-Si alloy, high wear resistance | Low thermal expansion | Automotive pistons, engine components |
| 5052 (5 Series) | Al-Mg alloy, medium strength | Outstanding corrosion resistance, good weldability | Marine parts, storage tanks, outdoor equipment |
| 5083 (5 Series) | High-magnesium aluminum alloy | Excellent seawater resistance, higher strength | Ships, pressure vessels |
| 5754 (5 Series) | Balanced corrosion resistance and strength | Good fatigue resistance | Automotive components, fuel tanks |
| 6061 (6 Series) | Al-Mg-Si alloy, most common | Balanced strength, toughness, machinability, and cost | Mechanical parts, electronic housings |
| 6063 (6 Series) | Suitable for extrusion, smooth surface | Excellent anodizing properties | Architectural profiles, decorative parts |
| 6082 (6 Series) | High-strength 6xxx series | Excellent mechanical properties | Load-bearing structural parts |
| 7075 (7 Series) | Al-Zn-Mg alloy, very high strength | Comparable to steel, very hard | Aerospace, racing, high-end bicycle components |
| 7475 (7 Series) | Upgraded version of 7075 | Higher strength, better toughness | Aerospace structures |
| Al-Li Alloy (8 Series, Advanced) | Lightweight high-performance material | Low density, high rigidity | Aerospace, military equipment |
Part 3. CNC Aluminum Machining Processes
CNC Aluminum machining utilizes a number of processes to generate complex structures and high-precision components. Each process has unique advantages and applications:
1. CNC Milling
CNC milling is ideally suited to mill flat surfaces with intricate features, contours, and other intricate 3D shapes. Spinning cutting tools chip away little by little to achieve precise measurements. CNC milling is widely utilized to machine components such as brackets, housings, and molds where precision and surface quality are of paramount significance.
2. CNC Turning
CNC turning is predominantly used on cylindrical or axis-symmetrical parts. The workpiece is rotated as material is being cut away by a cutting tool in the desired profile. The process is best suited for producing shafts, rods, bushings, and other round components with close tolerances.
3. 5-Axis CNC Machining
5-axis CNC machines can move the cutting tool on five axes simultaneously, allowing very intricate geometries to be machined in a single setup. It is time-saving in production and improves precision for parts having numerous angled surfaces. 5-axis is employed extensively in aerospace, automotive, and high-end engineering fields, such as in turbine components, airplane structure components, and high-end robots.
4. Surface Finishing
Surface finishing following machining enhances the strength and looks of aluminium components. Some common finishes include:
- Anodizing: A hard oxide finish that provides corrosion resistance and allows for bright coloring.
- Sandblasting: Provides a dull finish and removes minute surface imperfections.
- Electroplating: Metal layer deposition for functional or aesthetic purposes.
- Polishing: Provides a shiny, aesthetic finish for looks alone.
For Example: Phone cases made of aluminum are sometimes CNC machined and subsequently anodized to achieve both a sleek appearance as well as scratch resistance. This two-stage process will yield a finished product which is functional as well as aesthetically pleasing.

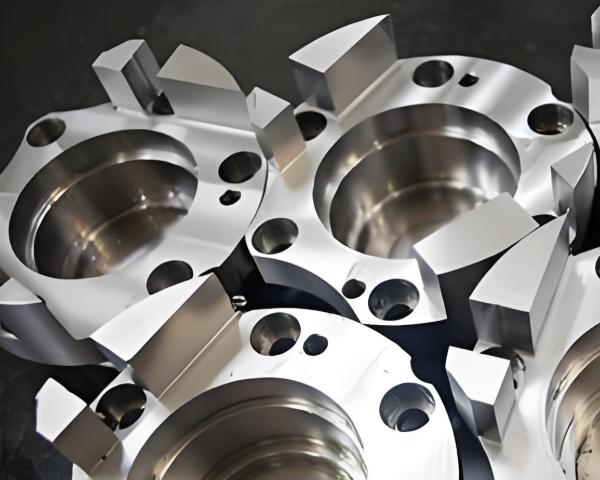

Part 4. How to Manufacture CNC Aluminum Machining Parts?
CNC machining aluminum parts is not a question of having better machines but proper process planning and long-term operating experience. The most essential steps and considerations are:
1. Design and Material Selection
During the design and material choice stage, choose the appropriate aluminum alloy based on product requirements, such as 6061, 7075, 2024, or 5052. Design the part in CAD/CAM software, taking into account wall thickness, location of holes, and tolerances.
Structure optimize to reduce machining difficulty and cost, without unnecessary complications due to thin walls or abrupt internal radii.
2.Fixturing and Workholding Solutions
Clamp the aluminum workpart securely before beginning machining with rigid fixtures so it will not shift or vibrate during cutting.
When working with larger or thin-walled parts, use segmented clamping or insert supports so as to prevent deformation while improving accuracy and end product quality.
3. Cutting Tools and Parameters
Use high-speed steel (HSS) or carbide cutting tools which are suitable for machining aluminum. Establish cutting speed, feed rate, and depth of cut according to the material characteristics in order to maximize precision as well as surface finish.
For high-strength aluminum alloys like 7075, reduce the cutting speed appropriately to avoid burrs or heat buildup and preserve the structural integrity of the part.
4. Process Monitoring of Machining
Live monitor the CNC machine and control parameters accordingly. For hard parts, employ a stepwise machining approach: rough machining first and then semi-finishing and finishing to meet design requirements for part shape and size.
- Surface Finishing
After machining is complete, surface treating processes like anodizing, sandblasting, polishing or plating may be performed as required to improve corrosion protection and wear protection for consistent long-term performance.
The treatments not only improve appearance, but they can also inhibit corrosion damage as well as wear-and-tear wear damage for long-term performance durability.
6. Inspection and Testing Services
Utilize a Coordinate Measuring Machine (CMM) to verify dimensional accuracy. Leverage its strong capabilities such as hole position measurement, wall thickness measurement, and flatness measurement to ensure that parts are to design specifications.
High-precision CNC aluminum parts may be achieved by manufacturers via cautious design, best machining conditions, and stringent quality control procedures.

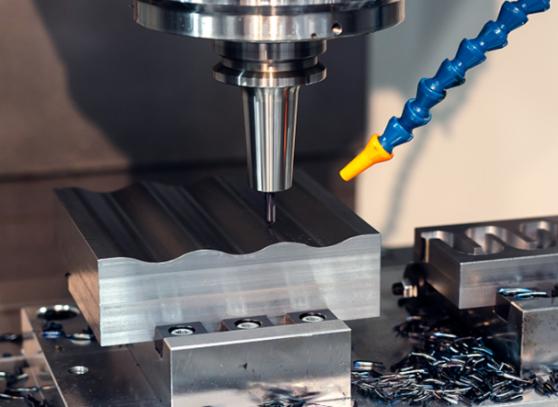

Part 5. Key Benefits of CNC Aluminum Machining
As compared to other materials, CNC aluminum machining possesses some significant benefits that make it a go-to option in contemporary manufacturing:
1. High Precision
CNC machining of aluminium has tolerances as low as ±0.01 mm so that even the most intricate and detailed parts fit precise dimensional and functional requirements. Such precision is necessary where aerospace, electronics, and medical devices uses rely on precision for functionality and reliability.
2. Lightweight
Aluminum’s lower density makes it much lighter than steel, enabling designers to construct lightweight structures without compromising strength. This feature can be particularly advantageous in industries like aerospace, automotive and robotics where lightweightness increases fuel efficiency, performance and handling capabilities.
3. High Thermal Conductivity
Aluminum is a heat conductor and can be applied in efficient heat dissipation parts. CNC aluminum components are applied in heat sinks, electronic enclosures, and LED lighting equipment that protects device performance and lifespan.
4. Cost-Effective
CNC Aluminum achieves cost versus performance in balance, ideal for high-volume production as well as small batch customization. Machinability gives higher cutting speeds and reduced tool wear, reducing costs of production without any loss of quality.
5. Adjustable Surface Finishing
CNC aluminum parts can be supplied in a range of surface finishes to improve appearance, wear resistance, and corrosion resistance.
- Anodizing: An anodizer develops an aesthetic, corrosion-resistant film of varied color on the surface to impart aesthetic and protective qualities.
- Polishing: To give a bright, smooth surface finish for appearance.
- Sandblasting: Sandblasting produces a flat matte surface finish and eliminates tiny surface flaws.
- Electroplating: Used in coating metal items with functional or aesthetic coatings.
CNC aluminum’s many attributes make it the ideal material for making top-of-the-line and attractive parts for every industry.

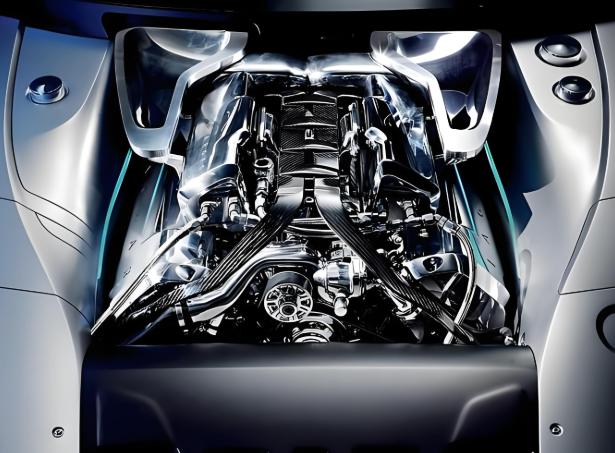

Part 6. Applications of CNC Aluminum Machining
CNC aluminum machining finds applications in nearly every sector of modern manufacturing due to its excellent blend of light weight, toughness, corrosion resistance, and high machinability. A few of the major application areas are:
1. Aerospace
Aluminum alloys are found in aerospace components like wing structures, fuselage frames, brackets, as well as housing. CNC machining causes the components to maintain accuracy and weight – improving flight efficiency and safety at the same time.
2. Automotive Industry
CNC Aluminum is widely used for producing engine components, high-performance vehicle parts, transmission housings and suspension components in the automotive industry. Its weight-to-strength ratio contributes to auto performance, fuel efficiency and overall structure benefits–especially among sports cars and electric vehicles.
3. Consumer Electronics
Aluminum precision-machined is commonly applied to construct smartphone coverings, laptop enclosures, camera and tablet housings. CNC machining provides accurate designs with good surface finishes while anodizing or polishing enhances appearance as well as strength.
4. Medical Equipment
CNC aluminum components are perfect for surgical instrument handles, diagnostic device enclosures and other medical equipment components that need reliable performance under rigorous sterilization processes. Their lightweight yet strong and corrosion resistant qualities ensure maximum precision and sterilization efficiency.
Aluminum has numerous applications in industrial machinery production. From fixtures and molds, to structural support elements and parts of mechanical engineering. Precision and repeatability are ensured through CNC machining – essential for producing automated machinery component production lines and automated machine tooling solutions.
CNC Aluminum has become so widely popular due to the synergy between aluminum alloy performance and CNC’s precision, flexibility, and efficiency – creating the foundation material used in modern production processes.
KENENG: Your Partner for Precision CNC Aluminum Machining
CNC aluminum machining leverages the light weight of aluminum and accuracy of CNC against the production process, and it is a core mainstream manufacturing process. It is widely used in aerospace, automobile, electronics, and medical equipment fields.
With the help of cautious design, best machining parameters, and strict quality check, high-quality aluminum parts can be produced efficiently and with reliability.
Selecting a veteran CNC machining supplier with sophisticated equipment is critical to guarantee the precision, efficiency, and longevity of your parts.
For a trusted CNC Aluminum manufacturing provider, you have KENENG. Get in touch with KENENG today for a professional, tailored solution.
