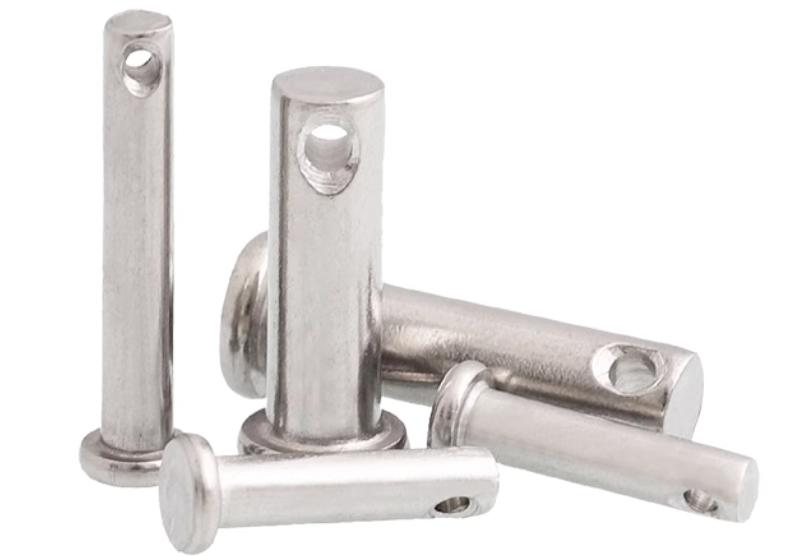

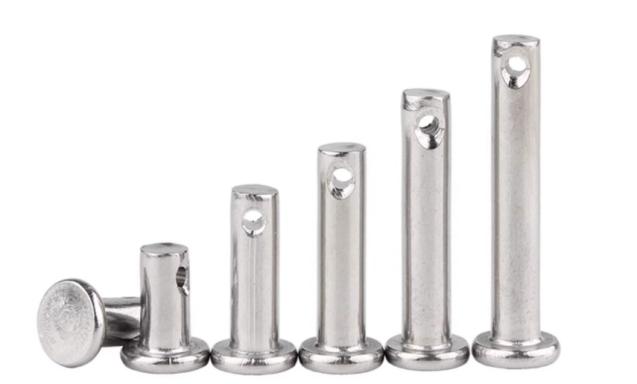

Cylindrical Pin
What is a Cylindrical Pin
A cylindrical pin has a constant diameter, with connections fixed via friction or fitting force to either its cylindrical hole or two side planes. These stable connections often see use when shear or parallel forces are being applied to it, or in situations that call for shear force application or similar types of stress relief.

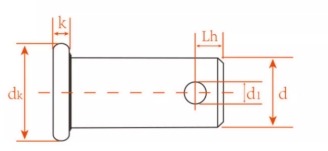

Specifications of a Cylindrical Pin
| unit:mm | ||||||||||||
| d | max | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
| min | 2.94 | 3.925 | 4.925 | 5.925 | 7.91 | 9.91 | 11.89 | 13.89 | 15.89 | 17.89 | 19.87 | |
| dk | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | 22 | 25 |
| min | 4.7 | 5.7 | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 17.57 | 19.48 | 21.48 | 24.48 | |
| k | nominal | 1.5 | 2 | 2.5 | 3 | 3.5 | 4 | |||||
| max | 1.625 | 2.125 | 2.625 | 3.125 | 3.65 | 4.15 | ||||||
| min | 1.375 | 1.875 | 2.375 | 2.875 | 3.35 | 3.85 | ||||||
| d1 | min | 1.6 | 2 | 3.2 | 4 | 5 | 5 | |||||
| max | 1.74 | 2.14 | 3.38 | 4.18 | 5.18 | 5.18 | ||||||
| Lh | min | 1.6 | 2.2 | 2.9 | 3.2 | 3.5 | 4.5 | 5.5 | 6 | 6 | 7 | 8 |
| nominal diameter: | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 | |
Materials of a Cylindrical Pin
Applications of Cylindrical Pin
Application areas for cylindrical pins include machine tool manufacturing, the automotive industry, and aerospace
